CyberData 011049 Installation Quick Reference page 2

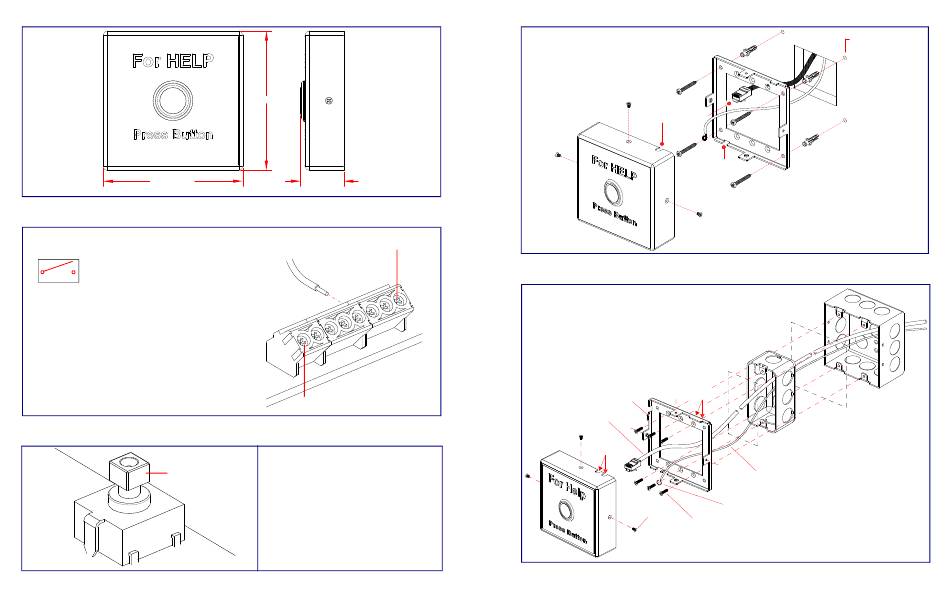

Dimensions
4.528 [115.0]
DIMENSIONS ARE IN INCHES [MILLIMETER]
Terminal Block Connections
Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*
3 4
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground
7 = Remote Switch "A"
8 = Remote Switch "B"
*Contacts 1 and 2 on the terminal block are only for
powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.
RTFM Button
RTFM button (SW1)
© 2022, CyberData Corporation, ALL RIGHTS RESERVED
4.528 [115.0]
1.400 [35.6]
Use a 3.17 mm (1/8-inch) flat blade
screwdriver for the terminal block screws
Wire (IN)
Tin Leads
Approx. 1/4" or
6mm
8
Terminal Block
can accept 16 AWG wire
To announce the device's current IP address:
• Press and release the RTFM button within a five
second window.
Note The device will use DHCP to obtain the new
IP address (DHCP-assigned address or
default to IPv4 Link Local if a DHCP server is
not present).
To restore the device to factory default settings:
• Press and hold the RTFM button for longer than
five seconds until you hear the device announce
that it is restoring the factory default settings.
931549B Quick Reference
Wall Mounting Options
Gang Box Mounting Options
1
Network Cable
(Not Provided)
Quick Reference
121001A
Screw
Accessory Kit
Cable
Entry
Network
Slot
Cable
to J1
Opening
Cable
Slots
Closed
Backplate
Cable
Entry
Wall Cutout
Slot
Ground Wire
(Not Provided)
Pick One of Two or Four
Mounting
Available Mounting Hole
Screw (3x)
for Ground Wire Connection
121002B
Screw
Accessory Kit
Single Gang Box use two
Two Gang Box use Four
931549B © 2022, CyberData Corporation, ALL RIGHTS RESERVED
Pre Drill Holes
on Wall
Wall Cutout
Backplate
Wall Cutout
Backplate accept
Single Gang Box
or Two Gang Box
