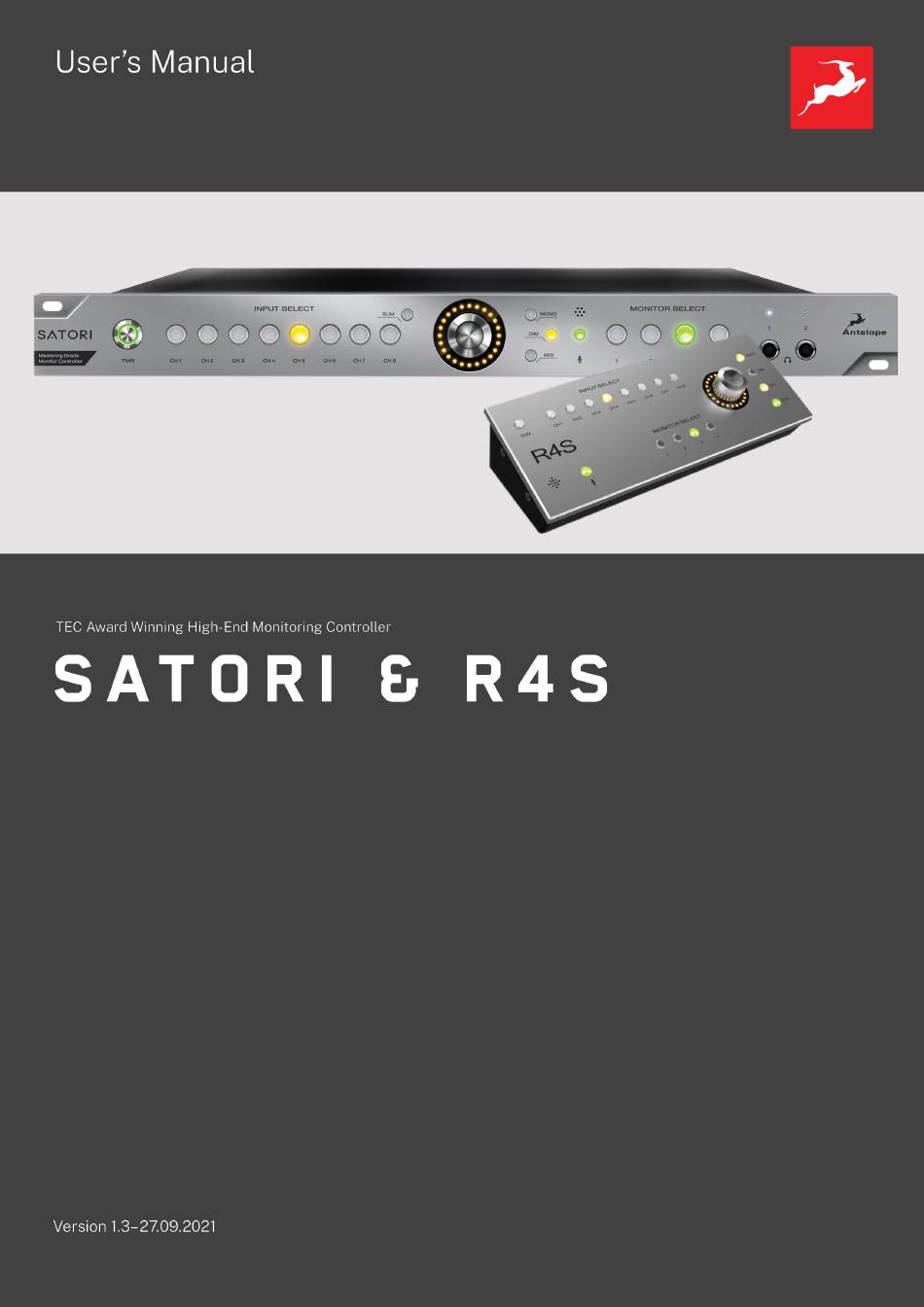

Summary of Contents for Antelope SATORI R4S
-
Page 2: Table Of Contents
BEFORE YOU BEGIN INSTALLATION GUIDE ACTIVATE YOUR PRODUCT WARRANTY FRONT PANELS EXPLAINED Satori REAR PANELS EXPLAINED Satori CONTROL PANEL APPLICATION CUSTOMER SUPPORT INFORMATION MY ANTELOPE AUDIO PRODUCT ISN’T WORKING. LIMITED WARRANTY POLICY SAFETY NOTES TECHNICAL SPECIFICATIONS SATORI & R4S User Manual... -
Page 3: Before You Begin
Satori is a digitally controlled, true analog monitoring and summing system designed for today’s studios. The Antelope Audio Orion32 and Zen Studio interfaces have both been praised for their digital clarity, while maintaining the realism of analog sound. Thanks to advanced circuit design, Satori features the same high level of uncompromising sound quality. -
Page 4: Installation Guide
Best wishes, Team Antelope MANDATORY ONLINE ACTIVATION Please note that the mandatory device activation procedure requires an active Internet connection on your computer. Activating an Antelope device offline is not possible. INSTALLATION GUIDE Satori Step 1: Getting Started Connect the Satori to a power outlet using an AC power cable. Plug in the device to your computer using a USB cable. - Page 5 Antelope ID directly from the application. Fill out the necessary information and click Continue. If you already have an active Antelope ID, click on Use existing Antelope Bear in mind, that your Antelope ID is different and has no relation to your user profile on antelopeaudio.com.
- Page 6 Sign in using your credentials. If you have just created your Antelope ID, do not forget to activate it using the link in the e-mail you have just received. After successfully signing in your Antelope ID, you will be asked to fill in additional information concerning your recent purchase.
-
Page 7: Activate Your Product Warranty
ACTIVATE YOUR PRODUCT WARRANTY You will be required to activate your product warranty from the My Warranty tab in My Antelope Account. To activate your product, click on the text that sends you to the page where you can add a custom warranty. -
Page 8: Front Panels Explained
After successfully completing the process, you can click on View Warranty to see if your file has been uploaded correctly. FRONT PANELS EXPLAINED Satori SATORI & R4S User Manual... - Page 9 1. Power button Toggles Standby/On state. 2. Input select buttons channels 1-8 Input select lets you switch between your desired input source, which will be fed to your selected monitor output. 3. Sum select button The sum select button lets you send your stereo sum to your chosen monitor output. 4.
-
Page 10: R4S
Press to choose between the four monitor outputs. The chosen source will be fed to the selected monitor out. 8. Headphone outputs Two independently assignable headphone outputs (HP1 & HP2), selectable and controllable from the main volume control knob. 1. SUM Select button Press to send the stereo sum to the chosen monitor output. - Page 11 4. Monitor Select buttons 1 - 4 Switch between the four monitor outputs. The chosen source will be fed to the selected monitor out. 5. Rotary control Large stepped relay attenuator for the main monitor output. ● Turn clockwise or counterclockwise to adjust level. ●...
-
Page 12: Rear Panels Explained
REAR PANELS EXPLAINED Satori 1. Mains Power Connection The AEC connector supports a range from ~95-245 V. This lets the device automatically accommodate mains voltage in every country. 2. USB Full-Speed Satori uses an USB connector Type-B and lets users connect to the Windows & macOS Control Panel application. -
Page 13: R4S
5. 4 x Main Stereo Monitor Outputs Four assignable balanced stereo outputs, one over XLR, three over TRS 6. Stereo Sum Output The stereo sum output takes the summing input channels 5-8 and creates a stereo signal output over TRS. 7. -
Page 14: Control Panel Application
5 presets. Click on PRESET 1 - 5 to recall a preset. Ctrl + Click (Win) / Command + Click (Mac) on PRESET 1 - 5 to save into that slot. CUSTOMER SUPPORT INFORMATION Antelope Audio Customer Support can be reached by the following means: Online Visit support.antelopeaudio.com Phone We are there for you around the clock, 21 hours/day, Monday to Friday. -
Page 15: My Antelope Audio Product Isn't Working
Please, don't attempt to send us your device without receiving a RMA number first, as the device will be returned and not serviced. How do I get an RMA number? The Antelope Audio Customer Support team is in charge of issuing RMA numbers. Visit support.antelopeaudio.com and get in touch. - Page 16 The shipping costs are covered by the owner of the product. Antelope Audio will not cover any local customs charges. We recommend using a courier service of your choice (e.g. DHL, UPS, FedEx). The package...
-
Page 17: Limited Warranty Policy
Consumers have the right to choose whether to claim service under the Antelope Audio Limited Warranty or under their consumer law rights. - Page 18 3) to refund the price paid. Should Antelope Audio decide to refund the price paid, it may deduct from the paid Product’s price any damages caused to the Product; where, within fourteen (14) days of the expiration of the warranty period,(i) Antelope Audio has received written notice of any nonconformity;(ii) after Antelope Audio’s written authorization,...
- Page 19 These warranty obligations are conditioned upon the hardware being returned to the original place of purchase, or another place as directed by Antelope Audio, with the original sales receipt attached. You will be required to pay shipping and handling charges for returning the product.
- Page 20 (ii) Products purchased from a person or entity which is not an authorized dealer or re-seller of Antelope Audio; (iii)Product sold “as is” or “with all faults”, to the extent permitted by local law. This warranty is not valid in case any manufacturer label(s), serial numbers, date stamp(s) or warranty sticker(s) has been altered or removed from the Product.
- Page 21 (B2B) / Direct customers of Antelope Audio please email us at techsupport@antelopeaudio.com (ii) A valid proof of purchase is required for RMA processing (i.e. receipt, invoice, etc). Antelope Audio will provide you with the RMA number within 2 working days as of the claim submission date. RMA Return Addresses We have multiple RMA receiving locations worldwide.
- Page 22 Republic of Bulgaria with UIN: 131052590, is doing business and is worldwide known. Elsewhere in this document where the trade name Antelope Audio is used shall refer to Elektrosfera ltd., with address of management: Tsarigradsko Shose Blvd., 7th km, Building of BIC IZOT, floor 6, Mladost region, Sofia, Bulgaria.
-
Page 23: Safety Notes
SAFETY NOTES To reduce the risk of electrical shocks, fire, and related hazards: ● Do not remove screws, cover, or cabinet. There are no user serviceable parts inside. Refer servicing to qualified service personnel. ● Do not expose this device to rain, moisture or spillover of liquid of any kind. ●... -
Page 24: Technical Specifications
● The device is designed to operate in a temperate environment, with a correct Operating Temperature of 0-50° C, 32-122° F. TECHNICAL SPECIFICATIONS Satori Analog Inputs 4 x Stereo Pair Line Level Inputs. Ch1 on XLR & Ch2-4 on TRS 4 x Stereo Line Level Inputs on D-Sub 25 1 x Talkback Mic Preamp on TRS Analog Outputs... - Page 25 Weight ~2kg / 4,4lb approx. Dimensions Width: 483 mm / 19” /Rack/ Height: 44 mm(1U) / 1,75” Depth: 220 mm / 8,66” Power Supply AC Universal input ~95-245 V Power Consumption 25 Watts Max. USB: USB 2.0 Full-Speed interface on USB Type B connector Operating Temperature: 0-50ºC, 32-122º...
