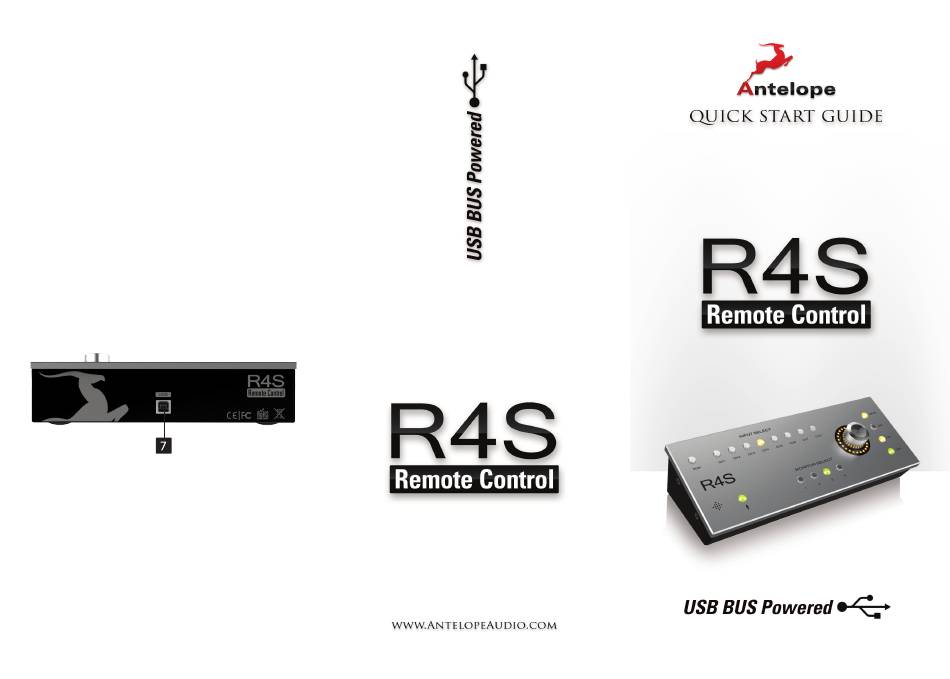

Antelope R4S Quick Start Manual

Turn left/right to change the level. To Mute, press and hold the
Rotary control knob. Press and hold the knob again to unmute.
To access the Trim Offset feature, press and hold the desired
'Monitor' (1, 2, 3 or 4) / 'Input' (Ch1,2,3,4,5,6,7 or 8) button. Then,
turn left/right the Rotary Control knob to trim (-6dB to +6dB in 1 dB
steps). Double-click to set to 0 dB.
6. Mono Dim, M/S & Sub
Pressing the Mono button sets the currently selected monitor
output to mono. This button corresponds to the last setting
selected in the Mono effects dropdown menu in the Satori software
control panel.
Press the Dim button to activate the -20dB attenuator. Press once
more to restore normal volume.
When Mono is activated you also have the option to select M/S.
Pressing the M/S button selects either the sum or the difference
between the left and the right channel. This supplies a stereo
effect, which allows you to monitor just the center or just the
periphery of the audio.
Pressing the Sub button activates the LFE output.

4. Rear Panel Explained

7. USB Connector

R4S uses USB connector, Type B.

5. Technical Specifications

USB: USB 2.0 Full-Speed interface
on USB Type B connector.
Operating Temperature: 0-50ºC, 32-122º F
Weight (unit): 0.71 kg, 1.57 lb
Dimensions (unit): 220 mm(W) x 55 mm(H) x 85 mm(D)
8.66''(W) x 2.22 ''(H) x 3.31''(D)
v. July 2015
