Summary of Contents for World Market Segovia 606728

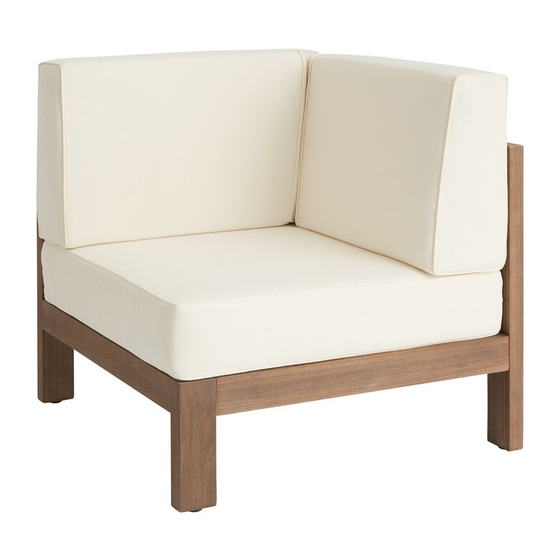

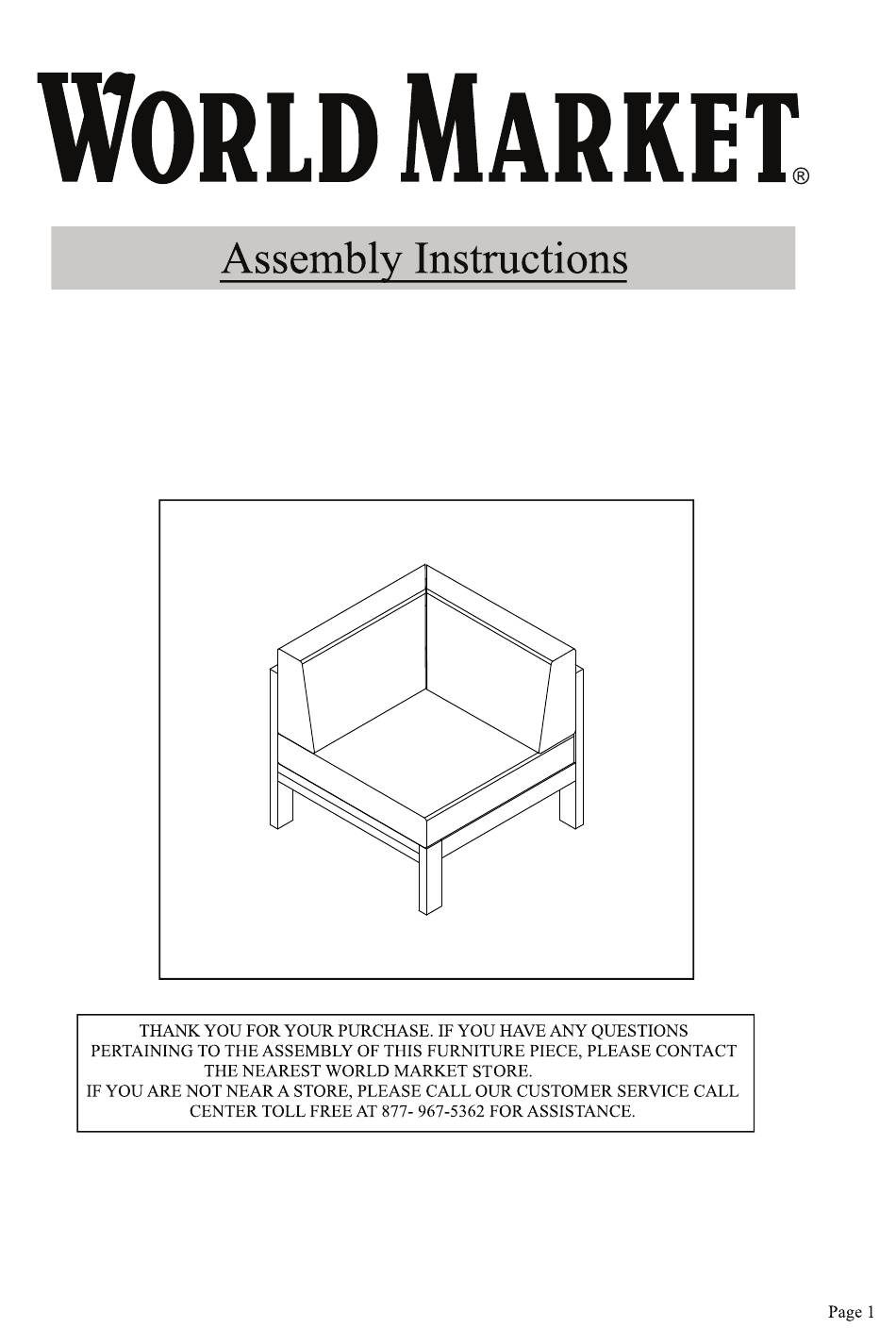

- Page 1 Segovia Modular Corner Chair SKU - 606728 NOT FOR COMMERCIAL USE...
- Page 2 LONG WOODEN PLUG M8x50 Ø14/Ø17x8mm SHORT M8x40...
- Page 4 (H-1) LONG ALLEN BOLT M8x50 x2 (H-4) ALLEN KEY x1 - Place Back Rest (A) upside down on a padded non - marring surface. - Install Seat Frame (B) using Long Allen Bolts (H-1) and Allen Key (H-4). - Do not fully tighten at this point. (H-1) LONG ALLEN BOLT M8x50 x3 (H-2) SHORT ALLEN BOLT M8x40 x2 (H-4) ALLEN KEY x1...
- Page 5 (H-1) LONG ALLEN BOLT M8x50 x3 (H-2) SHORT ALLEN BOLT M8x40 x2 (H-4) ALLEN KEY x1 - Repeat the process from Step 2 - Attach the Right Frame (C) to Back Rest (A), Seat Frame (B) with Long Allen Bolt (H-1), Short Allen Bolt (H-2) by using Allen key (H-4).
- Page 6 Step 6 - Corner Chair is ready to use.
- Page 7 Cleaner MILD Page 7...
