Assembly Instructions

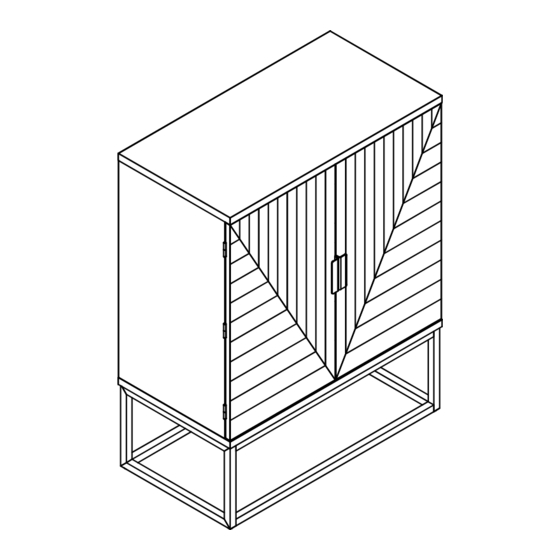

Caspian Bar
SKU - 608163
THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST WORLD MARKET STORE
IF YOU ARE NOT NEAR A STORE PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
All products sold at World Market are not for commercial use and are intended for residential use only.
Page 1
2023.03.15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Caspian 608163 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for World Market Caspian 608163

Summary of Contents for World Market Caspian 608163

  • Page 1 IF YOU ARE NOT NEAR A STORE PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE. All products sold at World Market are not for commercial use and are intended for residential use only. Page 1...

  • Page 2: Component List

    Component List Q.TY LABEL PICTURE DESCRIPTION Top Frame Bottom Frame Divider Frame Left Side Frame Right Side Frame Back Frame Left Door Frame Page 2...
  • Page 3 Component List Q.TY LABEL PICTURE DESCRIPTION Right Door Frame Fixed Shelf Handle Removable Shelf Adjustable Shelf Top Back Rail Bottom Back Rail Glassware Hanging Rail Base Side Frame Base Top Frame Base Bottom Frame Page 3...

  • Page 4: Hardware List

    Hardware List Description Q.TY LABEL PICTURE Cam lock Ø15 mm Cam Screw Screw M4 x 20 mm Connecting Screw M7 x 50 mm Wood Screw M4 x 50 mm Allen Bolt M6 x 20 mm Lock Washer Ø6 x Ø10.5 x T1 mm Flat Washer Ø6 x Ø16 x T1 mm Pan Head Screw M4 x 45 mm H-10...

  • Page 5: Assembly Preparation

    Assemble on a clean non-marring surface (packing foam). Save all packaging until finished. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362. WARNING: Small parts are a choking hazard. Adult Supervision is required before, during, and after assembly.

  • Page 6: Assembly Steps

    Assembly Steps Step 1 (H-2) Cam Screw x 18 (T-3) Phillips Screwdriver Step 1.1: Step 1.2: Make sure Cam Screws are tightened fully as shown Step 1.1: Install Cam Screws (H-2) into the pre-drilled holes on Left Side Frame (D-1) and Right Side Frame (D-2) as shown.
  • Page 7 Step 2 (H-1) Cam Lock x 2 (T-1) Allen key Front Place Fixed Shelf (G) onto a padded, non-marring surface, oriented on its side as shown. Install Cam Locks (H-1) into the corresponding holes on Divider Frame (C) as shown. Carefully lower Divider Frame (C) down, making sure the Cam Screws (H-2) installed on Fixed Shelf (G) fit inside of Divider Frame (C).
  • Page 8 Step 4 (H-1) Cam Lock x 6 (T-1) Allen key Front Using a second person to assist you, rotate the assembly from Step 3 so that the FRONT faces down towards the ground as illustrated. Install Cam Locks (H-1) into the corresponding holes on Fixed Shelf (G), Top Back Rail (K) and Bottom Back Rail (L) as shown.
  • Page 9 Step 6 (H-6) Allen Bolt x 16 (H-7) Lock Washer x 16 (H-8) Flat Washer x 16 (T-1) Allen key Step 6.1: Install and secure Base Top Frame (O) and Base Bottom Frame (P) to one of Base Side Frame (N) using the Short Allen Bolt (H-6), Lock Washer (H-7) and Flat Washer (H-8), stacking the hardware in the order shown.
  • Page 10 Step 8 (H-1) Cam Lock x 6 (T-1) Allen key Front Using a second person to assist you, carefully turn the assembly from Step 7 upright. Install Cam Locks (H-1) into the corresponding holes on Left Side Frame (D-1) and Right Side Frame (D-2) as shown. Next, lower Top Frame (A) down onto the assembly, making sure that Cam Screws (H-2) installed on Top Frame (A) fit inside of Left Side Frame (D-1) and Right Side Frame (D-2).
  • Page 11 Step 9 (H-1) Cam Lock x 2 (T-1) Allen key Front Install Cam Locks (H-1) into the corresponding holes on Top Back Rail (K) as shown. Secure the Top Back Rail (K) to Top Frame (A) with Cam Lock (H-1) using Allen Key (T-2) until snug. Step 10 (H-5) Wood Screw x 3 (T-3) Phillips Screwdriver...
  • Page 12 Step 11 (H-10) Pan Head Screw x 22 (T-2) Triangle (T-3) Phillips Screwdriver 90° H-10 Triangle Front Attach Back Panel (E) to the back of the bar assembly as shown. Secure the panel using Pan Head Screws (H-10). Tighten but do not over-tighten the screws using a Phillips Screwdriver (T-3) (not included). Check that the Caspian Bar is square (90 degree) using the Triangle (T-2).
  • Page 13 Step 13 Opt 1: Front If you want to keep a bottle of wine, please set Removable Shelf (I) according to option 1. Opt 2: Front If you want to store other casual items, please set Removable Shelf (I) according to option 2. Page 13...
  • Page 14 Step 14 (H-3) Screw x 4 (T-3) Phillips Screwdriver Install Handles (H) to Left Door Frame (F-1) and Right Door Frame (F-2) as shown and secure using Screws (H-3) and fully tighten with Phillips Screwdriver (T-3). Step 15 Front Slide the hinges of Left Door Frame (F-1) onto the receiving hinges of Left Side Frame (D-1) as shown. Next, slide the hinges of Right Door Frame (F-2) onto the receiving hinges of Right Side Frame (D-2).
  • Page 15 Step 16: Leveling Instruction ADJUSTABLE LEVELER NOTE: Levelers can be used for adjustment if needed. If RIGHT DOOR appears higher than Adjust the FRONT LEFT leveler until doors are even. the LEFT DOOR LEFT RIGHT DOOR DOOR If LEFT DOOR appears higher than Adjust the FRONT RIGHT leveler the RIGHT DOOR until doors are even.

  • Page 16: Care And Maintenance

    Do not write on furniture without a padded barrier to protect the surface. Do not place furniture outside. For indoor use only. All products sold at World Market are not for commercial use and are intended for residential use only.
  • Page 17 Anti-Tip Measures Warning - Children may be injured by tipping of furniture and the use of the Anti-Tip Kit is highly recommended. This Anti-Tip Kit is only a deterrent It is not a substitute for proper adult supervision. Manufacturer and retailer assumes no liability for improper installation or excess loads placed on screws, brackets, or straps.
  • Page 18 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or partial credit, in the sole discretion of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
