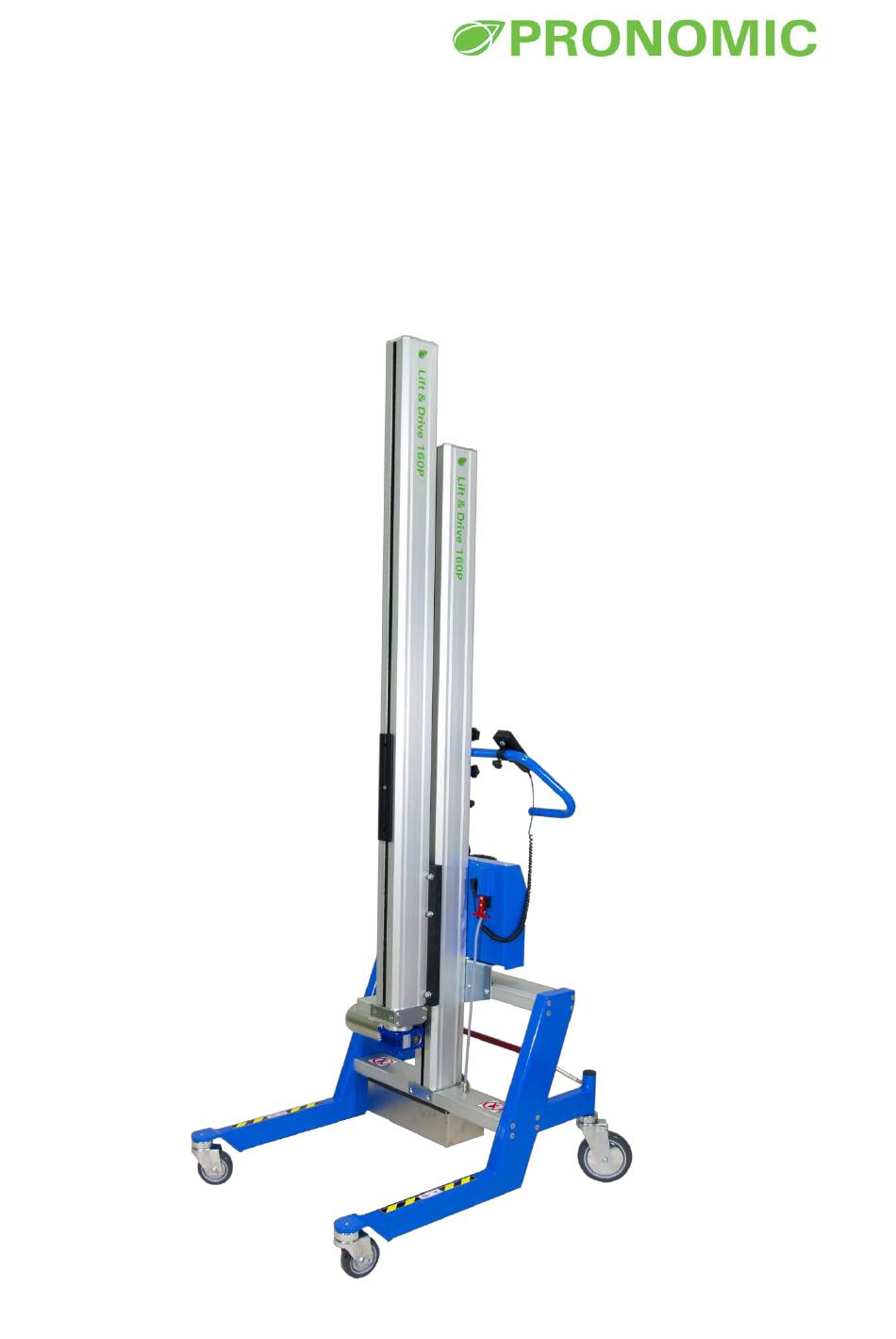

- Page 1 Telescopic mast 19285 Original assembly instructions...
- Page 2 It is important for you to read these assembly instructions before you begin using your lift trolley. Any questions? – Get in touch with your local dealer and/ or the manufacturer. PRONOMIC AB Visiting address: Postal address: Bäckvägen 18 Box 5504...
- Page 3 2. On the brake applied trolley: Mount the column bracket with 2x lubricated M10x80 (10.9) screws with washers. Loosely by hand. Lower the slide in its lowest position after mounting the bracket. ________________________________________________________________________________ 0 – 19285, Telescopic column for 175/225P...
- Page 4 4. Use torque wrench and tighten to 65Nm. Order – upper / lower / middle 5. On the attachment, lower end: Position the front bracket on the screw bars with loose nuts by using e.g. a ruler. Use technique as illustrated. ________________________________________________________________________________ 1 – 19285, Telescopic column for 175/225P...
- Page 5 Raise the bracket 15mm in its upwards direction and press bracket towards the column and tighten so it sits firmly. 7. Apply torque, 25Nm. Order – upper / lower / middle. ________________________________________________________________________________ 2 – 19285, Telescopic column for 175/225P...
- Page 6 Move the attachment towards the brake applied trolley and match the brackets and connect them with two upper bolts and nuts. 9. If necessary, slightly raise the column and install the remaining 4 screws and bolts until gap is closed. ________________________________________________________________________________ 3 – 19285, Telescopic column for 175/225P...
- Page 7 11. Raise the attachment all the way up and down making sure its lowest end doesn’t hit bottom. Check for any misalignment. Both columns should be parallel with each other. 12. Attach the control box to the column. 13. Done. ________________________________________________________________________________ 4 – 19285, Telescopic column for 175/225P...
- Page 8 Distributed by: ________________________________________________________________________________ 5 – 19285, Telescopic column for 175/225P...
