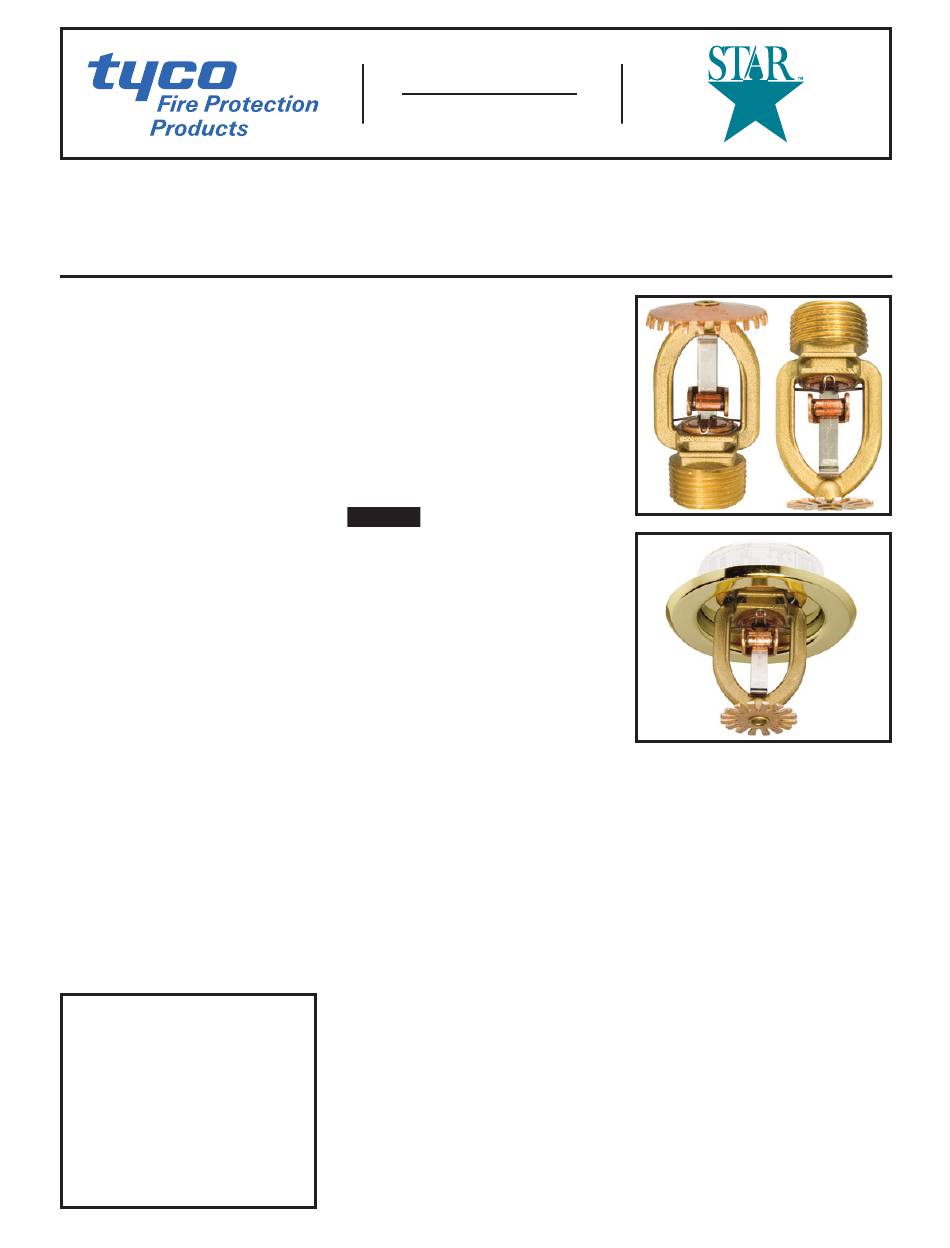

Series TY-L — 5.6 and 8.0 K-factor
Upright, Pendent, and Recessed Pendent Sprinklers
Standard Response, Standard Coverage
General
Description
The TYCO Series TY-L, 5.6 and
8.0 K-factor, Upright, Pendent,
and Recessed Pendent Sprinklers
described in this data sheet are stan-
dard response, standard coverage,
solder type spray sprinklers designed
for use in light, ordinary, and extra
hazard, commercial occupancies such
as banks, hotels, shopping malls, fac-
tories, refineries, chemical plants, etc.
The recessed version of the Series
TY-L Pendent Sprinkler, where appli-
cable, is intended for use in areas with
a finished ceiling. It uses a two-piece
Style 20 (1/2 inch NPT) or Style 30 (3/4
inch NPT) Recessed Escutcheon. The
Recessed Escutcheon provides 1/4 in.
(6,4 mm) of recessed adjustment or up
to 1/2 in. (12,7 mm) of total adjustment
from the flush pendent position. The
adjustment provided by the Recessed
Escutcheon reduces the accuracy to
which the fixed pipe drops to the sprin-
klers must be cut.
Corrosion resistant coatings, where
applicable, are utilized to extend the life
of copper alloy sprinklers beyond that
which would otherwise be obtained
when exposed to corrosive atmo-
spheres. Although corrosion resistant
coated sprinklers have passed the
standard corrosion tests of the appli-
cable approval agencies, the testing is
not representative of all possible cor-
rosive atmospheres. Consequently,
it is recommended that the end user
be consulted with respect to the suit-
ability of these coatings for any given
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
Worldwide Contacts
www.tyco-fire.com
corrosive environment. The effects of
ambient temperature, concentration of
chemicals, and gas/chemical velocity,
should be considered, as a minimum,
along with the corrosive nature of the
chemical to which the sprinklers will be
exposed.
An intermediate level version of the
Series TY-L Pendent Sprinkler can be
obtained by utilizing the Series TY-L
Pendent Sprinkler in combination with
the Model S Shield.
NOTICE
The TYCO Series TY-L, 5.6 and 8.0
K-factor, Upright and Pendent Sprin-
klers described herein must be
installed and maintained in compliance
with this document, as well as with the
applicable standards of the National
Fire Protection Association, in addition
to the standards of any other authori-
ties having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Number (SIN)
TY3111 . . . . . .Upright 5 .6K, 1/2" NPT
TY3211 . . . . Pendent 5 .6K, 1/2" NPT
TY4111 . . . . . Upright 8 .0K, 3/4" NPT
TY4211 . . . . . Pendent 8 .0K, 3/4" NPT
TY4811 . . . . .Upright 8 .0K, 1/2" NPT
TY4911 . . . . Pendent 8 .0K, 1/2" NPT
TY3111 is a re-designation for S1800
and G3111.
TY3211 is a re-designation for S1801
and G3112.
TY4111 is a re-designation for S1810
and G3101.
TY4211 is a re-designation for S1811
and G3102.
TY4811 is a re-designation for S1805.
TY4911 is a re-designation for S1806.
NOVEMBER 2015
Worldwide
www.tyco-fire.com
Contacts
TFP110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TY-L Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco TY-L Series

  • Page 1 NOTICE The recessed version of the Series The TYCO Series TY-L, 5.6 and 8.0 TY-L Pendent Sprinkler, where appli- K-factor, Upright and Pendent Sprin- cable, is intended for use in areas with klers described herein must be a finished ceiling.
  • Page 2 TFP110 Page 2 of 6 Temperature rating Pipe thread connections per Frame Ejection Strut ESCUTCHEON is indicated on ISO 7-1 can be provided on Spring Sealing Hook PLATE SEATING 7 - De ector De ector. special request. Button Fusible SURFACE Element WRENCH AREA...
  • Page 3 The Series TY-L Pendent and Upright Sprinklers must be installed in accor- dance with this section. Approvals The TYCO Series TY-L, 5.6 and 8.0 K-factor, Upright, Pendent, and Pendent sprinklers are to be installed UL and C-UL Listed. FM, and LPCB Approved.
  • Page 4 TFP110 Page 4 of 6 Sprinkler Finish Frame Temp. Type Color Natural Chrome Lead Wax Over Rating Code Brass Plated Coated Coated Lead Coated 165°F (74°C) Unpainted Pendent (TY3211) 1, 2, 3 212°F (100°C) White 1, 2, 3, 5 Upright (TY3111) 1/2”...
  • Page 5 (57,2 mm) PLATE SPRINKLER WRENCH FITTING 1/8" Care and (3,2 mm) Maintenance The TYCO Series TY-L, 5.6 and MOUNTING 8.0 K-factor, Upright, Pendent, and SURFACE 1-3/4" (44,5 mm) Recessed Pendent Sprinklers must be 1-1/2" (38,1 mm) maintained and serviced in accordance with this section.
  • Page 6 Chrome Plated ... . P/N 56-705-9-011 GLOBAL HEADQUARTERS | 1400 Pennbrook Parkway, Lansdale, PA 19446 | Telephone +1-215-362-0700 Copyright © 2015 Tyco Fire Products, LP. All rights reserved. MONEL is trademark of Special Metals Corporation.
