Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

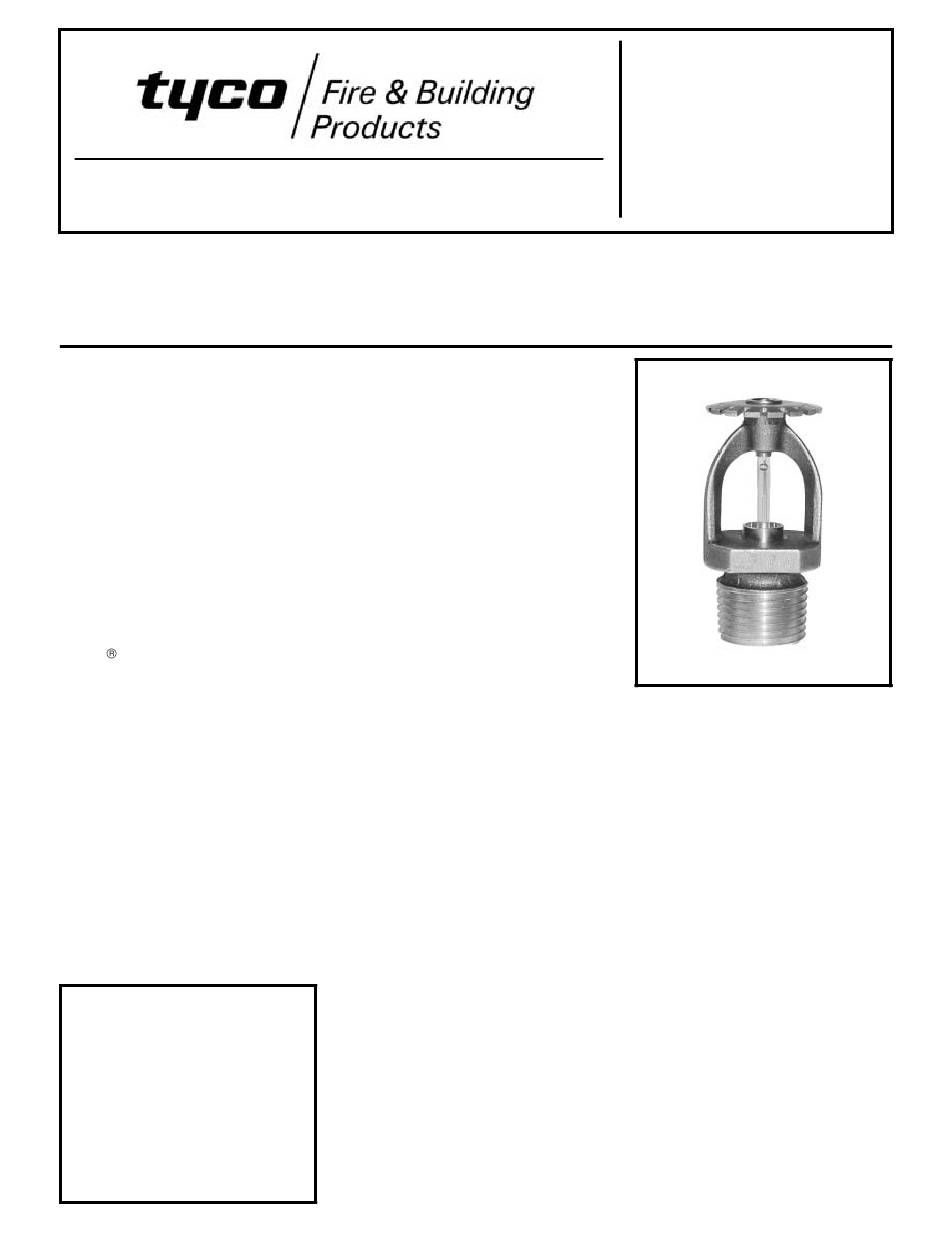

Model CC1 — 2.8 K-factor
Combustible Concealed Space Sprinklers
Specific Application, Upright
General
Description
The Model CC1 Combustible Con-
cealed Sprinklers are fast response,
upright, specific application sprinklers
designed to provide protection of light
hazard combustible, as well as non-
combustible, concealed spaces requir-
ing sprinkler protection. The CC1
Sprinklers comply with the criterion for
the protection of combustible con-
cealed spaces as described in NFPA
13.
The Model CC1 Sprinklers can in
some cases allow for the use of Blaze-
Master CPVC piping within con-
cealed spaces requiring automatic
sprinkler protection. At one time, the
listing of CPVC piping for fire protec-
tion systems did not allow the use of
CPVC piping in combustible con-
cealed spaces requiring automatic
sprinkler protection. With the extensive
full scale fire testing of the Model CC1
Combustible Concealed Space Sprin-
klers, performed at UL, BlazeMaster
CPVC may now be used in the speci-
fied combustible concealed spaces re-
quiring automatic sprinkler protection,
when installed in accordance with this
Technical Data Sheet.
The effectiveness of the Model CC1
Sprinklers, in the combustible con-
cealed spaces investigated, was
clearly evident during the full scale fire
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 8
testing for this product. Concealed
spaces between floors, as well as low
pitch attics are inherently shallow.
Standard spray sprinklers, by design,
have an umbrella like spray pattern
that poses a difficult challenge when
trying to achieve effective coverage
within a shallow space. The Model
CC1 Combustible Concealed Space
Sprinklers have addressed this difficult
fire challenge.
WARNING
The Model CC1 Combustible Con-
cealed Sprinklers described herein
must be installed and maintained in
compliance with this document, as
well as with the applicable standards
of the National Fire Protection Asso-
ciation, in addition to the standards of
any other authorities having jurisdic-
tion. Failure to do so may impair the
performance of these devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or manufac-
turer should be contacted with any
questions.
Sprinkler
Identification
Number
TY1189 - Upright, 2.8 K
TY1189 is a redesignation for C1189.
Technical
Data
Approvals
UL and C-UL Listed.
(Listings and approvals only apply to
the service conditions indicated in the
Design Criteria sections.)
JULY, 2004
TM
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
1/2 inch NPT or ISO 7-R3/4
Discharge Coefficient
1/2
K = 2.8 GPM/psi
1/2
(40,3 LPM/bar )
Temperature Rating
175°F/79°C
Finish
Natural Brass
Physical Characteristics
Frame . . . . . . . . . . . . . Brass
Button . . . . . . . . . . . . Bronze
Sealing Assembly . . . . . . . . . .
. . . . . . Stainless Steel w/Teflon†
Bulb . . . . . . . Glass (3 mm dia.)
Compression Screw . . . . . . Brass
Deflector . . . . . . . . . . . Bronze
† DuPont Registered Trademark
TFP630
