Series TY-L — 5.6 and 8.0 K-factor
Upright and Pendent Intermediate Level Sprinklers
Standard Response
General
Description

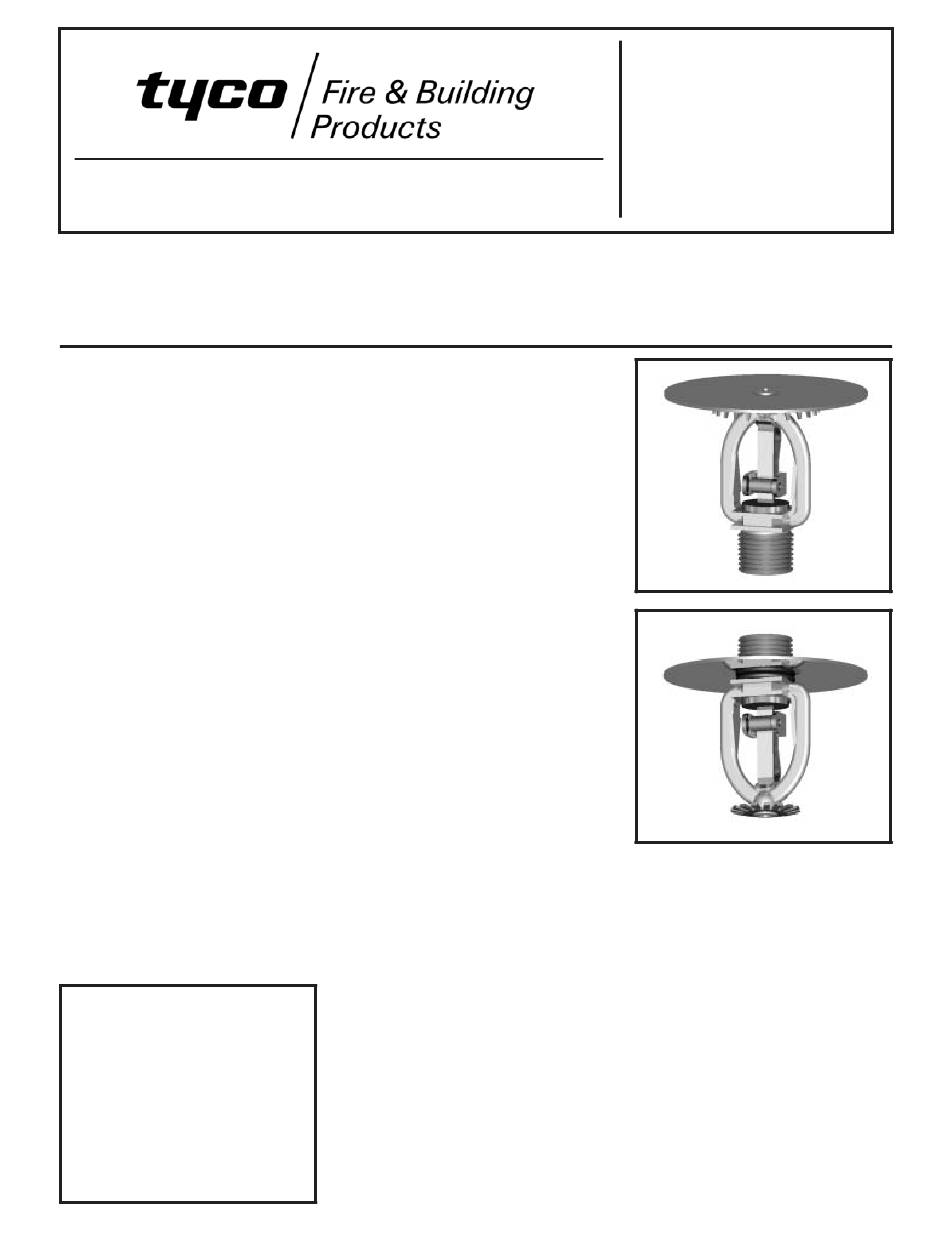

The Series TY-L, 5.6 and 8.0 K-factor
Upright and Pendent Intermediate
Level Sprinklers described in this data
sheet are automatic sprinklers of the
"standard response" solder type. They
are "standard spray" sprinklers in-
tended for use in fire sprinkler systems
designed in accordance with the
standard installation rules recognized
by the applicable Listing or Approval
agency (e.g., UL Listing is based on
NFPA requirements). Both the Pen-
dent and Upright Sprinklers produce a
hemispherical water distribution pat-
tern below the deflector.
Intermediate Level Sprinklers are pri-
marily designed for use in rack storage
sprinkler systems where their ther-
mally sensitive elements must be
shielded from the water spray of higher
elevation sprinklers that could operate
earlier during a fire. Intermediate Level
Sprinklers are also used in other appli-
cations such as beneath open gridded
catwalks.
WARNINGS
The Series TY-L Sprinklers described
herein must be installed and main-
tained in compliance with this docu-
ment, as well as with the applicable
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
standards of the National Fire Protec-
tion Association, in addition to the
standards of any other authorities hav-
ing jurisdiction. Failure to do so may
impair the performance of these de-
vices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions.
Model/Sprinkler
Identification
Numbers
TY3113 - Upright 5.6K, 1/2"NPT
TY3211 - Pendent 5.6K, 1/2"NPT
TY4113 - Upright 8.0K, 3/4"NPT
TY4211 - Pendent 8.0K, 3/4"NPT
TY3113 is a redesignation for S1809
and G3253.
TY3211 is a redesignation for S1801
and G3112.
TY4113 is a redesignation for S1822
and G3153.
TY4211 is a redesignation for S1811
and G3102.
JANUARY, 2005
Technical
Data
Approvals
UL and C-UL Listed.
FM Approved.
(Refer to Table A for complete approval
information including corrosion resis-
tant status.)
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
1/2
K = 5.6 GPM/psi (80,6 LPM/bar
1/2
K = 8.0 GPM/psi (115,2 LPM/bar
Temperature Ratings
Refer to Table A
Finishes
Natural Brass
1/2
)
1/2
)
TFP350
