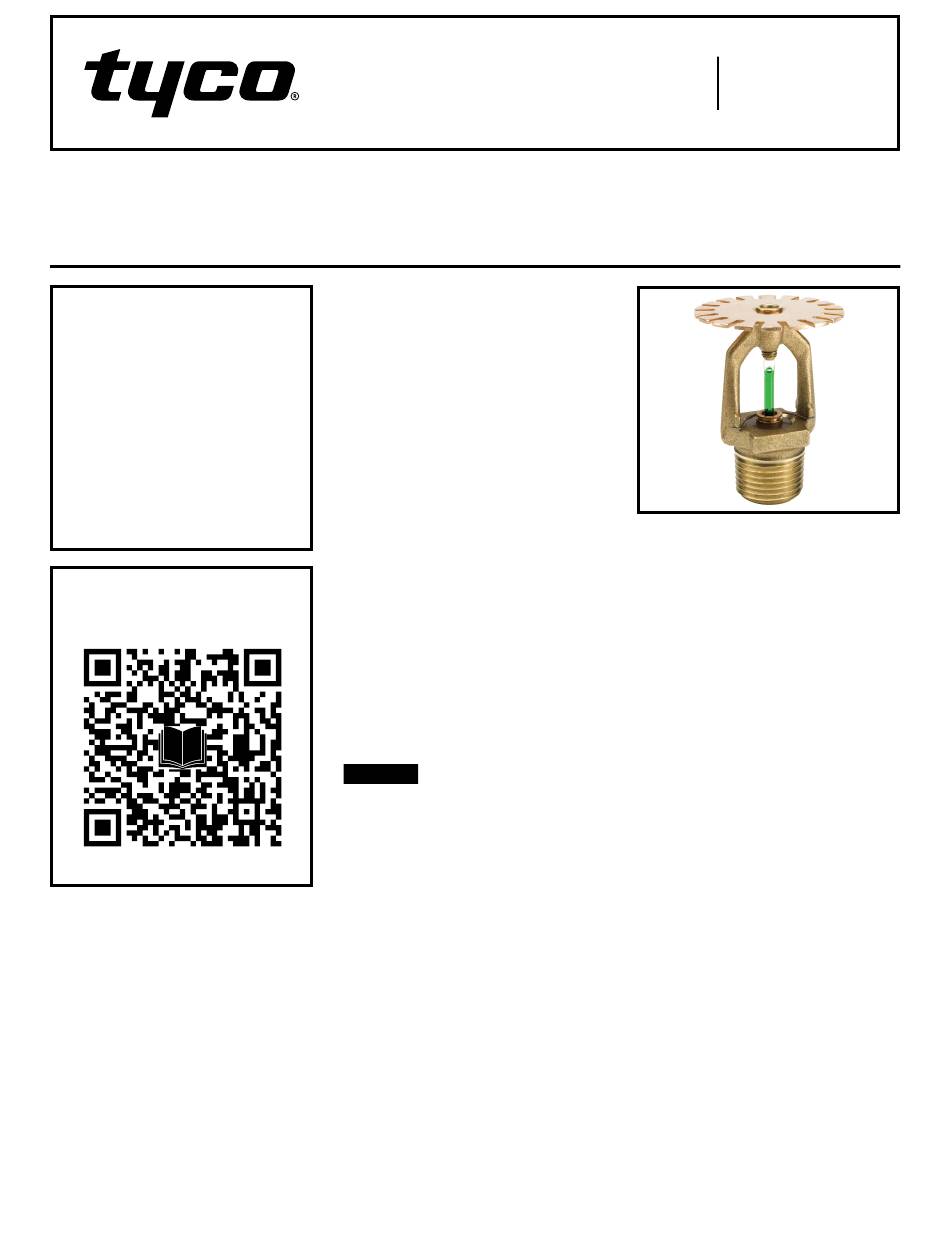

Model CC3 — 4.2 and 5.6 K-factor
Combustible Concealed Space Sprinklers
Specific Application, Upright
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/tfp633
General
Description

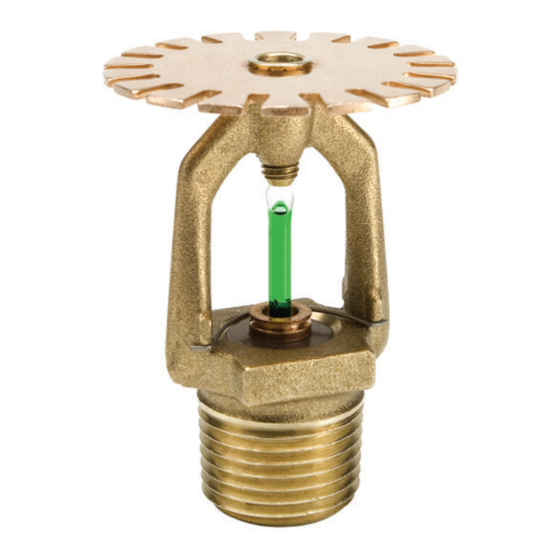

The Model CC3 Combustible Con-
cealed Sprinklers are quick response,
upright, specific application sprinklers
designed to provide protection of spe-
cific light hazard combustible, as well
as non-combustible, con cealed spaces
requiring sprinkler protection. The
Model CC3 Sprinklers comply with the
criteria for the protection of combus-
tible concealed spaces as described
in NFPA 13.
The Model CC3 Sprinklers are
designed for installation on BLAZE-
MASTER CPVC wet pipe systems,
other UL Listed CPVC pipe products,
Page 1 of 8
and steel wet pipe or dry pipe sprinkler
systems (see the respective Design Cri-
teria sections). The Model CC3 Sprin-
klers are designed to be installed in the
following arrangements for both wet
CPVC and steel:
• 4.2K
14 ft (4,3 m) maximum between
sprinklers
196 ft² (18,2 m²) maximum coverage
area
• 5.6K
16 ft (4,9 m) maximum between
sprinklers
256 ft² (23,8 m²) maximum coverage
area
• 6 in. (152,4 mm) minimum height for
joist with steel pipe or CPVC when
insulation filled. 12 in. (305 mm) min-
imum height for all other arrange-
ments and sizes
• 60 in. (1524 mm) maximum height
from joist to joist and 84 in.
(2134 mm) from floor to ceiling
• 60 in. (1524 mm) maximum height for
truss and bar joist
NOTICE
The Model CC3 Combustible Con-
cealed Sprinklers described herein
must be installed and maintained in
compliance with this document, as
well as with the applicable standards
of the NATIONAL FIRE PROTECTION
ASSOCIATION (NFPA), in addition to
the standards of any other authorities
having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Number
TY2199 – Upright, 4.2K
TY3199 – Upright, 5.6K
MARCH 2023
Worldwide
www.tyco-fire.com
Contacts
Technical
Data
Approvals
UL Listed
(Listings and approvals only apply to the
service conditions indicated in the Design
Criteria sections.)
Antifreeze Compatibility
Model CC3 TY2199 4.2K and TY3199 5.6K
Sprinklers can be used with:
• LFP ® Antifreeze in accordance with
Technical Data Sheet TFP1680, LFP
Antifreeze Agency Listed Solution for Fire
Sprinkler Systems
• LFP ® Antifreeze+ in accordance with
Technical Data Sheet TFP1682, LFP
Antifreeze+ Agency Listed Solution for
Fire Sprinkler Systems
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
½ in. NPT
Discharge Coefficient
K = 4.2 GPM/psi ½ (60,5 LPM/bar
K = 5.6 GPM/psi ½ (80,6 LPM/bar
Temperature Rating
200°F (93°C)
Finish
Natural Brass
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Button . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Sealing Assembly . . Beryllium Nickel w/TEFLON
Bulb . . . . . . . . . . . . . . . . . . . . . . . . . Glass (3 mm)
Compression Screw . . . . . . . . . . . . . . . . . .Brass
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
®
®
½ )
½ )
