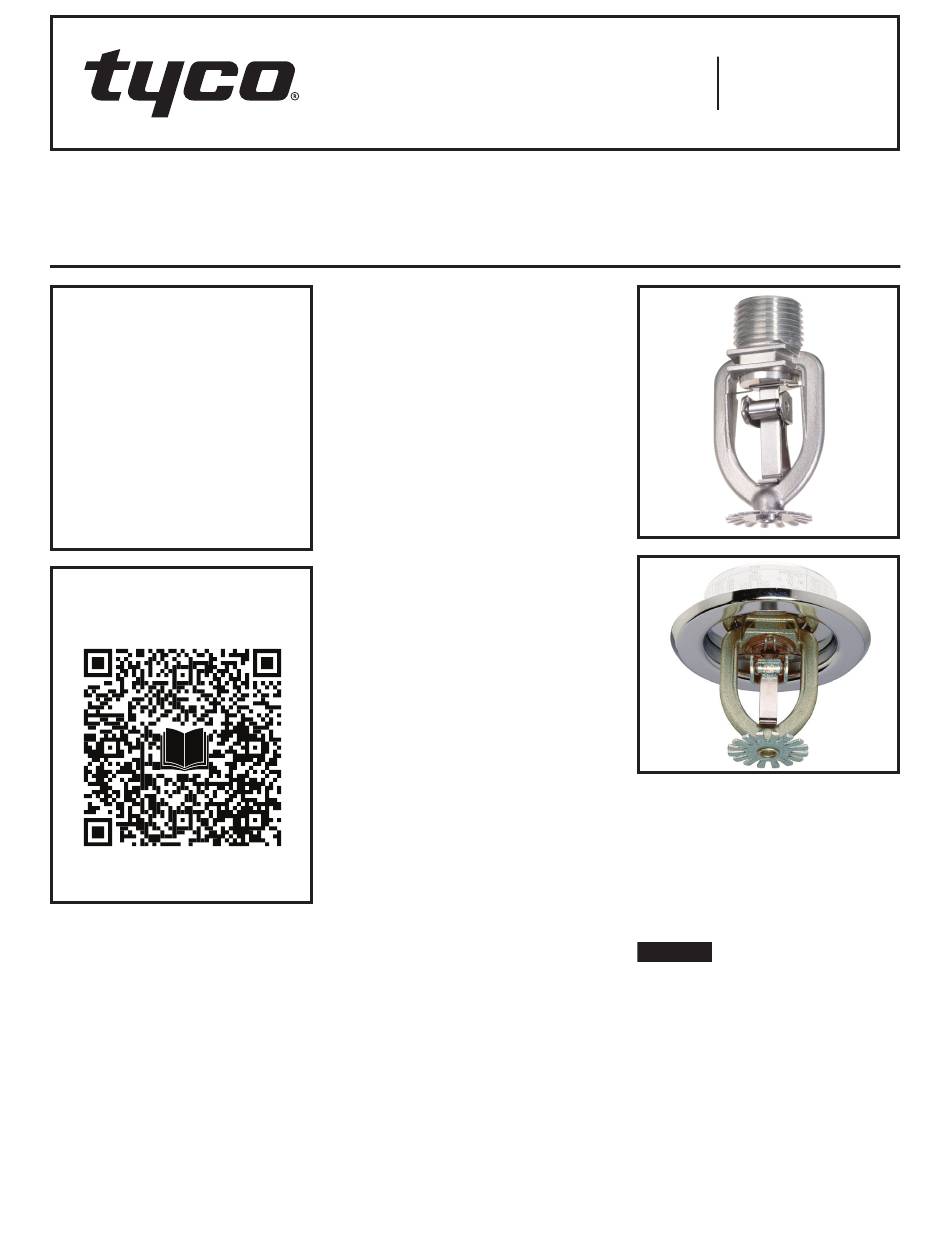

Series TY-L – 5.6 and 8.0 K-factor Stainless Steel
Pendent and Recessed Pendent Sprinklers
Standard Response, Standard Coverage
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/series-ty-l-
5_6-8-k-steel-rec-pen-res-cov
General
Description
The TYCO Series TY-L 5.6 and 8.0
K-factor Stainless Steel Pendent and
Recessed Pendent Sprinklers are stan-
dard response, standard coverage,
solder type sprinklers. The sprinklers
are designed for use in light, ordinary,
and extra-hazard commercial occu-
pancies with a finished ceiling such
as restaurants, food service produc-
tion facilities, factories, refineries, and
chemical plants. The sprinkler, where
applicable, is intended for use in areas
with a finished ceiling.
Page 1 of 6
Recessed applications use the follow-
ing sprinkler assemblies:
• 5.6K sprinkler, and a two-piece
Style 20 (1/2 in. NPT) Recessed
Escutcheon where applicable, as
shown in Figure 5.
• 8.0K sprinkler, and a two-piece
Style 40 (3/4 in. NPT) Recessed
Escutcheon where applicable, as
shown in Figure 6.
The Style 20 recessed escutcheon
provides 1/4 in. (6,4 mm) of recessed
adjustment, or up to 1/2in. (12,7 mm) of
total adjustment from the flush pendent
position. The Style 40 recessed
escutcheon provides 1/2 in. (12,7 mm)
of recessed adjustment, or up to 3/4 in.
(19,1 mm) of total adjustment from the
flush pendent position.
The adjustment reduces the accuracy
to which the fixed pipe drops to the
sprinklers must be cut.
Flush applications use either of the fol-
lowing sprinkler assemblies:
• 5.6K or 8.0K sprinkler and a Style
65 One-Piece Flush Escutcheon
where applicable.
• 8.0K sprinkler and a Style 60
Two-Piece Flush Escutcheon where
applicable, as shown in Figure 7.
The Style 60 flush escutcheon provides
1/2 in. (12,7 mm) of recessed adjust-
ment, or up to 3/4 in. (19,1 mm) of total
adjustment from the flush pendent
position. The adjustment
accuracy to which the fixed pipe drops
to the sprinklers must be cut.
The sprinkler is stainless steel and is
utilized to extend the life of a sprinkler
beyond that which might be expected
of copper alloy sprinklers exposed
to corrosive atmospheres. Although
corrosion resistant sprinklers have
passed the standard corrosion tests
of the applicable approval agencies,
the testing is not representative of
all possible corrosive atmospheres.
Consequently, it is recommended that
the end user be consulted with respect
to the suitability of stainless steel for
any given corrosive environment. The
effects of ambient temperature, con-
centration of chemicals, and gas/
chemical velocity, should be consid-
APRIL 2022
Worldwide
Contacts
ered, as a minimum, along with the cor-
rosive nature of the chemical to which
the sprinklers will be exposed.
An intermediate level version of the
Series TY-L Pendent Sprinkler can be
obtained by utilizing the Series TY-L
reduces the
Pendent Sprinkler in combination with
the Model S5 Shield.
NOTICE
The Series TY-L 5.6 and 8.0 K-fac-
tor Upright, Pendent, and Recessed
Pendent Sprinklers described herein
must be installed and maintained in
compliance with this document, as
well as with the applicable standards
of the NATIONAL FIRE PROTECTION
ASSOCIATION (NFPA), in addition to
the standards of any authorities having
jurisdiction, such as FM Global. Failure
to do so may impair the performance
of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
