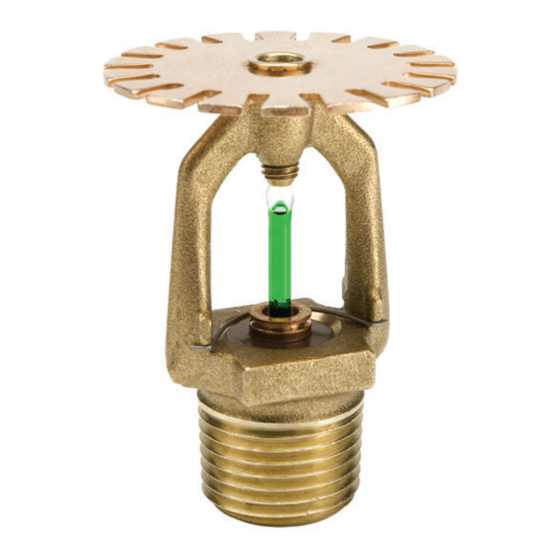

Model CC3 — 4.2 and 5.6 K-factor
Combustible Concealed Space Sprinklers
Specific Application, Upright
General
Description
The Model CC3 Combustible Con-
cealed Sprinklers are quick response,
upright, specific application sprinklers
designed to provide protection of spe-
cific light hazard combustible, as well
as non-combustible, con cealed spaces
requiring sprinkler protection. The
Model Cc3 Sprinklers comply with the
criteria for the protection of combus-
tible concealed spaces as described
in NFPA 13.
The Model CC3 Sprinklers are
designed for installation on BLAZE-
MASTER CPVC wet pipe systems,
other UL Listed CPVC pipe products,
and steel wet pipe or dry pipe sprinkler
systems (refer to the respective Design
Criteria sections). The Model CC3
Sprinklers are designed to be installed
in the following arrangements for both
wet CPVC and steel:
• 4.2K
14 ft (4,3 m) maximum between
sprinklers
196 ft² (18,2 m²) maximum cover-
age area
• 5.6K
16 ft (4,9 m) maximum between
sprinklers
256 ft² (23,8 m²) maximum cover-
age area
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 8
• 6 in. (152,4 mm) minimum height for
joist with steel pipe or CPVC when
insulation filled. 12 in. (305 mm) min-
imum height for all other arrange-
ments and sizes
• 60 in. (1524 mm) maximum height
from joist to joist and 84 in.
(2134 mm) from floor to ceiling
• 60 in. (1524 mm) maximum height for
truss and bar joist
NOTICE
The Model CC3 Combustible Con-
cealed Sprinklers described herein
must be installed and maintained in
compliance with this document, as
well as with the applicable standards
of the NATIONAL FIRE PROTECTION
ASSOCIATION (NFPA), in addition to
the standards of any other authorities
having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Number
TY2199 – Upright, 4.2K
TY3199 – Upright, 5.6K
Technical
Data
Approvals
UL Listed
(Listings and approvals only apply to the
service conditions indicated in the Design
Criteria sections.)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
1/2 in. NPT
DECEMBER 2018
Worldwide
www.tyco-fire.com
Contacts
Discharge Coefficient
K = 4.2 GPM/psi
½
(60,5 LPM/bar
K = 5.6 GPM/psi
½
(80,6 LPM/bar
Temperature Rating
200°F (93°C)
Finish
Natural Brass
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Button . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Sealing Assembly . . Beryllium Nickel w/TEFLON
Bulb . . . . . . . . . . . . . . . . . . . . . . . . .Glass (3 mm)
Compression Screw . . . . . . . . . . . . . . . . . .Brass
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Operation
The glass bulb contains a fluid that
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter the
glass bulb allowing the sprinkler to acti-
vate and flow water.
Design
Criteria
Design criteria is provided as follows:
• 200°F (93°C), Model CC3 Combusti-
ble Concealed Sprinklers with CPVC
pipe and horizontal slope above
sprinklers not exceeding 2:12 (Refer
to Page 2).
• 200°F (93°C), Model CC3 Combus-
tible Concealed Sprinklers with steel
pipe and horizontal slope above
sprinklers not exceeding 2:12 (Refer
to Page 4).
½
)
½
)
TFP633
