Ellisys SerialTek Gen5 POD M.2 Assembly page 2

Gen5 POD M.2 Edition Assembly Reference

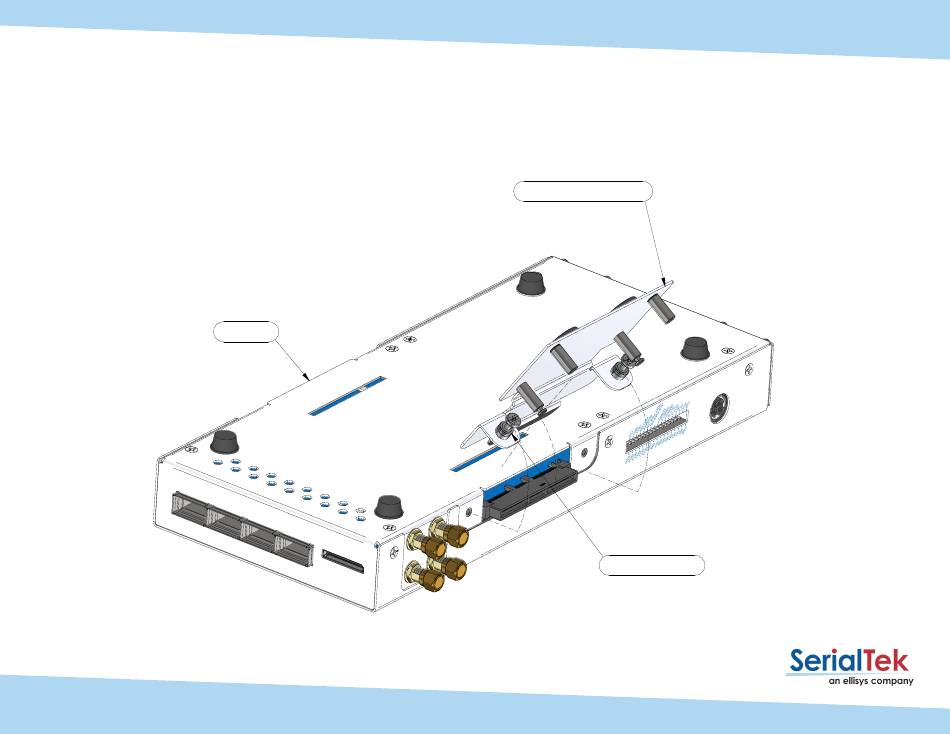

Slide the Host/Device Cable Adaptor Tray into the slot on the DEVICE side on
the underside of the POD Main Unit at an angle of about 60 ~ .
Rotate the Cable Adaptor Tray so it is horizontal and tighten the M3 Captive
Panel Screws to the POD Main Unit, ensuring not to over tighten.
0004648 - R1
Page 2 of 5
POD Main Unit
Host/Device Cable Adaptor Tray
M3 Captive Panel Screw
