Ellisys SerialTek Gen5 POD U.2 Assembly page 6

Gen5 POD U.2/U.3 Edition Assembly Reference

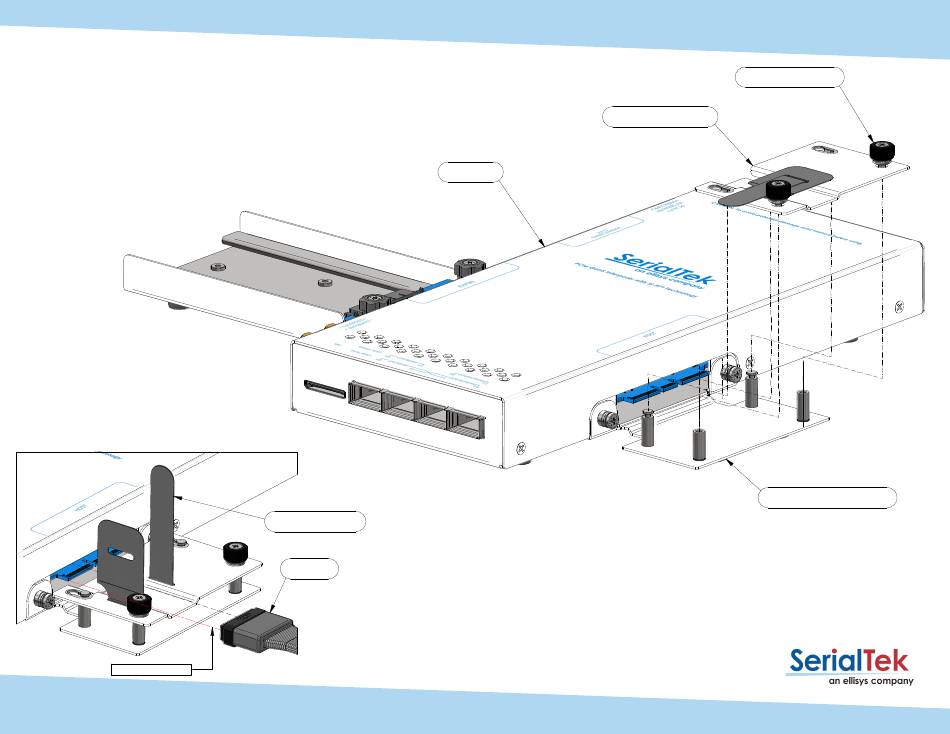

Raise the Caps of the M3 Spring Loaded Screws and secure the
HCBL-EDSFF Support Tray in position on the Host/Device Cable
Adaptor Tray with the M3 Spring Loaded Screws
PIN A1/B1 Position
0004675 - R1
Page 6 of 6
POD Main Unit
Hook & Loop Cable Tie
Ensure the U.2/U.3 HSA Cable is in the correct orientation,
U.2/U.3 HSA
TOP label facing upwards. Slide the cable onto the
HCBL-EDSFF Support Tray and connect to the HOST side of
the POD Main Unit aligning PINs A1/B1.
Secure in position with the Hook & Loop Cable Tie.
M3 Spring Loaded Screw
HCBL-EDSFF Support Tray
Device/Host Cable Adaptor Tray
