TWO-WAY COMPACT MONITOR SPEAKER SYSTEM
DIFFUSORE MONITOR COMPATTO A DUE VIE
User manual
Manuale d'uso
the rules of sound
MQ50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MQ50 and is the answer not in the manual?

Questions and answers

Summary of Contents for RCF MQ50

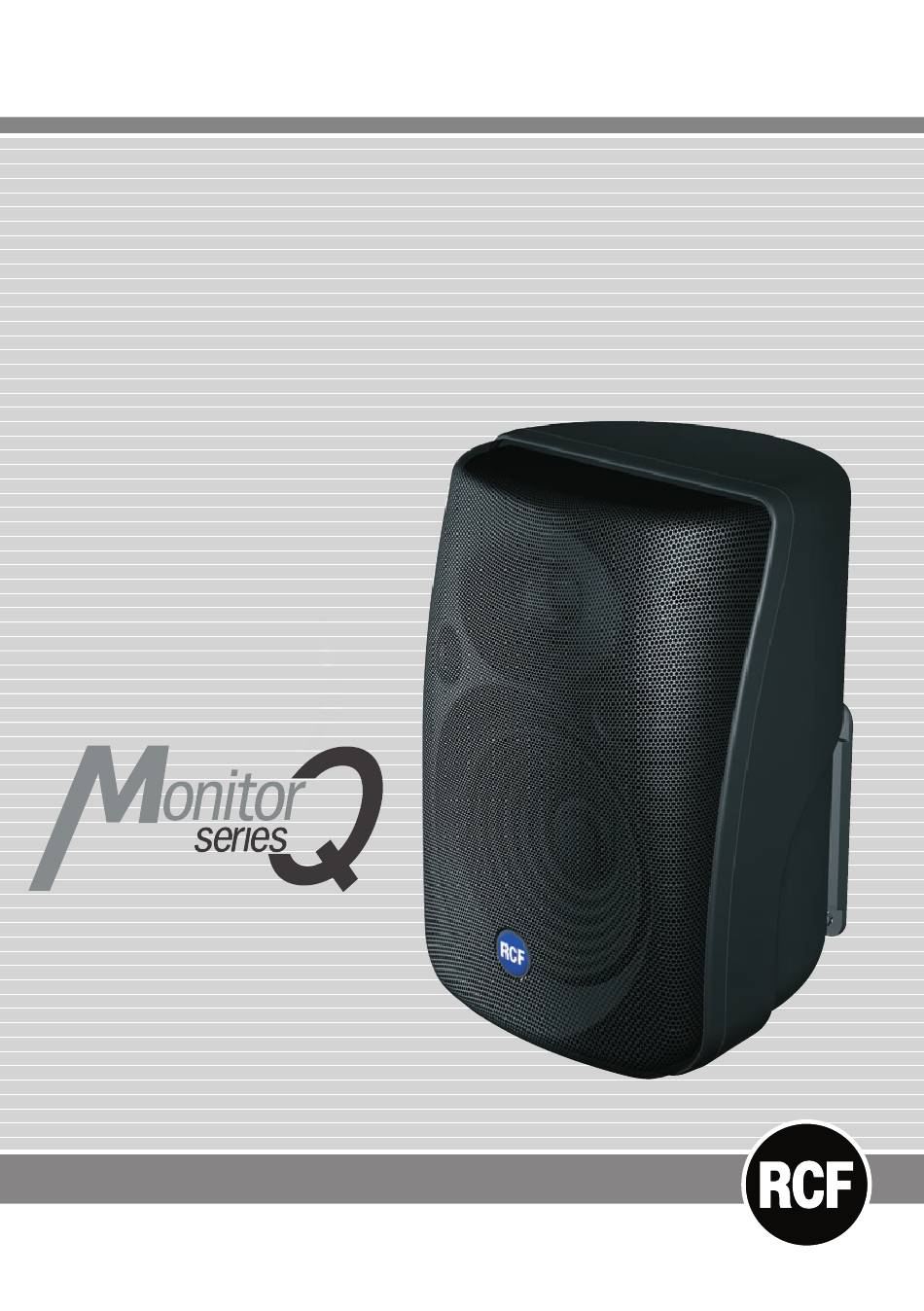

  • Page 1 MQ50 TWO-WAY COMPACT MONITOR SPEAKER SYSTEM DIFFUSORE MONITOR COMPATTO A DUE VIE User manual Manuale d’uso the rules of sound...
  • Page 2: Avvertenze Per La Sicurezza

    Verificare inoltre l’idoneità del supporto (parete, soffitto, struttura ecc.) e dei componenti utilizzati per il fissaggio (tasselli, viti, staffe non fornite da RCF ecc.) che devono garantire la sicurezza dell’impianto / installazione nel tempo, anche considerando, ad esempio, vibrazioni meccaniche normalmente generate da un trasduttore.
  • Page 3 11. PERDITA DELL’UDITO L’esposizione ad elevati livelli sonori può provocare la perdita permanente dell’udito. Il livello di pressione acustica pericolosa per l’udito varia sensibilmente da persona a persona e dipende dalla durata dell’esposizione. Per evitare un’esposizione potenzialmente pericolosa ad elevati livelli di pressione acustica, è...
  • Page 4 RCF S.p.A. Vi ringrazia per l’acquisto di questo prodotto, realizzato in modo da garantirne l’affidabilità e prestazioni elevate. INTRODUZIONE La sezione elettroacustica del settore ricerca e sviluppo RCF ha lavorato assieme ad architetti e Monitor Q installatori al progetto . L’ambizioso obiettivo qui raggiunto è stato quello di creare una...
  • Page 5 COLLEGAMENTI Per evitare il rischio di shock elettrici, non collegare il diffusore con l’amplificatore acceso. Prima di far funzionare il diffusore verificare attentamente la correttezza dei collegamenti, per evitare che cortocircuiti accidentali possano dare luogo a scintille elettriche. Il diffusore può essere collegato a linee audio a tensione costante a 70 V o 100 V oppure ad impedenza costante (commutatore rotativo posizionato su 16 Ohm).
  • Page 6: Important Notes

    (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.
  • Page 7 11. HEARING LOSS Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that leads to hearing loss is different from person to person and depends on the duration of exposure. To prevent potentially dangerous exposure to high levels of acoustic pressure, anyone who is exposed to these levels should use adequate protection devices.
  • Page 8 Series. Monitor Q Series is an additional family to add to the outstanding versatility of the RCF Monitor range of speakers. Our objectives are to provide you with an additional choice of ‘cosmetically pleasing’ fashion orientated compact installation speaker systems. Plus unique ‘Contractor Solutions’.
  • Page 9: Input Cables

    CONNECTIONS To prevent the risk of electric shock, do not connect the speaker with the amplifier switched on. Before using the speaker, carefully check that all the connections have been made correctly to make sure there are no accidental short circuits that could cause electrical sparks. The speaker can be connected to constant voltage audio lines at 70 V or 100 V or to constant impedance lines (rotary switch positioned to 16 Ohm).
  • Page 10: Istruzioni Di Installazione

    ISTRUZIONI DI INSTALLAZIONE INSTALLATION INSTRUCTIONS Siraccomandadieseguireun’installazione You are recommended to install the sicura del diffusore, controllando che speaker safety, checking that the la superficie di fissaggio abbia una fixing surface is resistant and solid resistenza e solidità tale da supportare il enough to support the weight of the speaker, peso del diffusore, in modo da evitare cadute so as to prevent the risk of it falling that could...
  • Page 12 Orientare il diffusore nella posizione desiderata. Aim the loudspeaker to get the desidered position. Assicurarsi che il dente di Make sure the tooth of the regolazione dell’angolo chosen vertical tilt setting verticale corrispondente has been properly/deeply all’inclinazione prescelta inserted into the circular sia inserito a fondo nella seat A .
  • Page 13 installazione/installation...
  • Page 14: Technical Specification

    TECHNICAL SPECIFICATION MQ50 Type Of Speaker: Two way Bass reflex Speaker: woofer 5” - tweeter 0,75” dome Sensitivity: 89 dB SPL 1W/1m Frequency response(-10dB): 70 - 20000 Hz SPL: 110 dB Power/RMS: 120/60 W Bypass Constant voltage: 70,7 - 100 V...
  • Page 16 Except possible errors and omissions. RCF S.p.A. reserves the right to make modifications without prior notice. the rules of sound RCF SpA: Via Raffaello, 13 - 42010 Reggio Emilia > Italy tel. +39 0522 274411 - fax +39 0522 274484 - e-mail: rcfservice@rcf.it...
