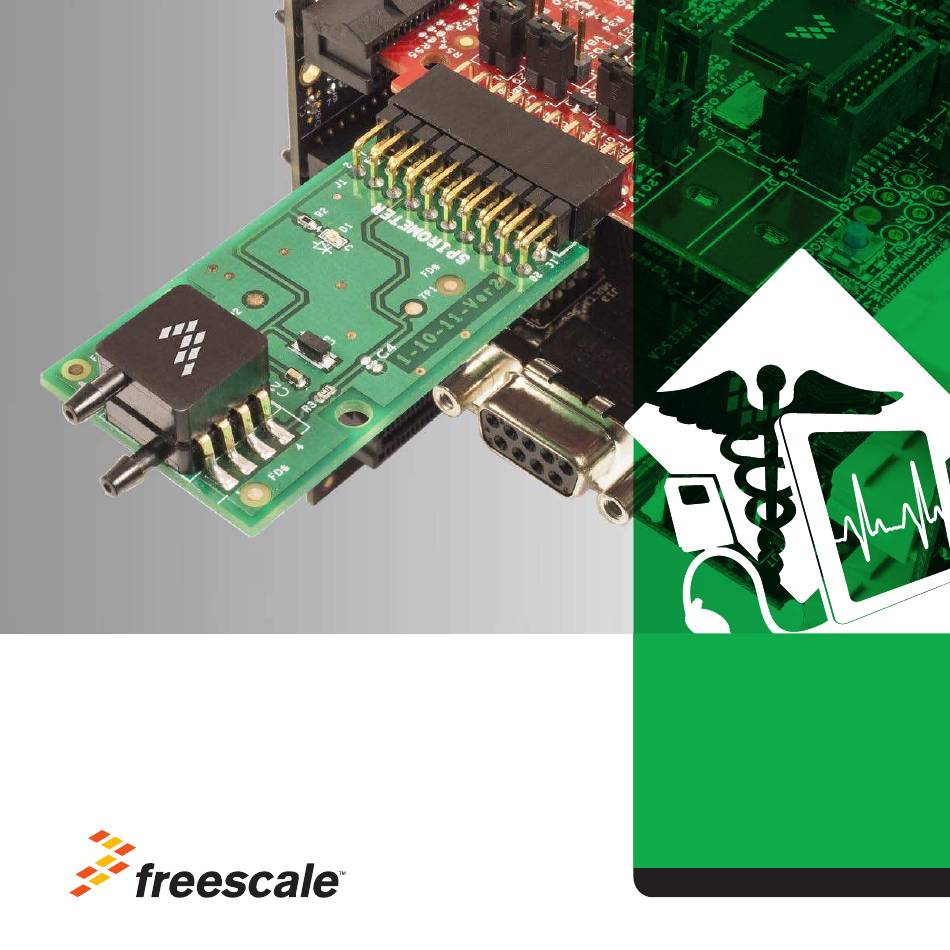

- Page 1 Quick Start Guide MED-SPI Spirometry Plug-in Board TOWER SYSTEM...
- Page 2 Pressure Sensor MED-SPI Freescale Tower System The MED-SPI plug-in board is compatible with the Freescale Tower System, a modular development platform that enables rapid prototyping and tool re-use through reconfigurable hardware. Elevate your design to the next level with this industrial powerhouse by...
- Page 3 MED-SPI Features MED-SPI is a development board which demonstrates the basic implementation of a spirometry application. It includes the MPXV7025DP differential pressure sensor, which allows calibrated pressure and air flow measurements ideal for medical respiratory monitoring devices. Features • Tower System compatible • Integrated Freescale MPXV7025DP...
- Page 4 Quick Start Guide Step-by-Step Installation Instructions In this quick start guide, you will learn how to set up the MED-SPI and Tower System and run the included demonstrated software. For more detailed infomation, review the user manual at freescale.com/healthcare. Verify the Jumper...
- Page 5 AN4325SW.zip. Open the File Connect a USB Cable Open the file MED-SPI K53.eww using IAR from \Software\MED-SPI_K53\app\ Connect a USB cable from the computer cdc\iar_ew\kinetis. to the USB port on the TWR-K53N512 board. Wait for drivers to install. Load the...
- Page 6 Quick Start Guide Step-by-Step Installation Instructions Continued Install the Change the Software Connection Install the Medical GUI software. It can Disconnect the USB cable from the be downloaded from freescale.com. TWR-K53N512 and connect it to the TWR-SER board. ® Note: Make sure you have already installed Java JDK on your computer.
- Page 7 TOWER SYSTEM Install Drivers for Look for the JM CDC Demo COM Number If the driver is not installed automatically, In the device manager, look for the COM open Device Manager and install drivers number assigned to “Virtual Com Port.” for JM CDC Demo.
- Page 8 Quick Start Guide Step-by-Step Installation Instructions Continued Attach Breathe the Hose into the Tube In the main window, click the SPI section Attach the hose to both the mouthpiece (pink) and follow the next steps: and the pressure sensor as shown in the image below.
- Page 9 TOWER SYSTEM MED-SPI Jumper Options The following is a list of jumper options. The default installed jumper settings are shown in white text within the green boxes. TWR-K53N512 Jumper Configurations Jumper Position Function Open R71 to ADC1_DM1 Open FlexBus Latch OE...
- Page 10 Quick Start Guide TWR-SER Jumper Configurations Jumper Position Function VBDEV Source USB Mode Select CLK_SEL Source...
- Page 11 TOWER SYSTEM...
-
Page 12: Warranty
Quick Start Guide Visit freescale.com/healthcareAFE for the latest information, including: • AN4325 application note Support Visit freescale.com/support for a list of phone numbers within your region. Warranty Visit freescale.com/warranty for complete warranty information. For more information, visit freescale.com/Tower Join the online Tower community at towergeeks.org Freescale and the Freescale logo are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. Tower is a...
