Summary of Contents for Jar Furniture KARLA

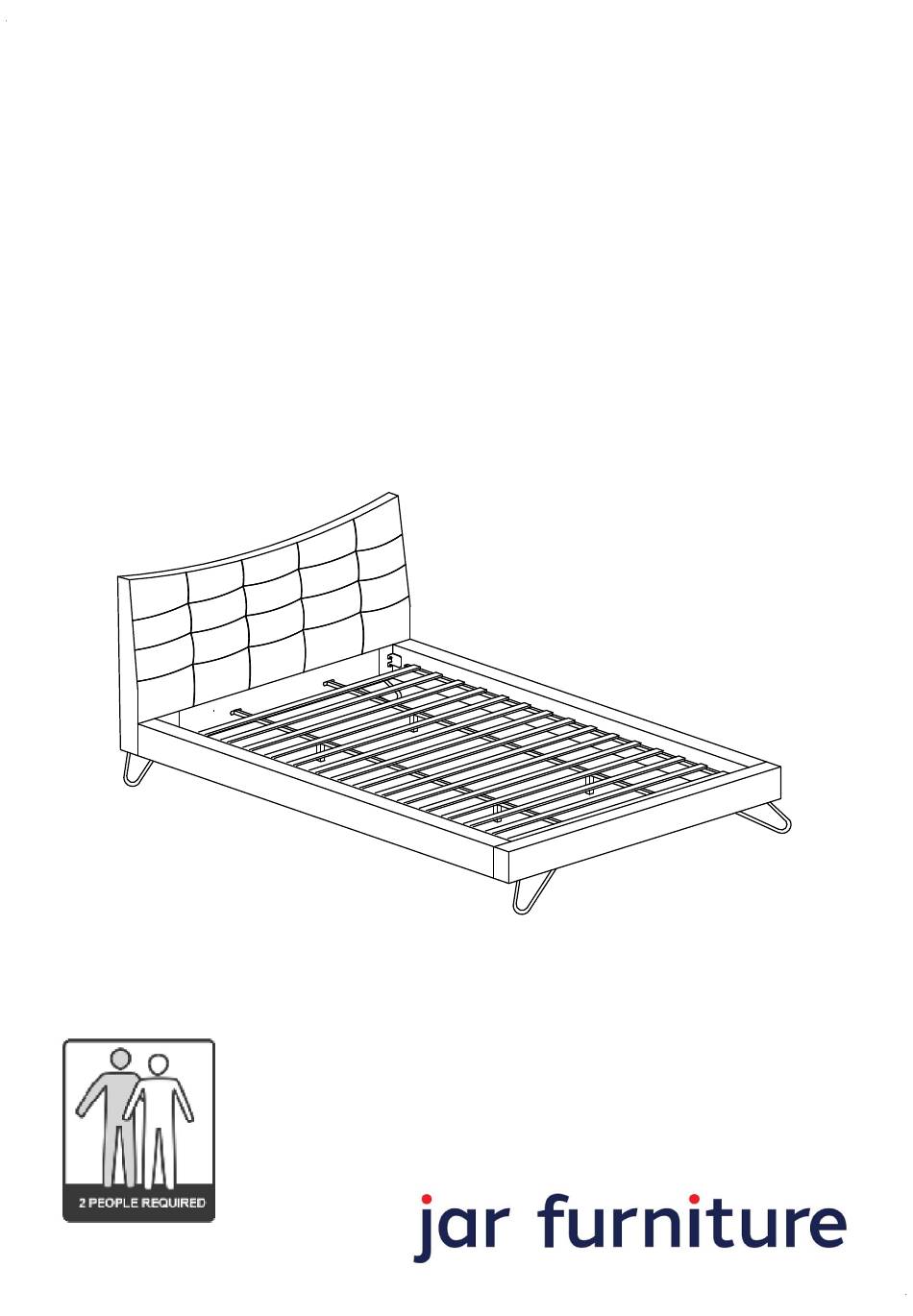

- Page 1 Assembly Instructions KARLA Queen Size Upholstered Bed Ver1.1...
- Page 2 WARNING WARNING FAILURE TO FOLLOW THESE BASIC STEPS CAN LEAD TO DAMAGE THAT IS NOT COVERED BY YOUR WARRANTY Lay out all of the components on a soft surface Read Instructions carefully. as if you were preparing to do a jigsaw puzzle. Check no parts are missing.
-
Page 3: What You Need
What you Need To Assemble the Body (Tools not provided) Phillips Head Screwdriver HEADBOARD (P1) METAL SUPPORT LEG WITH ADJUSTER (P5) CENTER RAIL (METAL) (P4) FOOTBOARD (P2) BED LEG (P7) LVL SLATS (P6) SIDE RAIL (P3) 8 x JCBB Screw 16 x JCBC Screw 10 x JCBC Screw 24 x Flat Washer... -
Page 4: Back View
Step 1 OPEN THE NON-WOOVEN COVER BACK VIEW (P1) TAKE OUT THE INNER BOX FOR THE METAL LEG Step 2 You will need: 8 x JCBC Screw M6 x 30mm (H2) 8 x Spring Washer " (P1) (H4) (H7) (H5) 8 x Flat Washer "... - Page 5 (P3) Step 3 (H4) (H1) You will need: 8 x JCBB Screw M8 x 40mm (P1) (H1) (H5) 8 x Spring Washer (H10) " (H4) (P1) 8 x Flat Washer " (H5) 1 x Allen Key M5 (H10) (P3) (P2) Step 4 (P4) You will need:...
- Page 6 (H9) Step 5 (H3) (H4) You will need: (H6) 4 x JCBC Screw M6 x 50mm (P6) (H3) 4 x Spring Washer " (P5) (H4) (P4) 4 x Flat Washer " (H6) 1 x Allen Key M4 (H9) Step 6 (H9) You will need: 6 x JCBC Screw...
-
Page 7: Completed Assembly
Step 7 You will need: (H8) 24 x CSK Screw M4 x 30mm (H8) (P6) SCREW THE SLAT COMPLETED ASSEMBLY Page 7...
