Summary of Contents for Jar Furniture HALO

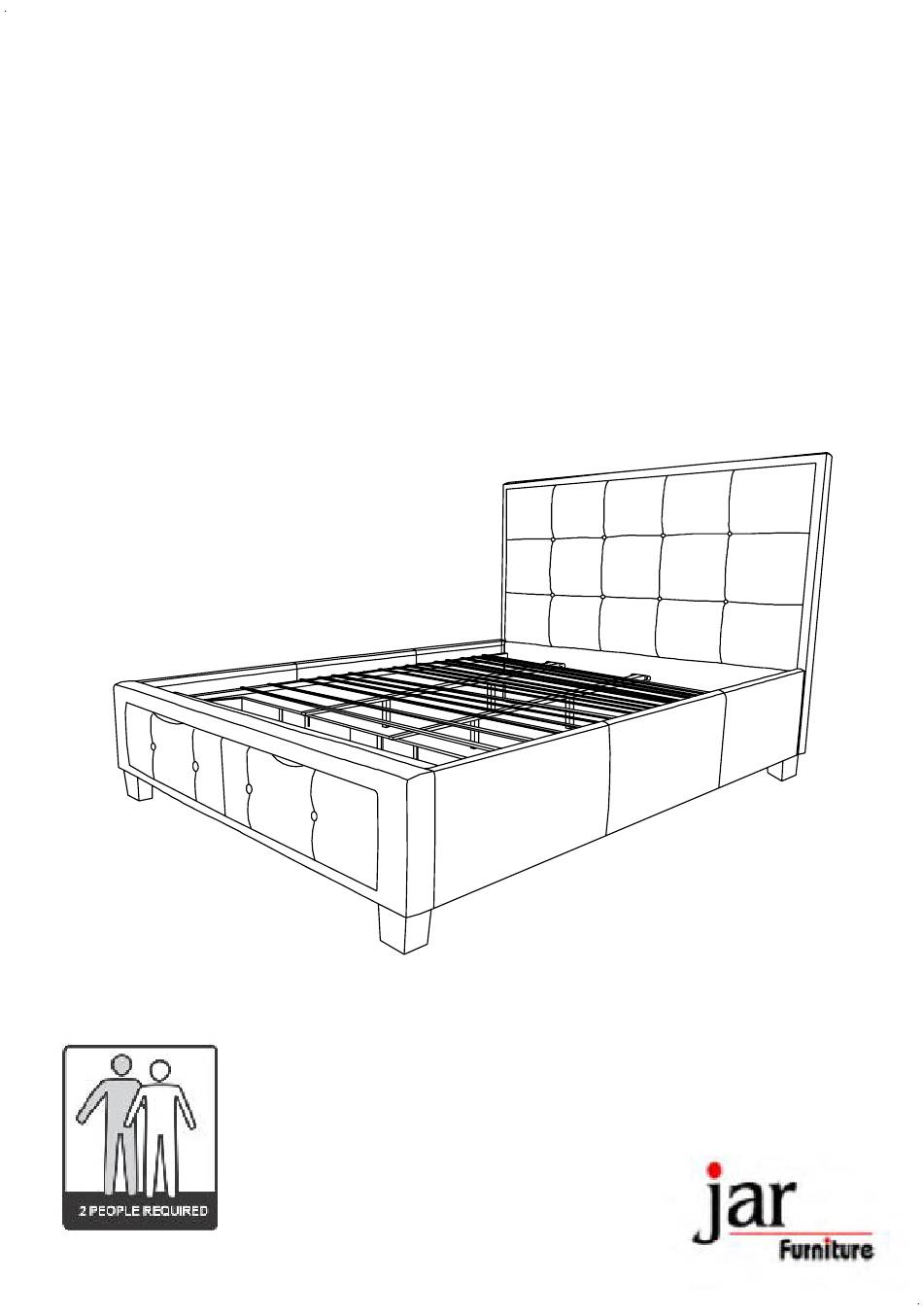

- Page 1 Assembly Instructions HALO Queen Size Upholstered Bed Ver1.1...
- Page 2 WARNING WARNING FAILURE TO FOLLOW THESE BASIC STEPS CAN LEAD TO DAMAGE THAT IS NOT COVERED BY YOUR WARRANTY Lay out all of the components on a soft surface Read Instructions carefully. as if you were preparing to do a jigsaw puzzle. Check no parts are missing.
- Page 3 What you Need To Assemble the Body (Tools not provided) Phillips Head Screwdriver LVL SLATS HEADBOARD (P5) (P1) METAL SUPPORT LEG WITH ADJUSTER-LONG (P6) CENTER RAIL (METAL) (P4) FOOTBOARD (P2) SIDE RAIL BED LEG (P3) (P7) SUPPORT LEG WITH ADJUSTER -SHORT (P8) 30 x Spring Washer...
- Page 4 (P8) (H10) (H2) Step 1 (H6) (H5) You will need: (P7) 4 x JCBB Screw M8 x 100mm (H2) 4 x Spring Washer " (H5) 4 x Flat Washer " (H6) 1 x Allen Key M5 (H10) (H6) (H5) (H2) (P7) (P7) (H10)
- Page 5 (H9) (H4) (H5) Step 3 (H7) You will need: (P5) 4 x JCBC Screw M6 x 50mm (H4) (P6) (P4) 4 x Spring Washer " (H5) 4 x Flat Washer " (H7) 1 x Allen Key M4 (H9) Step 4 (P4) You will need: 8 x JCBC Screw...
- Page 6 (H9) (H4) Step 5 (H5) (H7) You will need: 6 x JCBC Screw M6 x 50mm (H4) 6 x Spring Washer " (H5) (P5) 6 x Flat Washer " (H7) SCREW THE SLAT 1 x Allen Key M4 (H9) Step 6 You will need: 24 x CSK Screw (H8)
