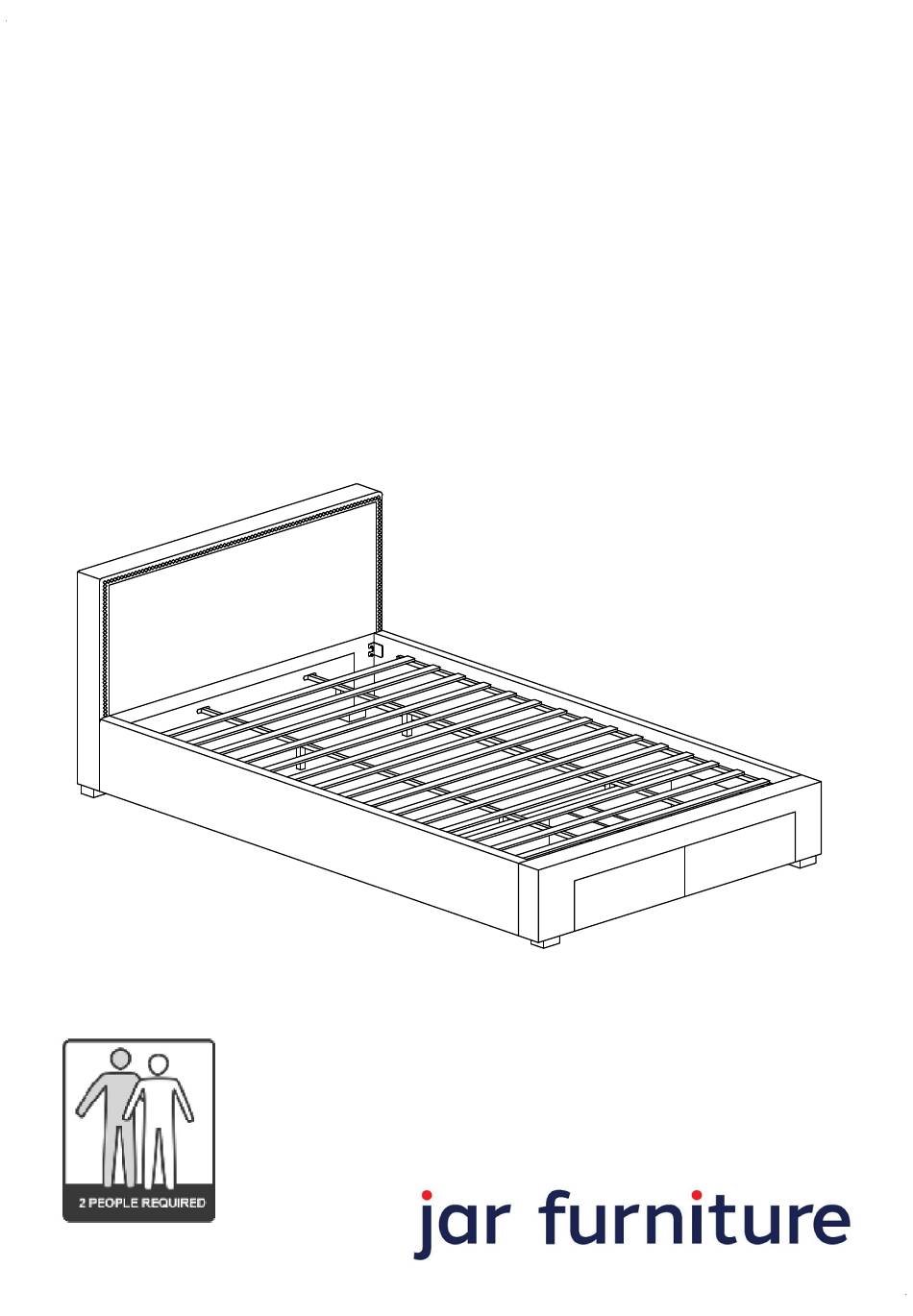

- Page 1 Assembly Instructions CITTA Queen Size Upholstered Bed Ver1.1...
- Page 2 WARNING WARNING FAILURE TO FOLLOW THESE BASIC STEPS CAN LEAD TO DAMAGE THAT IS NOT COVERED BY YOUR WARRANTY Lay out all of the components on a soft surface Read Instructions carefully. as if you were preparing to do a jigsaw puzzle. Check no parts are missing.
-
Page 3: What You Need
What you Need To Assemble the Body (Tools not provided) Phillips Head Screwdriver LVL SLATS HEADBOARD (P6) METAL SUPPORT (P1) LEG WITH ADJUSTER-LONG (P5) CENTER RAIL (METAL) (P4) FOOTBOARD (P2) BED LEG (P7) SIDE RAIL (P3) SUPPORT LEG WITH ADJUSTER -SHORT (P8) 30 x Spring... - Page 4 (H10) (P8) (H2) Step 1 (H6) (H5) (P7) You will need: 4 x JCBB Screw M8 x 60mm (H2) 4 x Spring Washer " (H5) 4 x Flat Washer " (H6) (P2) 1 x Allen Key M5 (H10) (H6) (H5) (H2) (P1) (P7)
- Page 5 Step 3 You will need: (P4) 8 x JCBC Screw M6 x 30mm (H3) 8 x Spring Washer " (H5) 8 x Flat Washer " (H6) (H6) (H5) (H3) 1 x Allen Key M4 (H9) (H9) (H9) (H4) Step 4 (H5) You will need: (H7)
- Page 6 Step 5 (H9) (H4) You will need: (H5) 6 x JCBC Screw M6 x 50mm (H7) (H4) 6 x Spring Washer " (H5) 6 x Flat Washer " (H7) (P6) 1 x Allen Key M4 (H9) SCREW THE SLAT Step 6 (H8) You will need: 24 x CSK Screw...
-
Page 7: Completed Assembly
Step 7 COMPLETED ASSEMBLY Page 7...
