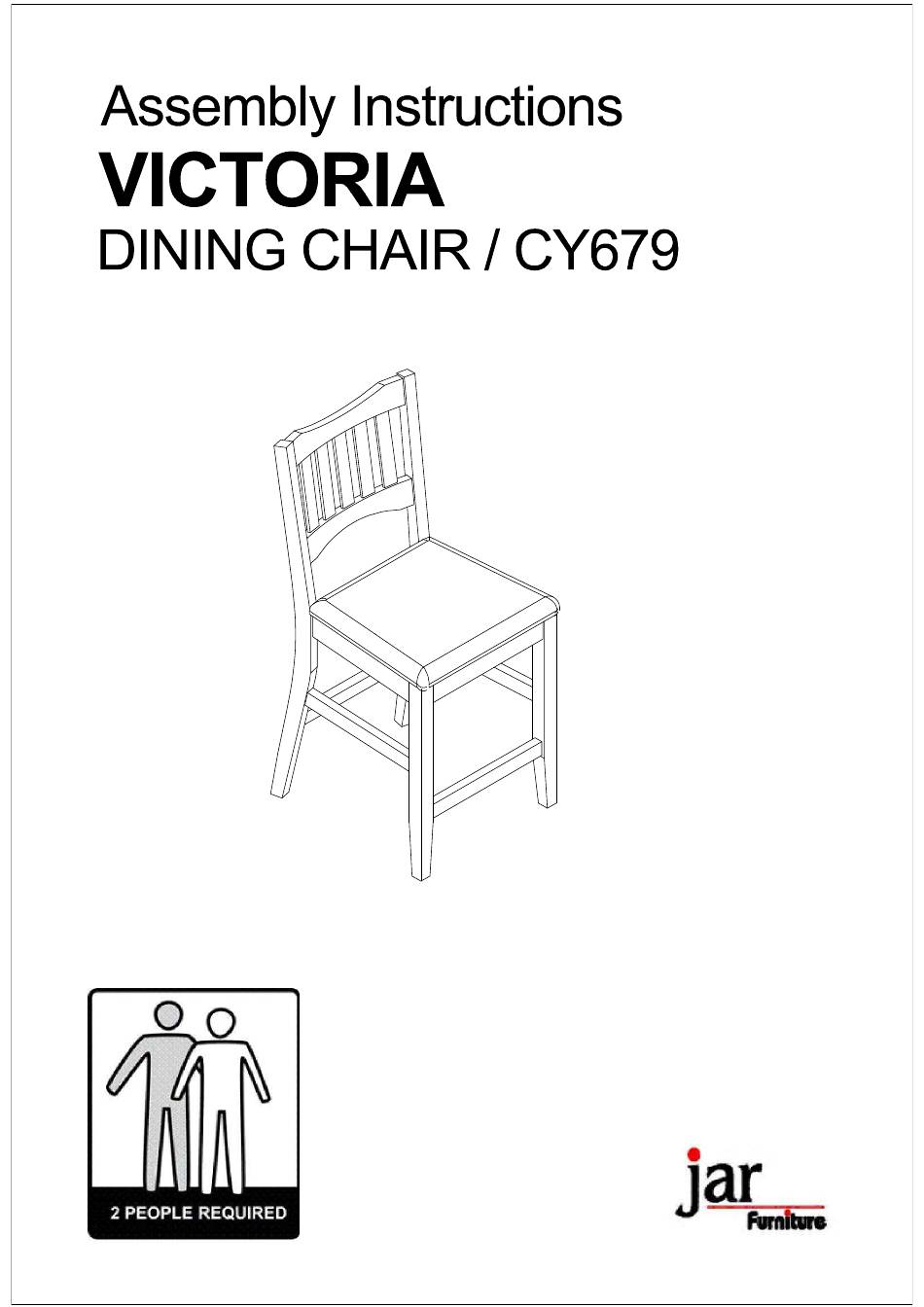

Summary of Contents for Jar Furniture VICTORIA CY679
- Page 2 WARNING WARNING FAILURE TO FOLLOW THESE BASIC STEPS CAN LEAD TO DAMAGE THAT IS NOT COVERED BY YOUR WARRANTY Lay out all of the components on a soft surface Read Instructions carefully. as if you were preparing to do a jigsaw puzzle. Check no parts are missing.
- Page 3 1xAllen key 4 x Medium 11 x Washers 11 x Washers 1 x Allen key Allen Bolts Allen Bolts Allen Bolts (H5) (H6) (H2) (H3) (H4) (H1) Timber Screws Timber Screws (H7) (H8) Please make sure you have all these parts before you start. Page 3...
- Page 4 Step 1 You Will need: Timber Screws (H7) (H7) (H7) (H7) Step 2 You Will need: You Will need: 1 x Allen key (H6) H5 H4 4 xMedium Allen Bolts (H2) 4 x Washers (H4) 4 x Washers (H5) Page 4...
- Page 5 Step 3 You Will need: You Will need: 1 x Allen key (H6) Allen Bolts (H3) 3 x Washers (H4) 3 x Washers (H5) Page 5...
- Page 6 Step 4 You Will need: You Will need: 1 x Allen key (H6) 4 xMedium Allen Bolts (H1) 4 x Washers (H4) 4 x Washers (H5) Step 5 You Will need: You Will need: Timber Screws (H7) (H7) (H7) (H7) (H7) Page 6...
- Page 7 Step 6 Step 7 You Will need: You Will need: Timber Screws (H8) (H8) (H8) (H8) (H8) (H8) Page 7...
- Page 8 Step 8 Page 8...
