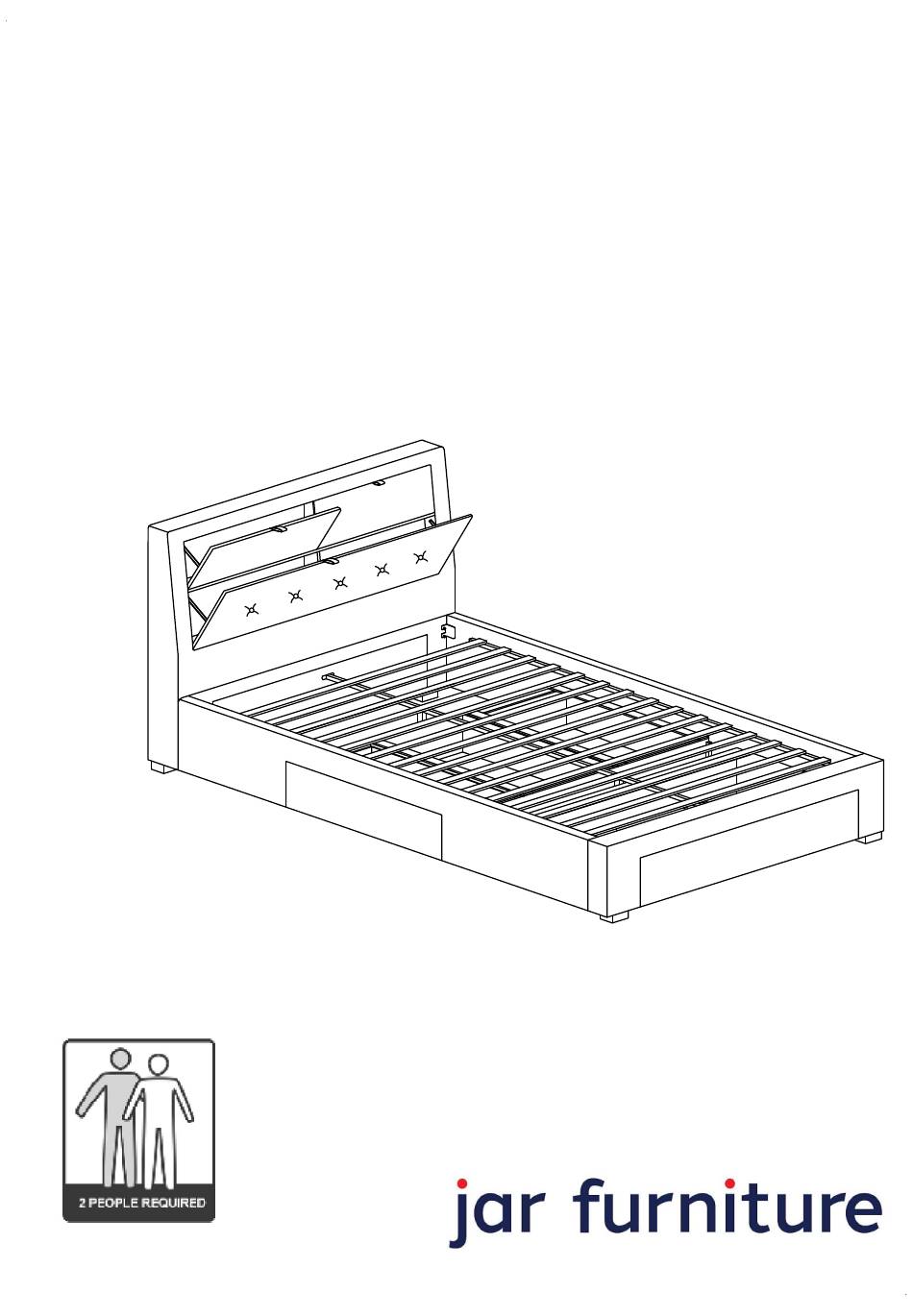

Jar Furniture DOVE Assembly Instructions Manual

Double size upholstered bed

Download this manual

Assembly Instructions

DOVE

Double Size Upholstered Bed

Ver1.1

Table of Contents

Page 1 Assembly Instructions DOVE Double Size Upholstered Bed Ver1.1...
Page 3: What You Need
What you Need To Assemble the Body (Tools not provided) Phillips Head Screwdriver HEADBOARD LVL SLATS (P1) (P5) METAL SUPPORT LEG WITH ADJUSTER-LONG (P6) CENTER RAIL (METAL) (P4) FOOTBOARD (P2) BED LEG (P7) SIDE DRAWER SUPPORT LEG BOX (P9) SIDE RAIL WITH ADJUSTER (P3) -SHORT...
Page 4: You Will Need
(H11) (P8) (H2) Step 1 (H6) (H5) (P7) You will need: 4 x JCBB Screw M8 x 60mm (H2) 4 x Spring Washer " (H5) 4 x Flat Washer " (H6) (H9) 1 x Allen Key M5 (H11) (H6) (H5) (H2) (P7) (P1)
Page 5 (P9) Step 3 You will need: (P3) 4 x JCBC Screw (H10) M6 x 50mm (H4) (H4) (H5) (H6) 4 x Spring Washer " (H5) 4 x Flat Washer " (H6) 4 x CSK Screw M4 x 38mm (H9) (P9) 1 x Allen Key M4 (H10) (H9)
Page 6 Step 5 You will need: 4 x JCBC Screw M6 x 50mm (H4) 4 x Spring Washer " (H5) 4 x Flat Washer " (H6) 4 x CSK Screw M4 x 38mm (P9) (H9) (P9) 1 x Allen Key M4 (H9) (H10) (P3)
Page 7 Step 7 (H10) (H4) (H5) You will need: (H7) 2 x JCBC Screw M6 x 50mm (P5) (H4) 2 x Spring Washer " (H5) (P6) (P4) 2 x Flat Washer " (H7) 1 x Allen Key M4 (H10) Step 8 (H10) (H4) You will need:...
Page 8: Completed Assembly
Step 9 (H8) You will need: 24 x CSK Screw M4 x 30mm (H8) (P5) SCREW THE SLAT COMPLETED ASSEMBLY Page 8...
