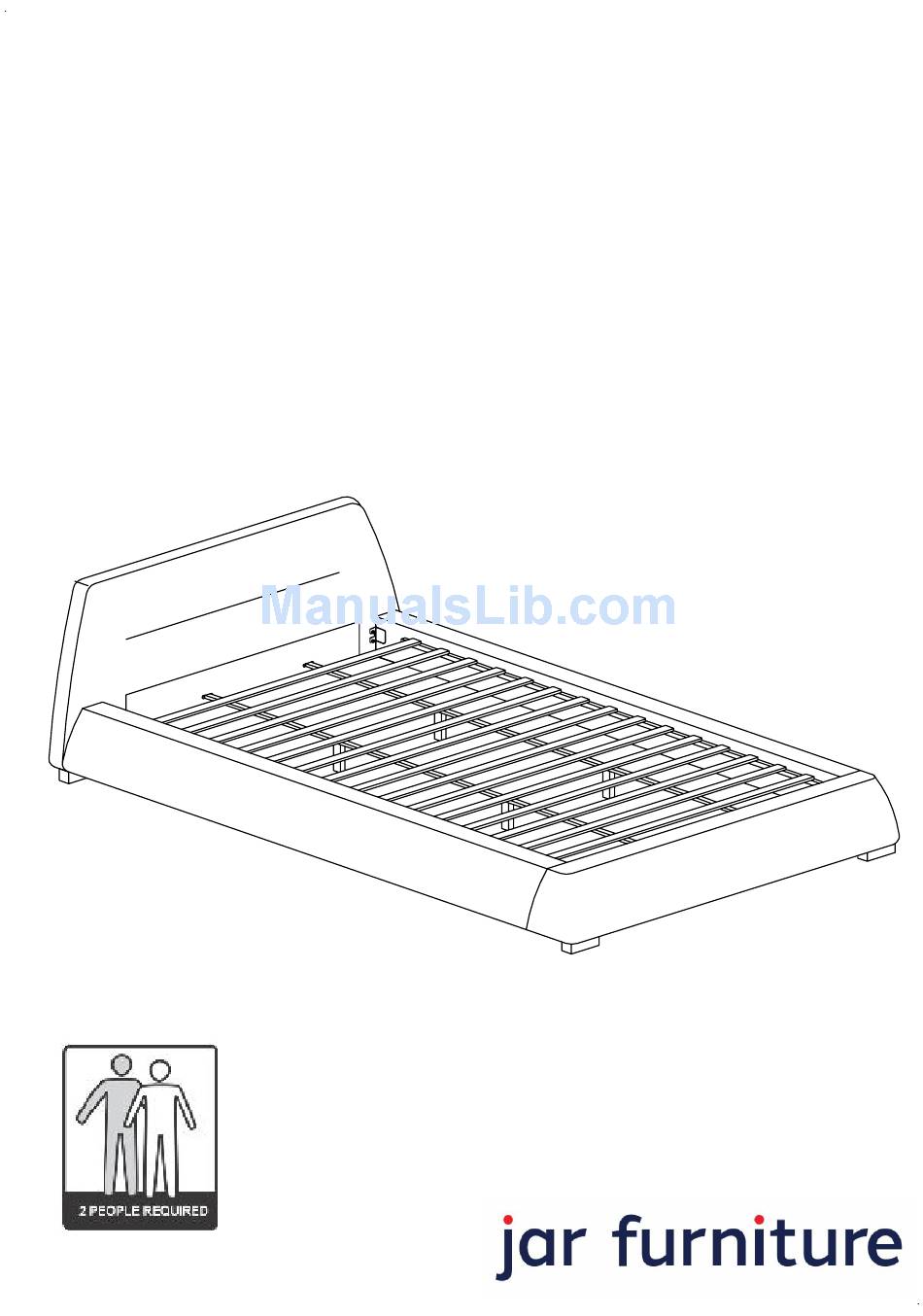

- Page 1 Assembly Instructions MILAN Queen Size Upholstered Bed Ver1.1...
- Page 3 What you Need To Assemble the Body (Tools not provided) Phillips Head Screwdriver HEADBOARD (P1) LVL SLATS CENTER RAIL (P5) (METAL) (P4) SIDE RAIL (P3) FOOTBOARD METAL SUPPORT (P2) LEG WITH BED LEG ADJUSTER (P7) (P6) 30 x Spring Washer 12 x JCBB Screw 8 x JCBC Screw 10 x JCBC Screw...
- Page 4 Step 1 You will need: (H5) (P1) (H4) 4 x JCBB Screw M8 x 40mm (H1) 4 x Spring Washer (P7) " (H4) (H1) (H9) 4 x Flat Washer " (H5) 1 x Allen Key M5 (H9) (P2) Step 2 (H5) You will need: (H1)
- Page 5 Step 3 (P4) You will need: 8 x JCBC Screw M6 x 30mm (H2) 8 x Spring Washer " (H4) 8 x Flat Washer " (H5) (H5) (H4) (H2) 1 x Allen Key M4 (H8) (H8) (H8) (H3) Step 4 (H4) You will need: (H6)
- Page 6 (H8) (H3) Step 5 (H4) (H6) You will need: 6 x JCBC Screw M6 x 50mm (H3) 6 x Spring Washer " (H4) (P5) 6 x Flat Washer " (H6) SCREW THE SLAT 1 x Allen Key M4 (H8) Step 6 You will need: 24 x CSK Screw (H7)
