Tennant T300 Operator's Manual

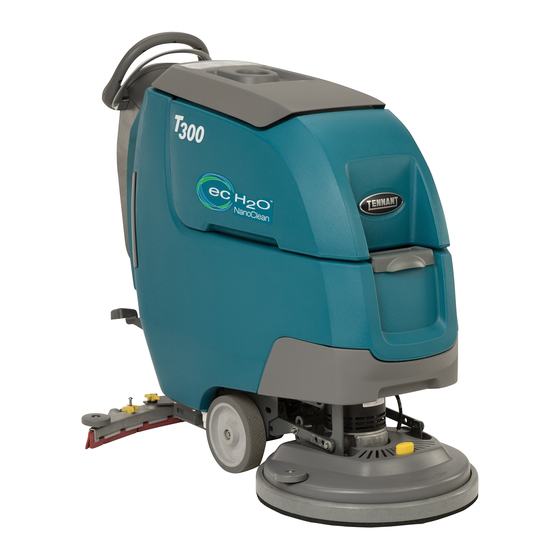

Automatic floor scrubber with ec-h2o nanoclean technology
Hide thumbs Also See for T300:
Table of Contents

Advertisement

Quick Links

Hygenic
Fully Cleanable Recovery Tank
TennantTrue
Parts
IRIS
a Tennant Technology
Pro-Panel
t
Controls
Insta-Click
t
Magnetic Disk
Europe
For the latest Parts manuals and other
language Operator manuals, visit:
www.tennantco.com/manuals
T300
T300e
Automatic Floor Scrubber
English
Operator Manual
Rev. 02 (02-2016)
*9014525*
EN
9014525
