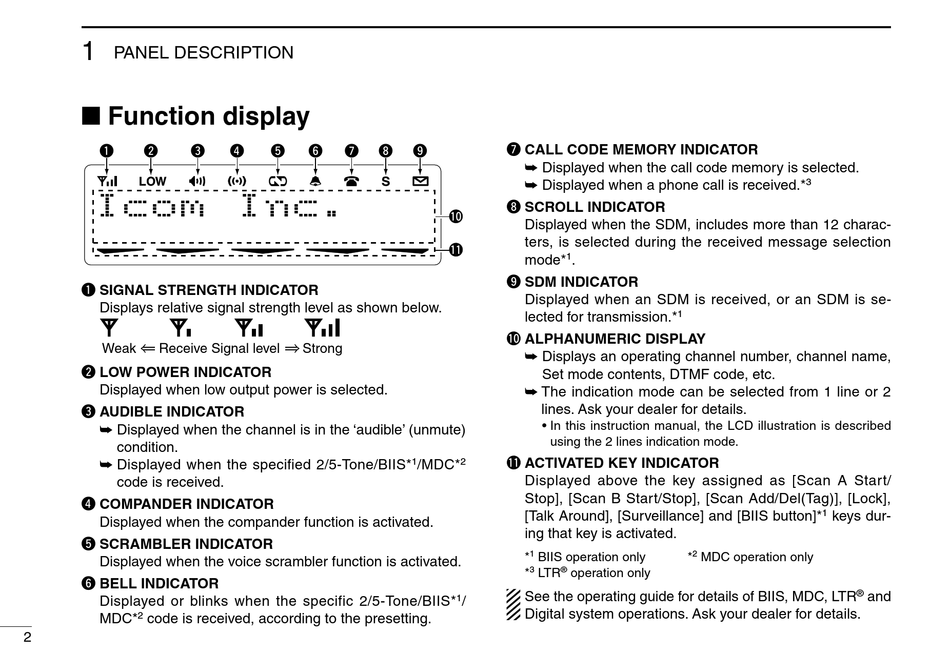

PANEL DESCRIPTION
■ Function display
q w e
I c o m
q SIGNAL STRENGTH INDICATOR
Displays relative signal strength level as shown below.
Weak Receive Signal level
w LOW POWER INDICATOR
Displayed when low output power is selected.
e AUDIBLE INDICATOR
➥ Displayed when the channel is in the 'audible' (unmute)
condition.
➥ Displayed when the specified 2/5-Tone/BIIS*
code is received.
r COMPANDER INDICATOR
Displayed when the compander function is activated.
t SCRAMBLER INDICATOR
Displayed when the voice scrambler function is activated.
y BELL INDICATOR
Displayed or blinks when the specific 2/5-Tone/BIIS*
MDC* 2 code is received, according to the presetting.
2
r t y u i
I n c .
Strong
u CALL CODE MEMORY INDICATOR
o
➥ Displayed when the call code memory is selected.
➥ Displayed when a phone call is received.*
i SCROLL INDICATOR
!0
Displayed when the SDM, includes more than 12 charac-
ters, is selected during the received message selection
!1
mode* 1 .
o SDM INDICATOR
Displayed when an SDM is received, or an SDM is se-
lected for transmission.*
!0 ALPHANUMERIC DISPLAY
➥ Displays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
➥ The indication mode can be selected from 1 line or 2
lines. Ask your dealer for details.
• In this instruction manual, the LCD illustration is described
using the 2 lines indication mode.
!1 ACTIVATED KEY INDICATOR
1 /MDC* 2
Displayed above the key assigned as [Scan A Start/
Stop], [Scan B Start/Stop], [Scan Add/Del(Tag)], [Lock],
[Talk Around], [Surveillance] and [BIIS button]*
ing that key is activated.
* 1 BIIS operation only
3 ®
* LTR operation only
See the operating guide for details of BIIS, MDC, LTR
1 /
Digital system operations. Ask your dealer for details.
3
1
1 keys dur-
* 2 MDC operation only
®
and
