16000 Base Appliance DIMM Configuration

The 16000 Base appliance has a default memory configuration of 32 GB: 4 x 8GB.
You can upgrade to 64GB or 128GB. Use the applicable upgrade procedure below.
32GB Default Configuration

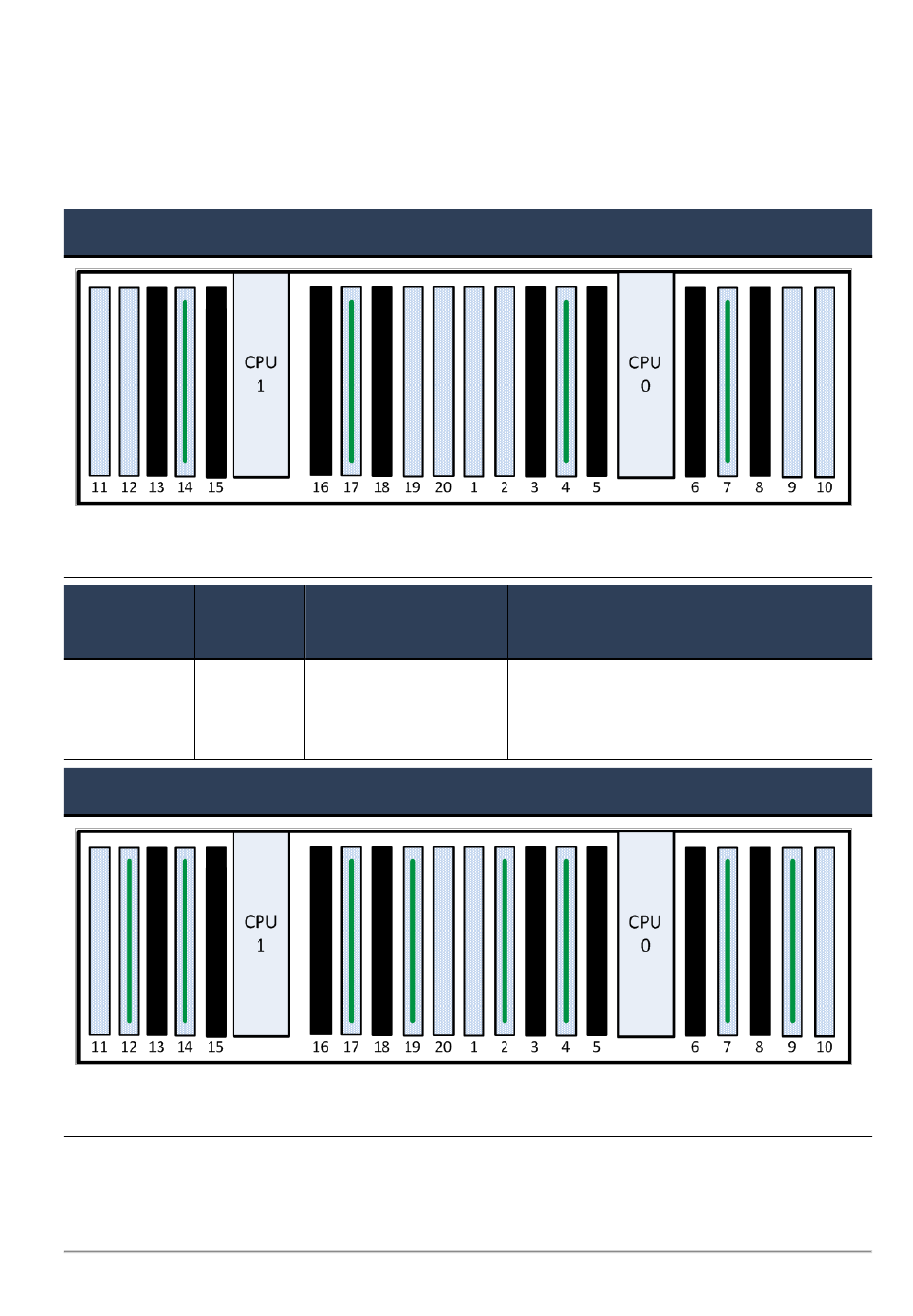

(front panel of the 16000 Base appliance is at the bottom of the diagram)
To upgrade Use
to DIMMs
64GB 8 x 8GB
64GB Upgraded Configuration
(front panel of the 16000 Base appliance is at the bottom of the diagram)
16000, 26000, and 28000 Appliances Installing and Removing Memory
Top View
Procedure
Install eight 8GB
DIMMs
Top View
16000, 26000, and 28000 Appliances Replacing Memory | 10
Slots
In socket numbers 2, 4, 7, 9, 12, 14, 17,
and 19
