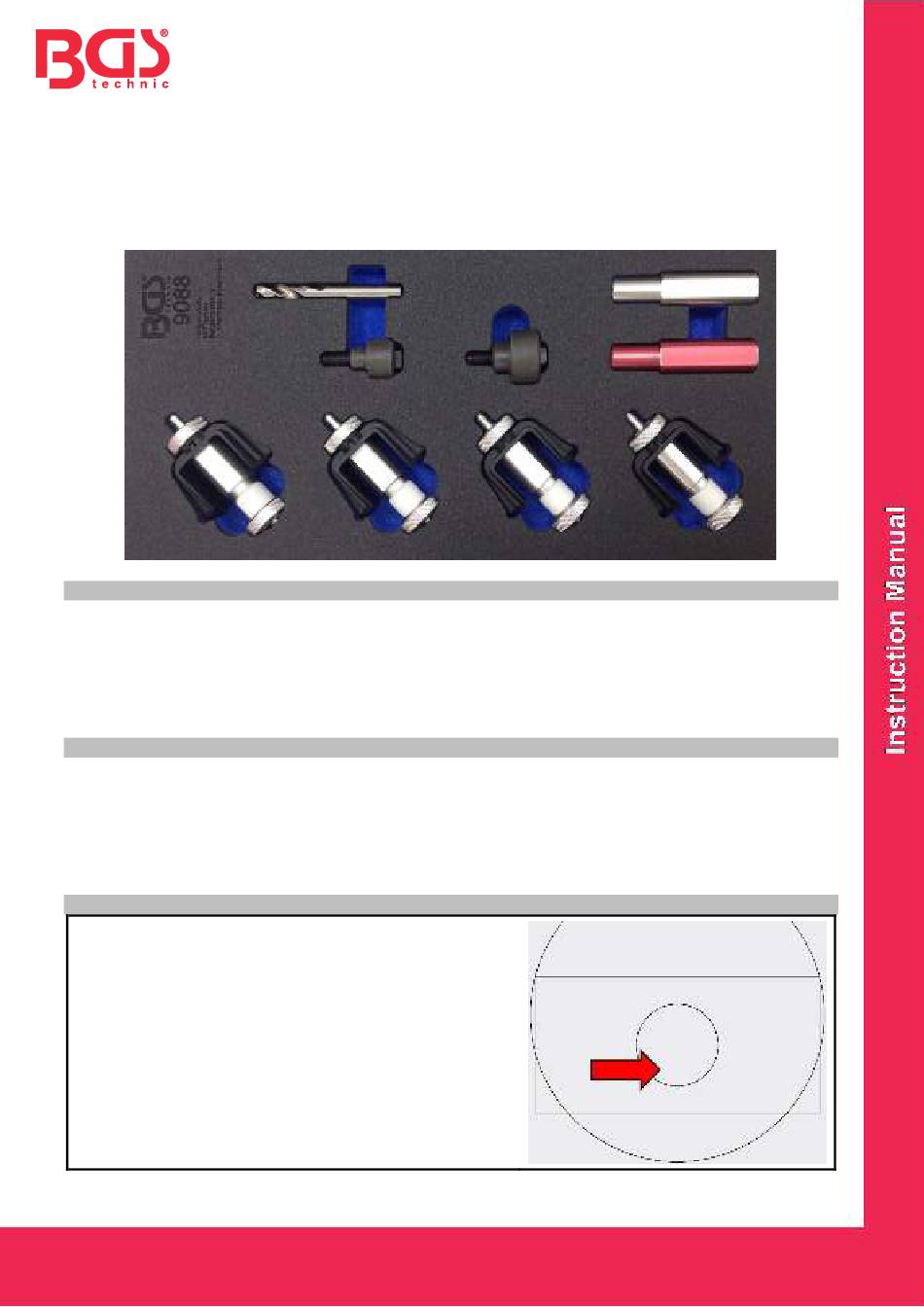

BGS technic 9088 Instruction Manual

INTENDED USE

The assembly kit is used to replace defective parking sensor brackets or to punch holes in
unprepared plastic bumpers. Handle the tools with care and carefully clean the bracket and locator
pin after use. Lightly grease the screws and threads in the hole punches before use. Please do not
use any kind of air tools to pull the hole punches. Use the hole punches solely on plastics. Using it in
other materials such as metals will destroy the hole punch.

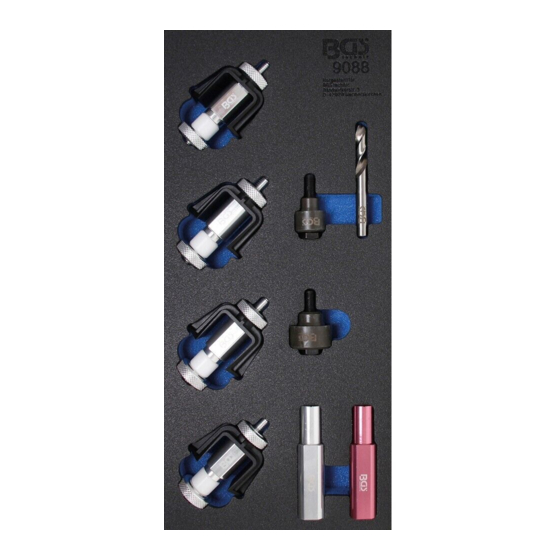

CONTENTS

Hole punch Ø 18.2 mm
Hole punch Ø 26.0 mm
Locator pin, red
Locator pin, silver
Holding fixture, 4 pcs.
HSS twist drill Ø 10.2 mm

USE

Many plastic bumper providers only offer a version
without parking assistance. As a result, the holes for the
parking sensors are often missing in the new plastic
bumpers. They have to be made first. First check to see
of the positions of the parking sensors are marked on the
plastic bumper. If not, find the positions with the aid of the
repair manual from the vehicle manufacturer or the
plastic bumper manufacturer. The positioning could looks
like shown in figure.
BGS technic KG
Bandwirkerstr. 3
D-42929 Wermelskirchen
Tool Tray 1/3:
Assembly Tool Set
for Parking Sensor Holders
Tel.: 02196 720480
Fax.: 02196 7204820
mail@bgs-technic.de
BGS 9088
www.bgstechnic.com
© BGS technic KG, Copying and further use not allowed
