Manitowoc Grove GRT880 Service Manual page 162

BOOM

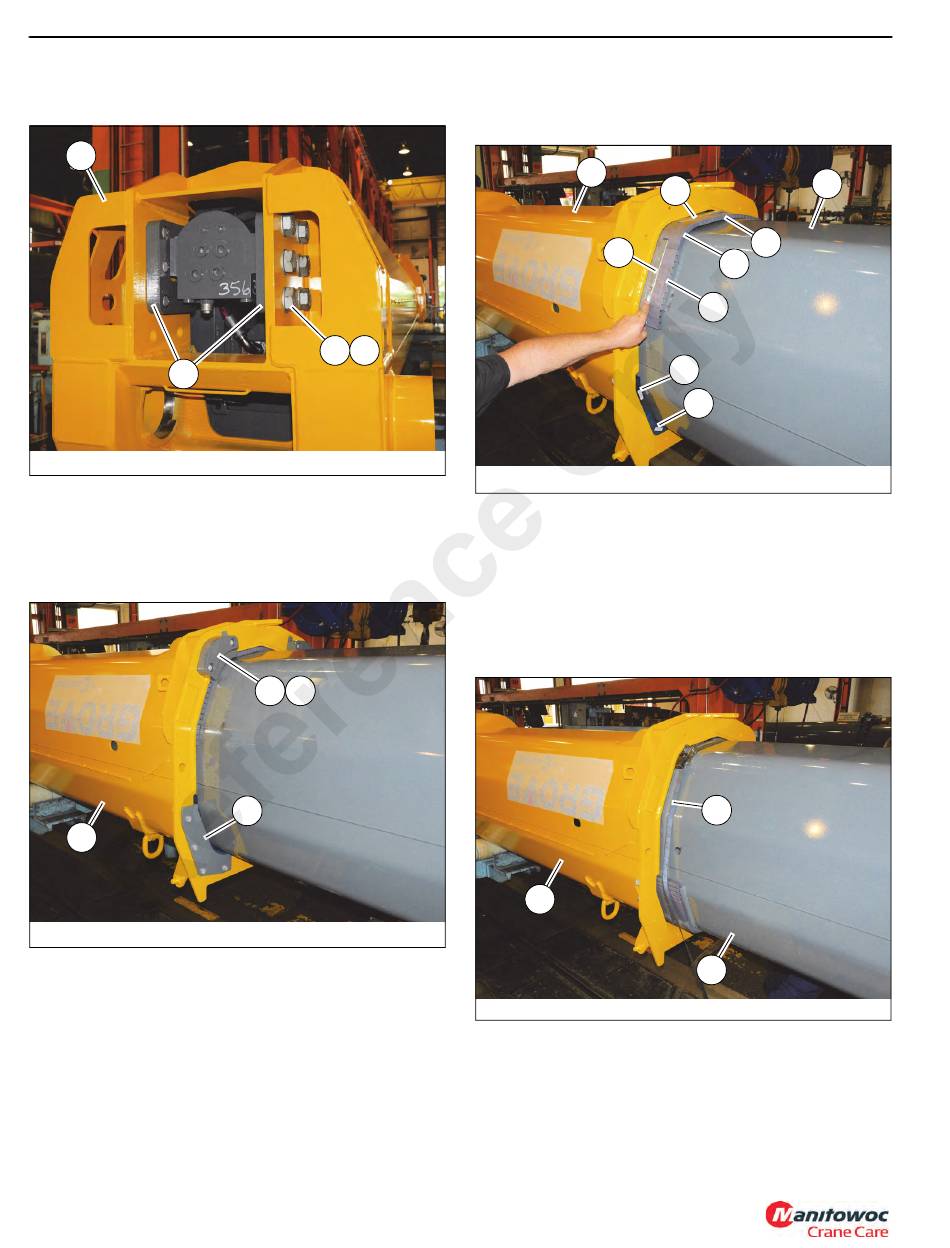

5. Remove six bolts (134) and washers (119) from left and
right sides of base (101) (see Figure 4-129).
101
513
9044-73
6. Pull tele 1 (201) out of base (101) several feet.
7. Remove bolts, washers, lock washers, and nuts (130,
124, 125, 136) securing bottom left and right (as
oriented) side stop plates (113) to front of base (101)
(see Figure 4-4).
101
9044-71
8. Remove bolts (141) securing top left and right (as
oriented) side shims (128) and stop blocks (124) to front
of base (101) (see Figure 4-4).
9. Remove left and right side bottom and middle wear pad
adjusting bolts (132) and twelve set screws (128) from
front of base (101).
4-16
119 134
FIGURE 4-3
124 128
113
FIGURE 4-4
Published 10/19/2017, Control # 618-00
GRT880 SERVICE MANUAL
10. Remove shims (110), flexible wear pads (105, 106, 109),
and bars (111, 112) from between base (101) and tele 1
(201) (see Figure 4-5).
101
112
9044-70
11. Slightly raise tele 1 (201), then remove left and right side
wear pads (103, 104) from between base (101) and tele
1 (201) (see Figure 4-5).
12. Pull tele 1 (201) out of base (101) until wear pads at rear
of tele 1 (201) are exposed. Wrap ratchet strap (S)
around wear pads to prevent them from falling upon the
removal of tele 1 (201) from base (101) (see Figure 4-6).
Remove tele 1 (201) from base (101).
101
9044-68
201
111
105
109
106
103
104
FIGURE 4-5
S
201
FIGURE 4-6
