OPERATING & PARTS MANUAL

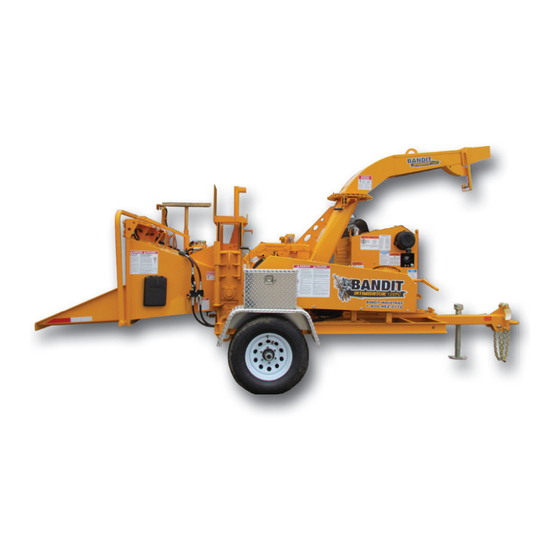

INTIMIDATOR™ 12XPC
INTIMIDATOR™ 12XPC
Model No: __________________________
Serial No: __________________________
Engine Make: _______________________
Serial No: __________________________
Clutch Make: ________________________
Model: ___________ S/N _____________
DEALER:
Name: _____________________________
Address: ___________________________
City/State: __________________________
Phone No: __________________________
Delivery Date: _______________________
Copyright 1/18
ATTENTION:
Depending on what replacement parts you are ordering, we will need the following information:
CHIPPER COMPONENTS
ENGINE COMPONENTS
CLUTCH COMPONENTS
Serial Number
Brand
Brand
Model Number of Chipper
Engine Serial Number
Clutch Serial Number
Engine Model Number
Clutch Model Number
MANUFACTURED BY BANDIT INDUSTRIES, INC
PHONE:
989
561-2270
(
)
PHONE:
800
952-0178 IN USA
(
)
FAX:
989
561-2273 ~ SALES DEPT.
(
)
FAX:
989
561-2962 ~ PARTS/SERVICE
(
)
WEBSITE:
www.banditchippers.com
6750 Millbrook Rd. • Remus, MI 49340 • 1-989-561-2270

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INTIMIDATOR 12XPC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bandit INTIMIDATOR 12XPC

Summary of Contents for Bandit INTIMIDATOR 12XPC

  • Page 1 Serial Number Brand Brand Model Number of Chipper Engine Serial Number Clutch Serial Number Engine Model Number Clutch Model Number MANUFACTURED BY BANDIT INDUSTRIES, INC PHONE: 561-2270 PHONE: 952-0178 IN USA FAX: 561-2273 ~ SALES DEPT. FAX: 561-2962 ~ PARTS/SERVICE WEBSITE: www.banditchippers.com...
  • Page 2 CALIFORNIA PROPOSITION 65 WARNING ADVERTENCIA Breathing diesel engine Respirar gases de escape de exhaust exposes you to motores diesel expone chemicals known to the quÍmicos conocidos por el estado State of California to cause de California como causales de cancer and birth defects or cáncer y defectos congénitos u other reproductive harm.
  • Page 3 ACCIDENTS INVOLVING BRUSH CHIPPERS CAN AND SHOULD BE PREVENTED... Operator training and enforcement of safety policies are ESSENTIAL! Bandit Industries, Inc. Safety Booklet...
  • Page 4 If you have purchased a Brush Bandit® Chipper second hand, know someone that has, or have resold a Brush Bandit® Chipper - please contact us. Please fax us at (989) 561-2273 or e-mail us at www. banditchippers.com with the chipper model number, chipper serial number, and current owners name, address, etc.
  • Page 5 The following safety features have been developed for, and are currently being used on Brush Bandit® Chippers. They are available from your local Bandit® Dealer. Some are new and some have been presented before. We urge you to update your chippers with these devices.
  • Page 6 Also supply the inside width dimension of the inlet end of the infeed hopper or existing 18” deep folding infeed pan. Folding infeed pans were optional on Bandit Chippers for many years. The 18” deep infeed pan became standard equipment on Bandit hand-fed chippers in February 1994.
  • Page 7 The chipper hood must NEVER be opened, or pushed closed if the disc/drum is turning. When you supply the chipper model and serial number, this kit is available through your local Bandit® dealer. You also need to supply us with the engine make and model, then we will include the electric schematic to wire the device into the engine system.
  • Page 8 Have you heard reports or seen your employees bending over and reaching into the infeed hopper, near the feedwheels? Along with the wooden push paddle and the infeed hopper tray, Bandit Industries, Inc. began installing on their mechanical feed hand fed chippers the patented “Last Chance Stop” cable system. This system has been standard on Bandit®...
  • Page 9 FEED CONTROL BAR FEED CONTROL BAR R E V E R Brush Bandit® Chippers that are designed to be hand fed have F E E D a simple, easy to reach feed control bar located across the top and A R D F O R W down both sides of the infeed hopper.
  • Page 10 Don’t slam the chipper hood open! It damages the hinge! The hinge needs periodic lubrication to properly operate and to avoid excessive wear! The hinge, hood rest, and hood require scheduled inspection. If they are damaged, replace them! Use only a Bandit factory replacement part.
  • Page 11 Insert a small branch into the feedwheel(s). If the chips discharge properly, the chipper is clear and normal operation may resume. Bandit Industries, Inc. Safety Booklet viii...
  • Page 12 Striped tape can be obtained through your local Bandit® dealer. The striped tape can be ordered by the foot under part number 900-9901-69.
  • Page 13 When the need arises to replace a machine component with a decal attached, be sure and replace the decal. Replacement decals are available, and can be purchased from the manufacturer or your Bandit Dealer. Peel back about half of the backer paper on the decal. Position it on the flat, dry, clean surface so it is smooth and secure.
  • Page 14 Training is essential! It is extremely important for everyone who operates a wood chipper to be trained. Operating instructions for the chipper are included in Bandit manuals, decals, and training videos with each chipper sold. We also highly recommend that you use the NAA chipper safety video.
  • Page 15 11. _____ The customer has received instruction and fully understands that warranty will not apply if the machine is operated with replacement parts or equipment not manufactured or recommended by Bandit Industries, Inc. 12. _____ The customer has received, been advised, and understands the manuals, and the Safety/Service video supplied with the chipper.
  • Page 16 Copyright 2-17 FORM #Q-111 DATE PURCHASE: ______________________ TO BE RETURNED AFTER THIRTY (30) DAYS OF OPERATION MODEL: ________________________________ SERIAL NUMBER: _______________________ Please return to: Customer Data Department 6750 Millbrook Road DEALER NAME: ________________________ Remus, MI 49340 _______________________________________ Phone: (800) 952-0178 in USA Phone: (989) 561-2270 Fax: (989) 561-2273...

  • Page 17: Table Of Contents

    FRAME & ACCESSORY COMPONENTS ........104 FUEL & HYDRAULIC TANK COMPONENTS ....... 108 SERVICE RECORD ................112 BANDIT CONTROLS ................113 NOTICE ANY PART, PORTION, DESIGN, NUMBER, SPECIFICATION, AND/OR DIMENSION IN THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE BY THE MANUFACTURER.

  • Page 18: Introduction & Warranty

    NOTICE The producer of this Bandit product reserves the right to make any modifi cations or revisions to the design or specifi cations of its machine without advance notice. The producer also reserves the right to change machine and part prices as needed without advance notice.

  • Page 20: Serial Number Locations

    WORK ORDER NUMBER LOCATIONS NOTICE 1. S/N on side of frame 2. W/O # on top of tongue The engine information is located on the engine block. The clutch information is located on the clutch plate (if equipped). Bandit Copyright 1/18...
  • Page 21 Operators must at all times be located within machine. You may obtain additional copies of this easy reach of all feed control and shut‑off devices manual from your Bandit Dealer. when the unit is running. They must be attentive and Before operating machine, you must have all prepared to activate the devices.
  • Page 22 15 minutes to allow control devises operate properly. They must function, the system to warm up to operating temperature. shift and position smoothly and accurately at all times. Faulty controls can cause personal injury! Bandit Copyright 1/18...
  • Page 23 “Daily Start Up & Maintenance”. Make no shields in place and properly secured. modifi cations to your equipment unless specifi cally DANGER recommended or requested by Bandit Industries Inc. DANGER Never feed any materials that might contain wires, stones, nails, metal objects, or any foreign...
  • Page 24 After engagement raise engine RPM to Block full throttle. Engaging and disengaging the clutch at high engine RPM will quickly and excessively wear out clutch plates as well as bearings. Refer to clutch manufacturer’s manual for proper service and operation. Bandit Copyright 1/18...
  • Page 25 The ANSI required control bar is designed to reverse the feedwheels when pushed. Check the direction and proper operation of the control bar before operating the chipper. CORRECT OPERATION OF FEED CONTROL BAR PUSH TO FEEDING REVERSE FEEDING Bandit Copyright 1/18...
  • Page 26 Butt End Of Brush First Feed Brush Into Chipper Turn Face Away And Keep Moving Release Travel Path Travel Path Bandit Copyright 1/18...
  • Page 27 NOTICE resulting in serious injury or death to workers nearby. The Bandit has only been run for a short time to DANGER test proper hydraulic pressures, possible leaks, etc.
  • Page 28 You will cause engine damage, machine damage and possible personal injury! DANGER NEVER sit, stand, lay, climb or ride anywhere on this machine while it is running, operating, or in transit. You will be injured. Bandit Copyright 1/18...

  • Page 29: Equipment Specifications

    (Dimensions & weights will vary depending on optional equipment) Model 12XPC Height: 98” (2.6 m) Length: 192” (5.4 m) Width: 79” (2.0 m) Weight: 4900 lbs. (3630kg) Fuel Tank Capacity: 30 gal. (113L) Hydraulic Tank Capacity: 12 gal. (45L) Bandit Copyright 1/18...
  • Page 30 MODEL 12XPC DECALS DECAL LOCATIONS Decal locations may vary, these are general locations. 2,18 7,9,34 58,59 19,23,24 2,13 39,60,61 3,18,31, 4,13 32,56 50,63 14,40,41, 42,43,64 16,27,28,29, 2,19 30,36,53 11,20 21,26 2,12,24 5,39 8,37,51, 52,54 Bandit Copyright 1/18...
  • Page 31 Brush Chippers Are Very Dangerous... SPD-52 Never Open Bottom Clean-Out Door... SPD-53 ...Always Use Some Sort Of Mechanical Device... SPD-62 Stay Clear...Tongue Jack ID-67 Bandit Industries Inc...USA INST-02 Yoke Lock Hole INST-03 Yoke Lock Bar INST-04 Arrow INST-05 Yoke Lift Up / Down...
  • Page 32 MODEL 12XPC DECALS DECAL LOCATIONS Decal locations may vary, these are general locations. 2,18 7,9,34 58,59 19,23,24 2,13 39,60,61 3,18,31, 4,13 32,56 50,63 14,40,41, 42,43,64 16,27,28,29, 2,19 30,36,53 11,20 21,26 2,12,24 5,39 8,37,51, 52,54 Bandit Copyright 1/18...
  • Page 33 SPW-30 Cable/Rope Shear Req’D Maintenance SPW-31 Explosion Hazard 900-8900-32 Basic Safety Decal Kit (Options may require additional decals) 900-8912-62 Bandit Model 12XPC Logo Decal Kit 900‑2909‑94 Red Reflective Decal 900‑2909‑95 Amber Reflective Decal 900‑9901‑69 Reflective Conspicuity Tape (Red/White) Some decals are for optional equipment. Decal locations may vary, these are general NOTICE locations.
  • Page 34 DECALS DECALS Decals located on your Bandit equipment contain useful information to assist you in operating your equipment safely. Some of the decals on your machine and their location are shown in this section. It is very important that all decals remain in place and in good condition on your machine. Please follow the care and instructions given below.
  • Page 35 MODEL 12XPC DECALS Bandit Copyright 1/18...
  • Page 36 DECALS MODEL 12XPC Bandit Copyright 1/18...

  • Page 37: Autofeed Options

    For part numbers on the hydraulic portion of the autofeed systems refer to pages 98 - 99 of the chipper manual. Refer to the Bandit Controls Manual for more information Do not power wash the digital tach hour meters. Pressure causes unwarranted damage. Do not spray tach, this will void warranty.
  • Page 38 Pulses per revolution. On magnetic pick-up machines, this setting will be the number of teeth on the gear or sprocket it is reading. On alternator pick-up machines, the setting will need to be obtained from your local dealer or Bandit Industries. Mag Pick-up Magnetic pick-up, also called pick-up probe.
  • Page 39 - Replace solenoid and/or cartridge. - System pressure. - Check and readjust per manual specifi cations. - Faulty tach. - Consult local dealer or Bandit Industries. No Signal - Engine not running. - Normal operating condition. - Bad signal wire.
  • Page 40 APPROXIMATE DIGITAL AUTOFEED SETTINGS (FOR ALL AUTOFEED SYSTEMS - REFERENCE ONLY) NOTICE Refer to the Completion/Check Sheet, that is shipped with the machine for the correct engine rpm. If needed, contact your local dealer or Bandit Industries. Some Current Maximum Feed...
  • Page 41 To reposition, read the following A. Follow the travel path. steps: B. Feed only from the side of the infeed tray. A. Reverse the feedwheels, reposition C. Release the limb or log. the limb or log, and feed again. D. Turn away and keep moving after releasing B. The log may need to be removed from the the limb or log and from the infeed hopper. machine to a safe work area and trimmed before attempting to feed again if it still will not feed. Bandit Copyright 12/20 INSERT...
  • Page 42 SHUT DOWN 1. Stop feeding material. 7. Shut the engine off. 2. Allow the machine to clear out any remaining 8. Remove the key, and make sure it stays in your material. possession. 3. Make sure the top feedwheel is in the lowered 9. Allow the machine to cool down position. 10. Remove all debris, wood chips, sawdust, leaves, 4. Throttle the machine down. etc. from the machine. 5. Disengage the clutch. 11. If transporting the machine, follow the transport 6. Wait for the chipper drum or disc to come to a procedures. complete stop. Bandit Copyright 12/20 INSERT...
  • Page 43 MODEL 12XPC CONTROLS MACHINE ORIENTATION REFERENCE R I G Bandit Copyright 1/18...

  • Page 44: Controls

    10. Hydraulic Control Valves 11. Swivel Discharge 12. Discharge Chute 13. Discharge Flipper Adjuster 14. Autofeed Controls “Optional” 15. Engine Controls, Adjusters 16. Electric Engine Throttle Adjuster (if equipped) 17. “Bandit” Lever Throttle Adjuster (if equipped) 14,15,16,17 Bandit Copyright 1/18...
  • Page 45 To raise the yoke, push the yoke lift control handle towards the infeed hopper of the machine. The yoke lift control handle is in the flotation position when it is in the center location. Bandit Copyright 1/18...
  • Page 46 FEED CONTROL BAR SHOULD PIVOT WITH LITTLE EFFORT, BY HAND OR WITH A PULL ON “LAST CHANCE” CABLES. LUBRICATE PIVOT POINTS OF FEED CONTROL BAR WEEKLY. ADJUST PIVOT TENSION WITH THE TIGHTNESS OF INSIDE FRICTION NUTS. SECURE ADJUSTMENT WITH OUTSIDE JAM NUTS. Bandit Copyright 1/18...
  • Page 47 CABLE (TIGHT WHEN ELECTRIC DISABLE PLUG PADLOCK PLUGGED IN AND SOCKET ELECTRIC PADLOCK IS IN!) PADLOCK DISABLE PLUG SOCKET HOOD PIN CHIPPER HOOD HOOD PIN CHAIN HOOD DOOR DRUM CHIPPER DISC CHIPPER Bandit Copyright 1/18...
  • Page 48 The sliding air vent can be adjusted by loosening the knob and moving the vent to the open or closed position. There is one on each side of the drum housing. Bandit Copyright 1/18...
  • Page 49 - Test the force it takes to activate the Hydraulic Bump Bar with a belt tension gauge or similar type of spring gauge. The force should be approximately 25-30 lbs (11-14 kg). - If everything else checks out, the detent in the bump bar valve may need to be checked, repaired, or replaced. Bandit Copyright 1/18...
  • Page 50 To decrease you would push in the knob or turn the handle the opposite way. “Bandit” Lever Lock Cable Throttle System (if equipped): The Bandit throttle system has (2) positions, HIGH and LOW. Engine R.P.M. is controlled by moving the lever from one position to the other.

  • Page 51: Transportation Procedures

    24. Do not drive too fast for road conditions or exceed speed regulations for equipment towing. Machine must be hauled level and the towing vehicle must be sized to handle hitch weight, towing weight, and braking requirements. Bandit Copyright 1/18...

  • Page 52: Maintenance

    Failure to properly break-in your engine may result in poor bearing and piston ring surfaces. NOTICE The Bandit has only been run for a short time to test proper hydraulic pressures, possible leaks, etc. The fuel tank will be empty. Fuel is provided through a small auxiliary tank for testing. This immensely helps maintain safety in our manufacturing facility and while shipping.
  • Page 53 A loose belt will slip and overheating problems and/or engine failure. then glaze over. Once they slip you must replace them. Check hydraulic pump drive belts also if equipped. See pages 56 - 57 for procedures. Bandit Copyright 1/18...
  • Page 54 Check for proper lubrication, and engagement stability. Do not rely on tongue jack for operational tension adjustment, frequently adjust and lubricate per PTO clutch manufacturer’s manual. Bandit stabilization. Industries, Inc. does not warranty clutch failures. 30. Check the discharge direction: Remove transport bolt and nut, then make sure the 25.
  • Page 55 5. Check chipper bearings and chipper sheave: 10. Lubricate “Bandit” lever throttle cable: Check, retighten all bearing bolts, bearing lock If the machine is equipped with a “Bandit” lever collars, and also belt sheave bushings to correct throttle system, lubricate inner throttle cable and torques.
  • Page 56 31. Review all safety procedures on decals, from manual, and from video. 32. Wear all applicable safety equipment: hard hat, face shield, gloves, eye protection, ear protection, etc. 33. Remember to check EVERYTHING on the checklist. Bandit Copyright 1/18...
  • Page 57 Check and grease or oil wheel bearings, follow axle MFG. instructions. Check and adjust brakes, follow axle MFG. instructions. Check and adjust discharge chain tension (if equipped). 10. Lubricate “Bandit” lever throttle cable (if equipped). 3 MONTH CHECK LIST Every three months these checks must be made: OK REPAIRED Replace hydraulic filter(s) after first 10 hours then quarterly or every 400 hours.
  • Page 58 8 Lug Hubs (22mm x 1.5 Studs) ......450 - 500 ft.-lbs. Torque (610 - 678 Nm) (Flange Nut) 10 Lug Hubs (3/4” - 16 Studs) ......450 - 500 ft.-lbs. Torque (610 - 678 Nm) (Consult axle manufacturers manual shipped with each machine for specific axle‑stud‑wheel combination lug nut torques.) Bandit Copyright 1/18...
  • Page 59 MAINTENANCE PAINT CARE To help keep up the appearance of your Bandit equipment and reduce the possibility of surface rust follow these steps: 1. The machine should be washed on a regular basis with a non-abrasive mild detergent and then rinsed thoroughly.
  • Page 60 MAINTENANCE ITEM WHAT TO CHECK RESULTS 1. Sharp knives - Bandit approved 1. Proper sharpening procedures new knives or professionally will pay dividends! Maintaining...
  • Page 61 See if they are 10. Autofeed stuck or full of debris warranty. 3. Refer to the autofeed manual for troubleshooting and the owners manual for additional troubleshooting and information on settings. Bandit Copyright 1/18...
  • Page 62 5 Chain Driven Components Dry Lube (swivel discharge, etc.) 6 Pintle Eye Ring Grease to reduce wear 7 Bandit Throttle Cable Lubricate inner cable & ends SAE 10W/30 8 Discharge Swivel Plates 3 Months Grease as needed 9 Clutch Grease per MFG’s instructions...
  • Page 63 Use as a reference only, locations may vary depending on options or component manufacturer. NOTICE Lubrication point instructions are described on the machine, in the Lubrication & Coolant Section and Maintenance Section of this manual, or component manufacturer’s manual. Bandit Copyright 1/18...
  • Page 64 - in. 14. “Bandit Lever Throttle Cable (if equipped): If the machine is equipped with a “Bandit” lever throttle system, lubricate inner throttle cable and cable ends with a cable lube or SAE 10W/30 oil every month.
  • Page 65 Each knife installed in every new machine at Bandit should be approximately .120” (3.0 mm) from has the Knife Saver used on it before leaving the the highest knife.
  • Page 66 KNIFE SHARPENING Only Bandit knives and hardware are recommended for use in your Bandit chippers. Only then can you be assured of a quality product that fi ts and performs the best to the standards of excellence that is expected from the Bandit chipper.
  • Page 67 KNIFE CHANGING PROCEDURE Only Bandit knives and hardware are recommended for use in your Bandit chippers. Only then can you be assured of a quality product that fi ts and performs the best to the standards of excellence that is expected from the Bandit chipper.
  • Page 68 Drum Head Knife Anvil Bolts Anvil Bolts Anvil Clamp Torque To Torque To Plate Specs Specs Anvil Adjuster Anvil Puller Anvil Adjuster Anvil To Anvil Bolt Block Bolt Knife Gauge Bandit Copyright 1/18...
  • Page 69 2. In order to check the clearance one person will need to climb into the infeed hopper. Use a feeler gauge or the anvil to knife gauge supplied by Bandit to check the clearance of the first knife to the anvil.
  • Page 70 3. Remove the drum lock pin. 4. Use a feeler gauge or the anvil to knife gauge supplied by Bandit to check the clearance of the fi rst knife to the rope/line shear. Check the clearance at the left and right sides of the knife.
  • Page 71 6. Apply Loctite 243 (blue) to the adjustment hex bolts and torque them to 180 ft-lbs (244 Nm). 7. Tighten the rope/line shear adjustment covers. 8. Remove the drum lock pin and carefully rotate the chipper drum to make sure all the knives clear the rope/line shear. Bandit Copyright 1/18...
  • Page 72 2. deflected 1/4” (6.4 mm). 11. Reinstall beltshield. 4. Record push or pull down force. The force should be 12 lbs (5.4 kg). 5. Adjust the belt tension if the force falls outside of this range. Bandit Copyright 1/18...
  • Page 73 Pump Drive Belts: 1/4” (6.4 mm) deflection needed adjustment or replacement. with 12 lbs (5.4 kg) of force. GOOD BELT WORN SHEAVE WORN BELT BELT BELT BELT SPACE SHEAVE SHEAVE SHEAVE Bandit Copyright 1/18...
  • Page 74 Do not spend excessive time trying to remove the pin and coupler. If problems occur during pin and coupler removal, contact your nearest dealer or Bandit Industries.
  • Page 75 (WITH THE GRIP TIGHT BEARING BEHIND FEEDWHEEL MOTOR) Your Bandit Chipper may be equipped with a tapered lock style (Grip Tight) feedwheel bearing on the hydraulic motor side of the feedwheel and a conventional (set screw) style on the opposite side. With the Grip Tight bearing this gives a very positive locking system to the feedwheel shaft.
  • Page 76 Insert a small branch into the feedwheel(s). If the chips discharge properly, the chipper is clear and normal operation may resume. Bandit Copyright 1/18...
  • Page 77 With the pin in position 4 the Easy Climb System will have approximately 0” of travel before you start BOTTOM spring tension. Use this position when chipping small YOKE brush type material. BOTTOM MOUNT ADJUST ACCORDINGLY AS SPRINGS STRETCH. Bandit Copyright 1/18...
  • Page 78 If these measurements are not within specifi cations, the bump bar needs to be checked for worn, loose, damaged, or broken parts. Repair or replace parts as needed and/or contact the nearest dealer or Bandit Industries for assistance. Using a belt tension gauge, the bump bar should activate with approximately 25-30 lbs (11-14 kg).
  • Page 79 VIEW FROM THE BOTTOM SIDE OF THE TRAY WITH COVERS REMOVED Lubricate the pivots points with a dry lube weekly or as needed. Bandit Copyright 1/18...
  • Page 80 9. Block and chain the top wheel up before doing any work inside throat 10. After the maintenance is complete, reverse the steps before putting the chipper back to work. Slide Box Style Yoke Pivot Style Yoke Bandit Copyright 1/18...
  • Page 81 CLICKS TO BACK OFF 5200 LBS. 12” x 2” Elec. or Hyd. .040” (1 mm) 10 TO 16 For additional brake adjustment procedures consult the axle manufacturer manual. For additional parts break downs and service videos go to www.dexteraxle.com Bandit Copyright 1/18...

  • Page 82: Hydraulics

    7. Remove padlock from hood pin. 8. Press down and hold hood spring lock pin (on disc chippers). 9. Retract hood pin. DO NOT RESTART UNTIL ALL GUARDS AND HOODS ARE SECURELY AND PROPERLY INSTALLED. D-03 6/17 Bandit Copyright 1/18...
  • Page 83 >95 >95 Flash Point >240°C/464°F >200°C/395°F >210°C/410°F >220°C/430°F >220°C/430°F >240°C/464°F Oxidations Stability >9,000 Hours >3,000 Hours >3,000 Hours >3,000 Hours >3,000 Hours >3,000 Hours (ASTM D0943) Cold Start-up, -40°C/-40°F -34°C/-29°F -26°C/-14°F 19°C/-3°F -9°C/16°F -4°C/24°F No Load, Max Bandit Copyright 1/18...
  • Page 84 Choose a fl uid that has test results in these areas for best results. Based on the varying temperatures of the area where Bandit equipment is used, and the high demand and loads placed on this equipment, Bandit has fi lled each hydraulic system with Petro‑Canada’s Hydrex XV All Season Hydraulic Fluid for maximum protection and performance.
  • Page 85 These typical hydraulic flows and relief pressure settings are with the engine at full RPM. All settings are subject to change! CAUTION After the initial start‑up of the machine and after any replacement of hydraulic components, that fittings and hoses should be re-checked for leaks and clearances. Bandit Copyright 1/18...
  • Page 86 MODEL 12XPC HYDRAULICS HYDRAULICS THE BANDIT HYDRAULIC SYSTEM The Bandit is equipped with a very efficient, simple • If the Bandit’s hydraulic system is kept clean and hydraulic system. Each component is capable of the hydraulic pressures are not increased beyond the...
  • Page 87 Anything which has been disassembled or tampered with will not be warranted. Items being returned must be clean. All hydraulic components must have all hosing ports plugged. Failure to plug ports will allow debris to enter components which will void warranty. Bandit Copyright 1/18...
  • Page 88 MODEL 12XPC HYDRAULICS YOUR BANDIT CHIPPER IS EQUIPPED WITH A HYDRAULIC PRESSURE ADJUSTMENT. GAUGE BALL VALVE From Pump To Tank Main Main Relief Feedwheel Relief Block Control Valve Flow Divider Main Relief Block Autofeed Motor Block Relief Bottom Allen Motor...
  • Page 89 Turn clockwise using a 1/4” allen wrench to increase pressure, but do not surpass maximum of the specifi ed PSI (bar). Previous valves require 7/32” allen wrench or a fl at head screw driver. HEX HEAD PLUG: Remove to access the relief valve. Bandit Copyright 1/18...
  • Page 90 Readjust relief pressure setting if needed, if not needed, shut off engine and remove plug and pressure gauge. Reassemble control valve to optional motor or cylinder. Check for hydraulic leaks. 10. Relief valve pressure should be checked and/or readjusted every month for best performance. MAINTAIN HYDRAULIC PRESSURE AT SPECIFIED PSI (bar). Bandit Copyright 1/18...
  • Page 91 11. Flow control is on for too long 11. Open flow control MAINTAIN FEEDWHEEL HYDRAULIC PRESSURE AT SPECIFIED PSI (bar) Follow typical hydraulic flow and relief settings on pages 69 ‑ 74. Follow proper hydraulic oil requirements on pages 67 - 68. Bandit Copyright 1/18...
  • Page 92 2. If your machine has Live Hydraulics, see page 77 on how to check a hydraulic motor. 3. If your machine does not have Live Hydraulics, contact your local dealer or Bandit Industries for instructions. NOTICE When returning hydraulic components for warranty make sure to box up all warranted parts to avoid additional damage while shipping.
  • Page 93 5 gallon (19L) pail. The following instructions are for machines with Live Hydraulics, for machines without Live Hydraulics contact your local dealer or Bandit Industries. In order to check out a hydraulic motor, it is necessary to mechanically stop the motor from turning while under load.
  • Page 94 Flow Control Gauge Valve removing First hose. component after pump. Flow Direction In-Line Fitting Relief Outlet Hose supplied by you. Pump Do not exceed 90% of system pressure. Remove any fi ller neck screen. Hydraulic Flow Tank Direction Bandit Copyright 1/18...
  • Page 95 12. If 90% of the main relief pressure can not be obtained and/or the fl ow rate passing through the meter is considerably less, then the pump is worn or damaged. Flow Meter (with relief) Hose supplied by First you. component after pump. Flow Direction Outlet Do not exceed Pump 90% of system pressure. Flow Hydraulic Direction Tank Bandit Copyright 1/18...
  • Page 96 Shift valve with hand lever to assure operation. With some eff ort, the hand lever should move between three positions. The detent will hold the hand lever in the three positions. Instructions and illustrations provided by component manufacturer. Bandit Copyright 1/18...
  • Page 97 MODEL 12XPC HYDRAULICS SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. WITH NO OPTIONS FEED WHEELS FLOW DIVIDER FORWARD REVERSE VALVE FEED VALVE RELIEF MANIFOLD SET AT 2500 PSI HYDRAULIC TANK Bandit Copyright 1/18...

  • Page 98: Electrical

    LIGHT BRAKES TAIL LIGHT 6 WIRE MAIN CABLE 3 LIGHT MARKER BAR (IF APPLICABLE) LICENSE PLATE LIGHT TAIL LIGHT ELECTRIC AMBER BRAKES MARKER MARKER LIGHT LIGHT JUNCTION BOX Running Lights Right Turn Brakes Left Turn Ground (BR) Bandit Copyright 1/18...

  • Page 99: Replacement Parts

    Some of the components shown in this section are for optional equipment and may not apply to every machine. NOTICE Bandit Industries Inc. reserves the right to make changes in models, size, design, installations and applications on any part without notification.
  • Page 100 MODEL 12XPC INFEED HOPPER COMPONENTS FIXED INFEED TRAY (PRE 7/17) NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...

  • Page 101: Infeed Hopper Components

    900-3972-04 Bottom Feedwheel Hydraulic Motor 40. a. 905-3001-34 Bottom Torque Arm Stop 937-300316 Torque Arm Cushion Mount 937-900009 4 Sided Torque Arm Cushion NOTICE Nuts, bolts, washers, and all other components can be ordered by physical description. Bandit Copyright 1/18...
  • Page 102 MODEL 12XPC INFEED HOPPER COMPONENTS FIXED INFEED TRAY (PRE 7/17) NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...
  • Page 103 Infeed Hopper with Folding Tray Assembly (Includes 1, 2 - 12, 14, 58) 905-2001-77 Infeed Hopper with Folding Tray Weldment 905-1001-18 Infeed Hopper with Fixed Tray NOTICE Nuts, bolts, washers, and all other components can be ordered by physical description. Bandit Copyright 1/18...
  • Page 104 MODEL 12XPC CHIPPER COMPONENTS NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...

  • Page 105: Chipper Components

    937-1005-68 Beltshield Mount 905-2001-25 Beltshield Assembly (Includes 30 & 36) ** Components vary with engine options order by physical description or machine S/N. NOTICE Nuts, bolts, washers, and all other components can be ordered by physical description. Bandit Copyright 1/18...

  • Page 106: Chipper Knife & Hardware

    Part Numbers For Knives & Hardware LOCATION PART NUMBER DESCRIPTION 912-3001-47 5/8” x 5 1/2” x 9” Chipper Knife 900-4901-32 5/8” Mill Carb Washer 900-4900-20 5/8”-11NC x 2” Knife Bolt NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...

  • Page 107: Anvil Hardware

    Anvil Gauge 904-0003-90 Anvil Hardware Kit Only (Includes 3 - 8) 905-1000-03 Anvil & Hardware Kit (Includes 1 & 3 - 8) Anvil Bolt Torque: 75 ft.-lbs. (102 Nm) NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...
  • Page 108 KNIFE SAVER KIT COMPONENTS LOCATION PART NUMBER DESCRIPTION 900-9901-68 Knife Saver Kit 900-9901-65 File For Knife Saver Kit Only 900-9901-63 Replacement Blades For Knife Saver 900-9901-66 Knife Changing Gloves NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...

  • Page 109: Discharge Components

    Optional Clean Out Door Assembly (Pre 9/06) DISCHARGE ASSEMBLIES LOCATION PART NUMBER DESCRIPTION 905-2000-06 Standard Discharge 905-2000-23 Height Adjustable Discharge Assembly With Hand Crank Swivel 905-2000-11 Height Adjustable Discharge Assembly With Manual Swivel NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...
  • Page 110 MODEL 12XPC DISCHARGE COMPONENTS HEIGHT ADJUSTABLE HAND CRANK & HAND SWIVEL DISCHARGE NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...
  • Page 111 Discharge Swivel Mount 900-4905-43 Eye Bolt Adjuster 17. a. 937-200064 T-Handle Assembly 900-7900-96 Rubber Cap 980-3013-58 Bottom Swivel Ring 980-3014-56 Transition Flange 911-300129 Trap Door NOTICE Nuts, bolts, washers, and all other components can be ordered by physical description. Bandit Copyright 1/18...

  • Page 112: Hydraulic Components

    LOCATION PART NUMBER DESCRIPTION 900-3920-73 5000 PSI Gauge 900-3902-24 Quick Coupler 900-3902-23 Test Nipple 900-3911-47 Rubber Cap For Test Nipple 900-3924-86 Fitting 900-3926-11 Ball Valve 900-3922-14 Fitting 980-100121 In-Line Pressure Check Kit - With Autofeed (Includes 1-7) Bandit Copyright 1/18...
  • Page 113 ** Hydraulic pumps need to be ordered by physical description and serial number of machine. NOTICE Make sure to order components according to fitting type, fittings may vary on all components. NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...
  • Page 114 Hydraulic Hose From Pump Hydraulic Hose To Tank LOCATION PART NUMBER DESCRIPTION Main Relief Block Only Main Relief Only 900-3923-46 Main Relief Block Assembly (Includes #’s 1 & 2) NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...
  • Page 115 7. a. 900-3925-89 10’ Cord and Molded Herschman Connector (Not Shown) 900-3920-71 16’ Cord and Molded Herschman Connector (Not Shown) 900-3918-63 25’ Cord and Molded Herschman Connector (Not Shown) NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...
  • Page 116 MODEL 12XPC HYDRAULIC COMPONENTS HOSE CLAMP HOSE GUARD FLOW DIVIDER NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...
  • Page 117 DESCRIPTION 1. a. 900-3934-76 Hose Guard - 4” Long 900-3934-77 Hose Guard - 6” Long 900-3934-78 Hose Guard - 8” Long FLOW DIVIDER LOCATION PART NUMBER DESCRIPTION 900-3923-35 Flow Divider Body Only 900-3946-88 Flow Divider Cartridge Only Bandit Copyright 1/18...
  • Page 118 MODEL 12XPC HYDRAULIC COMPONENTS TYPICAL SPRING LOADED CONTROL VALVE TYPICAL FEEDWHEEL CONTROL VALVES 4,12 1,12 3,12 NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...
  • Page 119 NOTE: INCLUDES #’s 9 & 10 900-3905-59 Handle, Pin, and Link NOTE: INCLUDES #’s 1, 3, & 4 CONTROL VALVES LOCATION PART NUMBER DESCRIPTION 900-3927-73 Yoke Lift Control Valve for Dual Control Yoke Lift 900-3920-05A Feedwheel Control Valve With Out Relief Bandit Copyright 1/18...
  • Page 120 MODEL 12XPC FRAME & ACCESSORY COMPONENTS OPTIONAL SLIDING TONGUE NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...

  • Page 121: Frame & Accessory Components

    (Grease Type, Oil Type, Never Lube Type). *-* Engine Rails And Adjusters Will Vary Depending On Engine And Component Options. Order By Serial Number Of Chipper Or Physical Description. NOTICE Other fenders and fender stone shields are optional. Bandit Copyright 1/18...
  • Page 122 MODEL 12XPC FRAME & ACCESSORY COMPONENTS OPTIONAL SLIDING TONGUE NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...
  • Page 123 (Grease Type, Oil Type, Never Lube Type). *-* Engine Rails And Adjusters Will Vary Depending On Engine And Component Options. Order By Serial Number Of Chipper Or Physical Description. NOTICE Other fenders and fender stone shields are optional. Bandit Copyright 1/18...
  • Page 124 MODEL 12XPC FUEL & HYDRAULIC TANK COMPONENTS OPTIONAL HEAVY DUTY LOCKABLE FILLER CAP NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...

  • Page 125: Fuel & Hydraulic Tank Components

    Optional Fill Cap Lock Assembly For Steel Tank With 900-3917-71 Fill Cap NOTICE Components vary with fuel type. Specify gas or diesel when ordering fuel tank components. NOTICE Tank assemblies vary with options. Specify all options when ordering. Bandit Copyright 1/18...
  • Page 126 MODEL 12XPC OPTIONAL COMPONENTS OPTIONAL HYDRAULIC BUMP BAR NOTICE Parts may not be exactly as shown. Bandit Copyright 1/18...
  • Page 127 900-3956-74 Bump Bar Valve (Not Shown) 9. a. 900-3956-26 Momentary Override Valve (Not Shown) 905-3002-14 Push Plate for Momentary Override Switch (Not Shown) 900-2903-07 Momentary Override Push Button Switch (Not Shown) 999-8001-88 Momentary Override Timer (Not Shown) Bandit Copyright 1/18...

  • Page 128: Service Record

    MODEL 12XPC SERVICE RECORD SERVICE RECORD DATE DESCRIPTION AMOUNT Bandit Copyright 1/18...

  • Page 129: Bandit Controls

    BANDIT CONTROLS HAND FED BANDIT CONTROLS (FUEL SAVER) (RADIO) (WINCH w/ FEED ASSIST) (DUMP VALVE) (BUMP BAR) 245774458290 21Dec2016...
  • Page 130 BANDIT CONTROLS Main Page To Start, turn key to ON position. In cold weather the engine may pre heat glow plugs or heater grid and the WAIT TO START symbol will appear on the splash screen. When pre heat is complete the Display will continue to Main Page.
  • Page 131 BANDIT CONTROLS Main Page Blinking indicates that the system has E-Stopped the engine. - Hood Pin removed - E-Stop depressed (if equipped) Fuel Save Status: indicates that Fuel Save mode is selected, and if “Save” is blinking the system is idled down to save fuel.
  • Page 132 BANDIT CONTROLS Mode Page 4. Press the “Bypass” button to manually run Feed Fwd at low Eng RPM and bypass the AutoFeed control. This will allow auxiliary functions to be operated on certain machines equipped with dump valve hydraulics. To turn AutoFeed back on, press the same “Bypass”...
  • Page 133 BANDIT CONTROLS Main Page Press the Maint button to navigate to the Maintenance Pages. (Software Serial Numbers) Function Status Error Counts MAINT1 INPUTS Shows the status of communication between devices and various inputs to Controller1 (C1). 1=Good/Active 0=Bad/Inactive The number behind many of the device status is an error count. Each time communication is lost or the status is bad this number will count up to a maximum of 15 until keyswitch is cycled and that memory is cleared.
  • Page 134 BANDIT CONTROLS Maint Pages Press the Maint4 button to navigate to Maintenance 4. MAINT2 OUTPUTS Shows the status of Controller1 (C1) outputs that are able to be diagnosed. Observe the note on the screen that output wiring can only be diagnosed for open/broken connection while the output is de-engergized.
  • Page 135 BANDIT CONTROLS Maint Pages Input values change from 0 to 1 when that Radio function is active. Error counts for how many times the controller has lost comm with the receiver or transmitter. MAINT4 RADIO The radio and tether systems (optional on some machines) send all of their signals via CAN messages and therefore cannot be checked physically at the receivers with a voltmeter.
  • Page 136 BANDIT CONTROLS Notes The tether is a back-up tool in case the radio fails. The tether has 2 (8) button keypads that communicate with the main controller via CAN messages. The machine must be in Tether mode in order to activate the Tether.
  • Page 137 BANDIT CONTROLS Setup Page FuelSave Time: this is the amount of time the machine will wait at "no load" until it idles down. Fan Reverse Interval is optional on some machines. It is the time between fan reversing cycles to purge debris from the radiator.
  • Page 138 BANDIT CONTROLS Setup Page (Password protected) Fuel Saver - Behind the FuelSave Load setting (42% as shown) is the actual Load on the engine (25% as shown). The setting is typically 5-10% higher than actual load at high idle with clutch engaged.
  • Page 139 BANDIT CONTROLS Setup Page FuelSaver If Fuel Saver Mode is turned on, the machine will throttle down on its own to 200 RPM above low idle if it runs too long with no load. Two settings affect Fuel Saver mode.
  • Page 140 BANDIT CONTROLS Push Button Feed Assist Stow Switch, Feed Assist Switch Push Button Feed Assist Valve and Switch Manual Winch with Push Button Feed Assist There is a switch on the winch that sends a 12V signal to enable the winch valve. The winch stow switch indicates to the control system whether the winch is stowed or deployed.
  • Page 141 BANDIT CONTROLS Electric Feed Assist Winch In-Out Switches, Stow Switch, Feed Assist Switch Electric Winch with Feed Assist There is a switch on the winch that sends a 12V signal to enable the winch valve. The winch switch indicates to the control system whether the winch is stowed or deployed. The status of this switch is displayed on Maint1 as shown above right.
  • Page 142 BANDIT CONTROLS Main Page Press this button for the popup menu (Popup menu disappears after 5sec). Popup Menu Options: 1. Press this button for Display Menu. 2. Press for DPF Options (If equipped with relevant T4 engine). 3. Press to view System Faults.
  • Page 143 BANDIT CONTROLS Display Menu 1. Select down to the parameter you wish to adjust. 3. & 4. Increase or decrease the value of the selected parameter, or select through various options. 5. Go back. (Engine ECU address is default 0).
  • Page 144 BANDIT CONTROLS DPF Options Press to display REGEN options "N/A" will appear if the engine does not have these T4 features. (Main Page will show DPF icons as well) (DPF options are only applicable on T4 engine). 1. & 2. Select the parameter you wish to adjust.
  • Page 145 BANDIT CONTROLS Faults and Diagnostic Messages Press to display Faults and error messages. 1. & 2. Select the parameter you wish to select. 3. Enter OK to view those faults. If there are no active or stored faults, none will be available to scroll through.
  • Page 146 BANDIT CONTROLS Faults and Diagnostic Messages The Amber LED corresponds to a Diagnostic Warning Condition. The Red LED corresponds to a Diagnostic Stop Condition (ie. stop engine). 245774458290 21Dec2016...
  • Page 147 BANDIT CONTROLS Service Reminders Press to display Engine Service page. 1. Select down to the parameter you wish to adjust. 3. & 4. Increase or decrease the value of the selected parameter, or select through various options. 5. Go back.
  • Page 148 BANDIT CONTROLS Other Engine Parameters Press to display other engine parameters. The engine may send information on other parameters it is monitoring. These can be read on 1 of 4 engine pages. Cycle through the engine pages to return to the Main Page.
  • Page 149 BANDIT CONTROLS Engine Service Tools Main Controller VBBs Fuse When connecting a laptop to the engine with certain engine service tools (ex CAT-ET, etc) it may be necessary to disconnect the main Controller by unplugging the 3amp VBBs fuse in station 3. The engine can still Key ON, start, and idle with the main Controller OFF.
  • Page 150 BANDIT CONTROLS Bump Bar Option If the Chipper is equipped with a Bump Bar and Bump Bar Bypass valve, a Bypass Button is connected to the valve which together allow Feed Fwd for 5 seconds even if the Bump Bar has disabled the feed system.
  • Page 151 BANDIT CONTROLS Program Notes Display - If Controller 1 (C1) loses communication with the Display, C1 will default to Radio mode. - If C1 loses comm with the Display AND the radio receiver, it will default to Tether Mode. - If C1 loses comm with display and receiver and tether, it will remain in Manual mode internally.
  • Page 152 BANDIT CONTROLS Inputs - BadCount01: Hood Pin - BadCount02: EStop - BadCount04: TetherEStop (counts only while in TetherMode) - The buttons on the infeed are tied into Throttle Up when FuelSave is turned on. - Winch In-Out Sw R to Gnd; Open=60,000; In 0Ω=0; Out 1000Ω=AtoD=12,300; compare LT 20,000 FuelSaver - FuelSave Time has a range of 10-255sec.
  • Page 153 BANDIT CONTROLS Document notes 21Dec2016 – First Draft 245774458290 21Dec2016...

This manual is also suitable for:

90150200

Table of Contents

Save PDF
