Summary of Contents for Kärcher BV 5/1 Bp

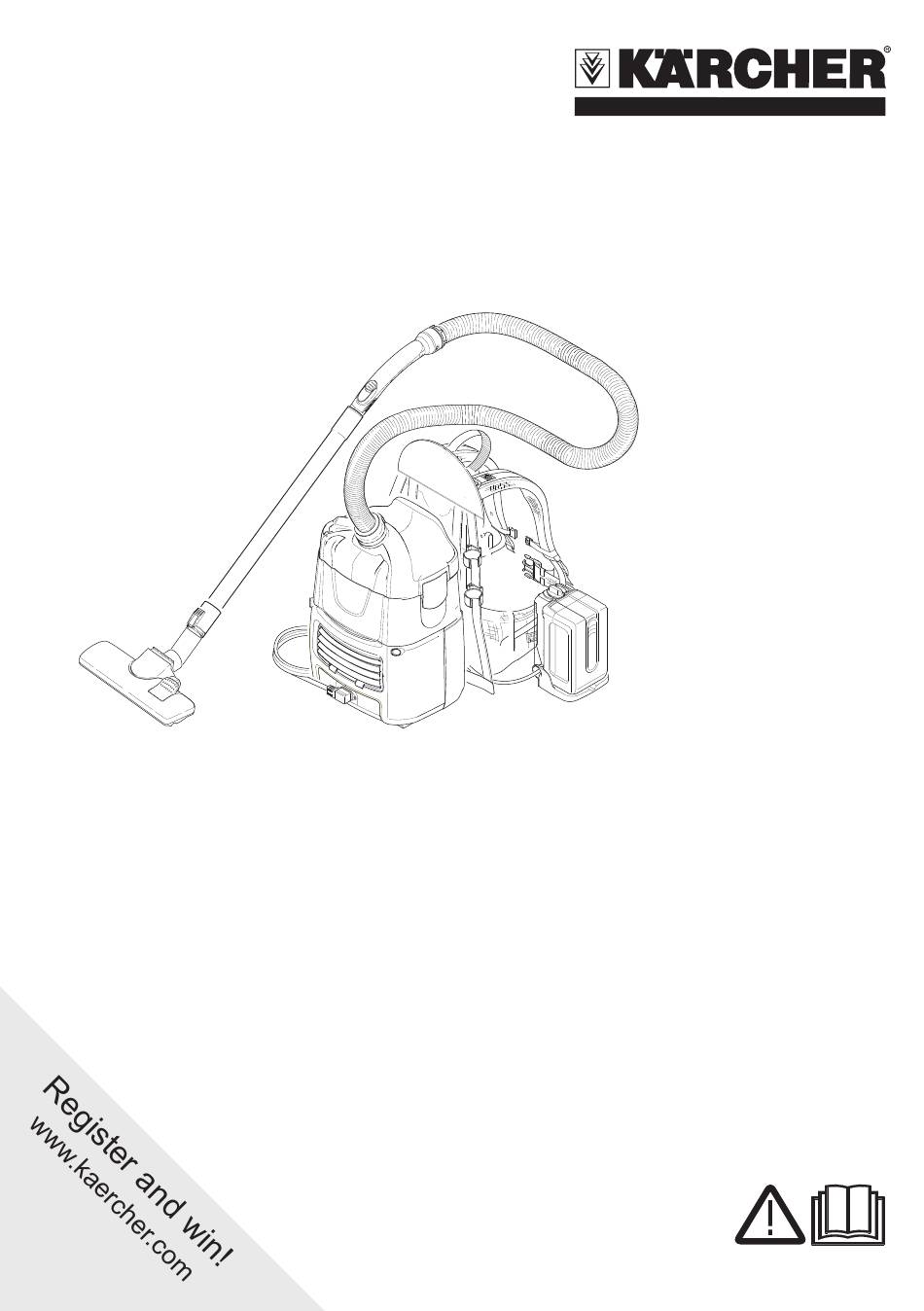

  • Page 1 BV 5/1 Bp Deutsch English Français Italiano Nederlands Español Português Dansk Norsk Svenska Suomi Ελληνικά Türkçe Русский Magyar Čeština Slovenščina Polski Româneşte Slovenčina Hrvatski Srpski Български Eesti Latviešu Lietuviškai Українська 59628300 03/11...
  • Page 3: Table Of Contents

    Please read and comply with Environmental protection these original instructions prior English to the initial operation of your appliance and The packaging material can be store them for later use or subsequent own- recycled. Please do not throw ers. the packaging material into Before first start-up it is definitely nec- –...
  • Page 4: Proper Use

    Do not use the charger if dirty or wet. – Proper use The mains voltage must match the volt- – age mentioned on the type plate of the Warning charger. The appliance is not suitable for vacuuming Do not operate the charger in explosive –...
  • Page 5: Device Elements

    Device elements 1 Suction support (exterior) 22 Filter casing 2 Filter cover latch 23 Cover 3 Filter cover 24 Main switch 4 Fleece filter bag 25 Mains cable hook (foldable) 5 Main filter basket 26 Suction force regulator (continuous) 6 Grid of the motor proction filter 27 Bender 7 Motor filter Start up...
  • Page 6 Adjusting the hip belt and the Strain relief clamp shoulder carrier  Put appliance on your back.  Insert the mains cable into the strain re- lief clamp.  Latch the closure and adjust the hip Insert the battery belt. ...
  • Page 7: Operation

    Charge the battery Cleaning operations Note: Please read the operating instruc- Note: We recommend that you operate the tions of the charger manufacturer, espe- appliance in the mains mode while cleaning cially the chapters on safety instructions! textile covering because of the high clean- The battery is partially charged at the time ing power that is required for such jobs.
  • Page 8: Maintenance And Care

    Maintenance and care Clean main filter basket  Main filter basket (washable), clean it Danger under running water if necessary. Turn the appliance off and disconnect the Caution mains plug or remove the batteries before Risk of damage! Never insert the main filter carrying out any tasks on the machine.
  • Page 9 The appliance shuts off during the No or insufficient suction operation Nozzle, suction pipe or suction hose – may be blocked. Motor thermal protector has responded. –  Remove the blockage.  Replace the fleece filter bag or paper fil- ter bag (option).
  • Page 10: Warranty

    Warranty EC Declaration of Conformity The warranty terms published by the rele- We hereby declare that the machine de- vant sales company are applicable in each scribed below complies with the relevant country. We will repair potential failures of basic safety and health requirements of the your appliance within the warranty period EU Directives, both in its basic design and free of charge, provided that such failure is...
  • Page 11: Technical Specifications

    Technical specifications BV 5/1 Bp BV 5/1 Bp Mains operation Battery opera- tion Mains voltage 220-240 25.2 DC Frequency 50/60 Max. performance 1300 Rated power 1150 Container capacity Air volume (max.) Negative pressure (max.) kPa (mbar) 24,4 (244) 12,3 (123)
