Allmand MAXI LITE ML FCS Series Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

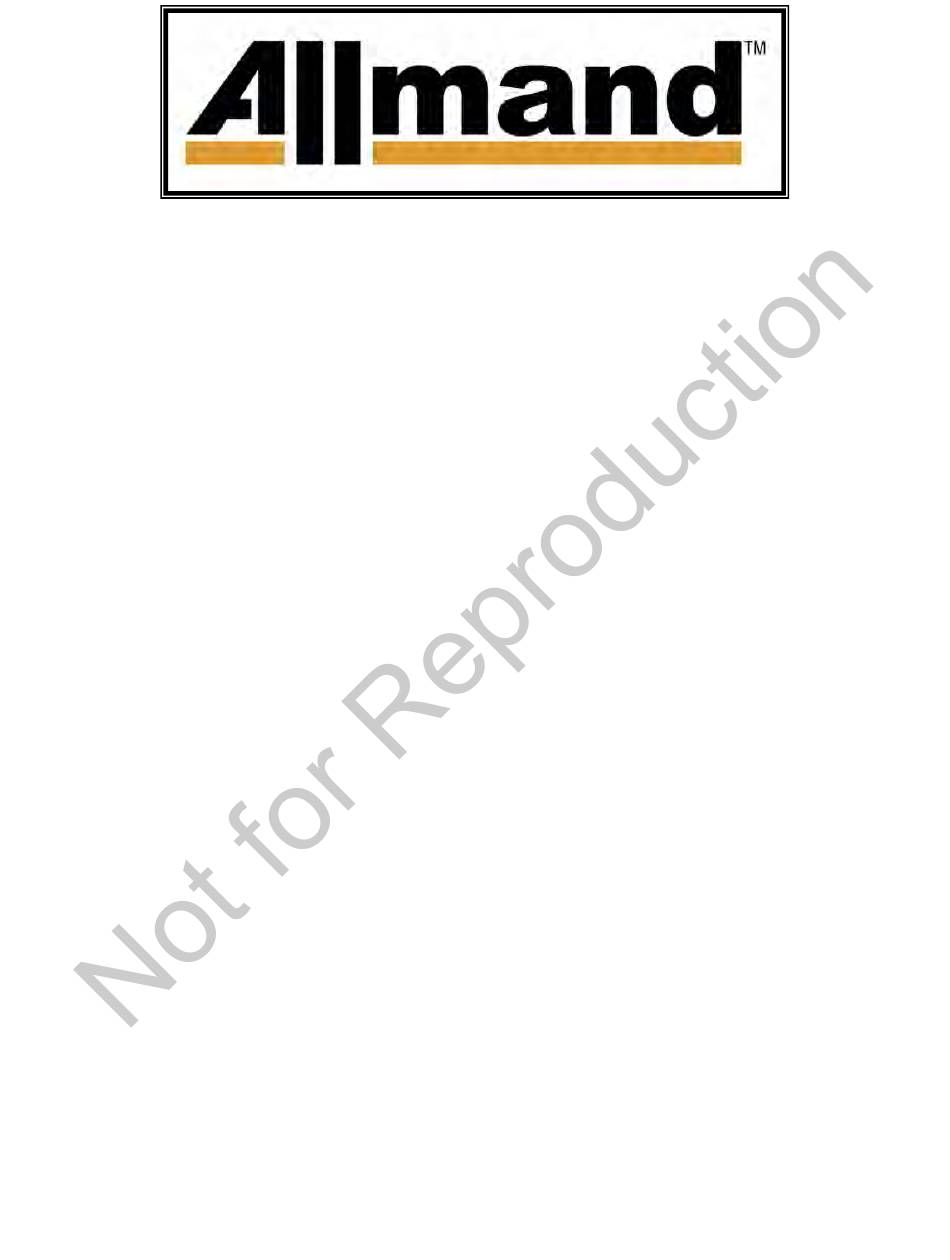

MAXI LITE®
ML FCS SERIES
OPERATOR'S
MANUAL
ALLMAND BROTHERS INC.
P.O. BOX 888
HOLDREGE, NE 68949
PHONE: (308) 995- 4495, 1- 800- 562- 1373
ALLMAND FAX: (308) 995– 5887
ALLMAND PARTS DEPT. FAX : (308) 995– 4883
allmand.com
WWW.
PART NO. 103408 REVISED: APRIL 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAXI LITE ML FCS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Allmand MAXI LITE ML FCS Series

Summary of Contents for Allmand MAXI LITE ML FCS Series

  • Page 1 OPERATOR’S MANUAL ALLMAND BROTHERS INC. P.O. BOX 888 HOLDREGE, NE 68949 PHONE: (308) 995- 4495, 1- 800- 562- 1373 ALLMAND FAX: (308) 995– 5887 ALLMAND PARTS DEPT. FAX : (308) 995– 4883 allmand.com WWW. PART NO. 103408 REVISED: APRIL 2012...
  • Page 2 RECORD IMPORTANT INFORMATION Recording the equipment information will help, when placing an order for replacement parts and/ or decals. Company Equipment No: Unit model No: Unit Vin: Engine Model No: Serial No: Generator Model No: Serial No: Accessories:...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ABOUT THIS MANUAL 8-13 SAFETY SAFETY DEFINITIONS SAFETY PRECAUTIONS SAFETY LABELS 11-13 14-21 TRAILERING, TRANSPORTING AND LIFTING PREPARING THE UNIT FOR DELIVERY OR RENTAL CHECK LIST BEFORE TRAILERING/ TRANSPORTING SHUTDOWN-PREPARE FOR TRAILERING TOWER LIGHTS-STOWAGE FOR TRAILERING—VERTICAL TOWER LIGHTS-STOWAGE FOR TRAILERING—LAYDOWN TOWER LIGHTS-REMOVAL FOR TRAILERING/TRANSPORTING (OPTIONAL) TRAILER/TOWING...
  • Page 4 TABLE OF CONTENTS TOWER LIGHTS GENERATOR-STANDARD GENERATOR–AS3000 ENGINES 30-33 ISUZU 4LE1 CAT C1.1 CAT C2.2 KUBOTA D1105BG OPTIONAL ACCESSORY EQUIPMENT 34-46 OPERATION PRE-OPERATION SETUP WORK SITE CONSIDERATIONS PRE-OPERATION CHECK LIST 34-35 LEVELING AND STABILIZING THE TRAILER 35-36 INSTALLING THE GROUND ROD ENGINE OPERATION PRE-START CHECKS ENGINE CONTROL PANELS...
  • Page 5 TABLE OF CONTENTS TABLE OF CONTENTS SHUTDOWN-SHORT PERIOD SHUTDOWN-LONG TERM OR PREPARE FOR TRAILERING AUXILLARY AC OUTLET OPERATION 45-46 MAINTENANCE 46-52 ENGINE CHANGING AND ADDING ENGINE OIL ENGINE FILTERS ELECTRICAL SYSTEM BALLAST PANEL HYDRAULIC PUMP 47-48 HYDRAULIC OIL SPECIFICATIONS ADDING HYDRAULIC OIL PRIMING THE HYDRAULIC PUMP LIGHT TOWER AND LAMPS 48-49...
  • Page 6 TABLE OF CONTENTS TABLE OF CONTENTS CAT 1.1 ENGINE CAT 2.2 ENGINE KUBOTA KEYED SWITCH KUBOTA KEYED SWITCH WITH E-STOP KUBOTA D1105 WITH DEEP SEA PANEL & E-STOP MARATHON GENERATOR MARATHON GENERATOR 4-LEAD SINGLE PHASE 240V 3-PHASE GENERATOR HIGH DELTA HYDRAULIC PUMP HYDRAULIC PUMP WITH RELAYS 4-LIGHT BALLAST...

  • Page 7: Introduction

    The graphics and text in this manual generally Allmand MAXI-LITE ML FCS SERIES light describe the Allmand MAXI-LITE ML FCS tower and welcome to the Allmand Family of SERIES light tower. Allmand light towers differ equipment owners. by model and optionally installed equipment.

  • Page 8: Safety

    Indicates a hazardous situation which, if not If you are uncertain about any of the information avoided, will result in death or serious injury. in the manual, contact Allmand service depart- ment at 1-800-562-1373, for clarification. Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 9 SAFETY ROLLOVER HAZARD  High voltage is present when engine is  Do not raise, lower or use light tower unless running. Never attempt to service electrical components while engine is running. all outriggers and jacks are positioned on firm ground. ...
  • Page 10 SAFETY PIERCING HAZARD  Avoid skin contact with high The safety messages that follow have pressure hydraulic fluid or WARNING level hazards. diesel fuel spray caused by a EXHAUST HAZARD hydraulic or fuel system leak such as a broken hydraulic ...

  • Page 11: Safety Labels

    SAFETY  Only use replacement parts specified. Other replacement parts may effect The safety messages that follow have warranty coverage. WARNING level hazards.  Clean all accumulated dirt and debris away BURN HAZARD from the body of the equipment and is ...
  • Page 12 SAFETY...
  • Page 13 SAFETY...

  • Page 14: Trailering, Transporting And Lifting

    TRAILERING, TRANSPORTING AND LIFTING  Check ground rod cable and the ground lug. PREPARING THE UNIT FOR Make sure they are clean, undamaged and DELIVERY OR RENTAL functional. The MAXI-LITE ML FCS SERIES light tower  Inspect tires to insure good condition and requires service as well as proper operation in proper inflation.

  • Page 15: Before Trailering/ Transporting

    TRAILERING, TRANSPORTING AND LIFTING Before trailering, transporting or lifting, read SHUTDOWN - Prepare for trailering Safety on page 8. 1. With the tower lights off, lower the light The complete engine and generator set is tower to the full DOWN position; See housed in a lockable enclosure with the frame Raising and lowering the light tower on page fabricated from heavy gauge steel mounted on...

  • Page 16: Tower Lights-Stowage For Trailering-Vertical

    TRAILERING, TRANSPORTING AND LIFTING 8. Retract each outrigger bar and secure in the stowed position with latch pin. VERTICAL TOWER LIGHTS - Stowage for Trailering The light bar and fixtures must be stowed before trailering or transporting. 1. Ensure lights are off and tower is lowered to the full DOWN position;...

  • Page 17: Tower Lights-Stowage For Trailering-Laydown

    TRAILERING, TRANSPORTING AND LIFTING LAYDOWN TOWER LIGHTS - Stowage for Trailering The light bar and fixtures must be stowed before trailering or transporting. 1. Ensure lights are off and tower is lowered to the full DOWN position: See Raising and Lowering the Light Tower on page 38-41.

  • Page 18: Tower Lights-Removal For Trailering/Transporting (Optional)

    TRAILERING, TRANSPORTING AND LIFTING TOWER LIGHTS - Removal for Trailer- TRAILERING / TOWING ing/ Transporting (optional) Before trailering / towing the light tower trailer, read Before Trailering / Transporting on page Your light tower may be equipped with lights 15 and read Safety on page 8. that can be removed for trailering/ transporting or for theft protection.

  • Page 19: Towing Vehicle And Hitch Considerations

    TRAILERING, TRANSPORTING AND LIFTING Towing Vehicle and Hitch Considera- Typical Lunette Ring Pintle type Hitch and tions Coupler LATCH AND RELEASE VEHICLE HITCH LEVER TRAILER COUPLER LUNETTE The towing vehicle must be able to safely pull RING the full trailer load. Never pull a trailer load that exceeds the vehicle’s towing capacity;...

  • Page 20: Lifting The Light Tower

    TRAILERING, TRANSPORTING AND LIFTING 4. Ensure there is adequate slack in the The trailer coupler must be reversed to use harness to prevent binding or disconnection either the ball or lunette hitch coupler. To when turning. reverse the coupler, remove the two bolts and reposition the coupler as needed.

  • Page 21: Transporting On A Trailer

    TRAILERING, TRANSPORTING AND LIFTING LIFTING ATTACHMENT POINTS - Laydown Tower LIFTING EYE LIFTING ATTACHMENT POINTS - Vertical Tower LIFTING EYE FORKLIFT POCKETS TRANSPORTING ON A TRAILER When transporting on a truck or a trailer, always secure the unit using properly rated tie-down chains or straps connecting the light tower FORKLIFT POCKETS frame using tie-down loops to the towing trailer.

  • Page 22: General Service Information

    GENERAL SERVICE INFORMATION EQUIPMENT IDENTIFICATION– VERTICAL TOWER LIGHT BAR LIFTING BAR LAMP ASSEMBLY LEFT FUEL TANK AND HYDRAULIC LIGHT CONTROL TOWER ACCESS CORD REEL DOOR STEP PLATE (Hydraulic Only) PINTLE HITCH FRONT STABI- FRONT OUTRIGGER LIZER JACK BALL HITCH BALLAST ACCESS COVER PANEL TRAILER TONGUE JACK SAFTEY CHAINS...

  • Page 23: Equipment Identification-Laydown

    GENERAL SERVICE INFORMATION EQUIPMENT IDENTIFICATION– LAYDOWN TOWER LAMP ASSEMBLY LIFTING EYE LAYDOWN LIGHT TOWER CORD REEL PINTLE FORKLIFT HITCH POCKETS LEFT FUEL TANK AND CONTROL ACCESS DOOR BALL HITCH FRONT STABILIZER JACK FRONT OUTRIGGER SAFETY CHAINS BALLAST ACCESS PANEL TRAILER TONGUE JACK...

  • Page 24: Models And Serial Numbers

    GENERAL SERVICE INFORMATION MODEL AND SERIAL NUMBERS STAMPED SERIAL PLATE Model and serial number information is required for product support and repair parts. The following descriptions show model and serial number locations of the primary components. Trailer All MAXI-LITE ML FCS SERIES light tower trailers have a serial number plate attached to the rear panel.
  • Page 25 GENERAL SERVICE INFORMATION The CATERPILLAR engine has a serial number plate attached on the upper right side of the engine block above the fuel injection pump. SERIAL PLATE SERIAL PLATE CAT ENGINE C1.1 CAT ENGINE C2.2...
  • Page 26 GENERAL SERVICE INFORMATION Engine The KUBOTA engine has the serial number stamped on the engine block just below the exhaust manifold. STAMPED SERIAL NUMBER...

  • Page 27: Specifications (Standard And Optional)

    GENERAL SERVICE INFORMATION SPECIFICATIONS (STANDARD AND OPTIONAL FEATURES) Overall Dimensions Hydraulic Tower Laydown Tower Height Light Tower Lowered 7 Ft 8 in. (2.34 m) 5 ft. 7in. (1.7 m) Height Light Tower Raised 25 ft 6in. (7.8 m) 30 ft. (9.14 m) Width (outriggers retracted) 74 in.

  • Page 28: Trailer

    GENERAL SERVICE INFORMATION Trailer Light Tower– Vertical Hitch Coupler Adjustable height, reversable Sections combination, 2 in. (50 mm) ball, Hydraulic Cylinder Standard 3 in. (75 mm) pintle hitch Vertical Standard Max. Road Speed (paved road) 60 mph (97 km/h) Max Wind Load 53 mph Max.

  • Page 29: Tower Lights

    GENERAL SERVICE INFORMATION Tower Lights SHO - HD 1250W Metal Halide (lumen rating: 150,000) Standard SHO - HD 1000W Metal Halide (lumen rating: 110,000) Optional SHO - HD 1000W and 1250W Metal Halide Warm - up time: 2-4 minutes SHO - HD 1000W and 1205W Metal Halide Re - start time: 10 to 15 minutes Four Fixtures Standard (sealed for all weather use)

  • Page 30: Engines

    GENERAL SERVICE INFORMATION Model ISUZU 4LE1 Type Water ‐ Cooled 4 Cycle Diesel Bore  3.35 in. (85mm) Stroke 3.78in. (96mm) Displacement 133cu. In. (2179cc) Power @ 1800 rpm 31.4 bhp Power Output Derating 3.5% per 1000 ft above (305m) / 1% per 10?F above 77?F Note: Horse power ratings are established in accordance with Society of Automotive Engineers   Small EngineTest Code ‐ J1349 GROSS. Fuel System Indirect Injected Diesel Starting System 12VDC Negative Ground Electrical System 12VDC Negative Ground Battery Type Group 24 Battery Rating 450 CCA  Number of Batteries Compression Ratio 21.5:1 Weight 387 lbs (175 kg) Oil Capacity MAX. 8.5 qts (8.0 l), MIN.5.6 qts. (5.3 l) Lubrication Forced Lubrication by pump Oil Filtration Cartridge Type Cooling System Pressurized Radiator Forced Circulationwith Water Pump Low Pressure...

  • Page 31: Cat C1.1

    GENERAL SERVICE INFORMATION Model CAT C1.1 Type Water Cooled 4 ‐ Cycle Diesel Bore 3.03 in. (77mm) Stroke 3.19 in. (81mm) Displacement 69 cu. In. (1100cc) Power @ 1800 rpm 14.3 hp (11.9 kW) Power Output 3% per 1000 ft above 360ft  Derating 1% per 10° above 77° F Note: Horse power ratings are established in accordance with Society of Automotive Engineers Small Engine Test Code ‐ J1349 GROSS Fuel System Cassette type fuel injected diesel Starting System 12VDC Negative Ground Electrical System 12VDC Negative Ground Battery Type Group 24 Battery Rating 550 CCA Number of Batteries Compression Ratio 22:01 Weight 191 lb (87 kg) Oil Capacity 3.9 qt (3.7 L) Lubrication Forced  lubrication by Pump Oil Filteration Cartridge Type Cooling System...

  • Page 32: Cat C2.2

    GENERAL SERVICE INFORMATION Model CAT C2.2 Type Water Cooled 4 ‐ Cycle Diesel Bore 3.31 in. (84mm) Stroke 3.94 in. (100.0mm) Displacement 1352 cu. In. (2216cc) Power @ 1800 rpm 35 hp (26.1 kW) Power Output 3% per 1000 ft above 360ft  Derating 1% per 10° above 77° F Note: Horse power ratings are established in accordance with Society of Automotive Engineers Small Engine Test Code ‐ J1349 GROSS Fuel System Cassette type fuel injected diesel Starting System 12VDC Negative Ground Electrical System 12VDC Negative Ground Battery Type Group 24 Battery Rating 550 CCA Number of Batteries Compression Ratio 23.3:1 Weight 406 lb 184kg) Oil Capacity 11.2 qt (10.6 L) Lubrication Forced  lubrication by Pump Oil Filteration Cartridge Type Cooling System...

  • Page 33: Kubota D1105Bg

    GENERAL SERVICE INFORMATION...

  • Page 34: Optional Accessory Equipment

    GENERAL SERVICE INFORMATION OPTIONAL ACCESSORY EQUIPMENT Ground Surface  Saf -T-Visor™  Electric Winch Tower  Hydraulic Tower  LSC100™ Light Sequence Commander  Heavy Duty Battery (700 CCA)  Battery Heating Pad  Engine Block Heater  Sound Attenuation package Wind ...

  • Page 35: Leveling And Stabilizing The Trailer

    OPERATION  Physically inspect the machine for damage After completing the pre-operation check list, and repair if necessary. operate the light tower through a complete operation cycle. Leveling and Stabilizing the Trailer  Visually inspect the equipment to ensure that all instructions and decals are in place and legible.

  • Page 36: Installing The Ground Rod

    Installing the Ground Rod The ground rod is a safety devise that may reduce the chance of personal injury from stray electrical current. Therefore Allmand recommends using the ground rod. However, it 3. Extend the front outrigger stabilizers out is the user’s responsibility to determine the and lock in place.

  • Page 37: Engine Operation

    Before starting the engine or operating the light tower, review Safety on page 8. HOUR METER VOLT METER The Allmand MAXI-LITE ML FCS SERIES light tower is powered by a diesel engine and gen- erator unit. Pre– Start Checks 1. Check the engine oil and add oil if required.

  • Page 38: Starting The Engine

    OPERATION KUBOTA Control Panel KUBOTA Deep Sea Control Panel (OPTION) ON/OFF 1. Main Panel Switch. 1. Hour Meter - Shows the total elapsed hours of engine operation. 2. Hour Meter - Shows the total elapsed hours of engine operation. 2. Key Switch. 3.

  • Page 39: Stopping The Engine

    OPERATION TOWER AND LIGHT OPERATION VERTICAL Before operating the tower lights, review Safety on page 8. The vertical tower is raised and lowered by a If starter is engaged while the flywheels hydraulic pump actuating a six section rotating, the starter pinion and flywheel ring gear may clash, resulting in damage to the telescoping mast.

  • Page 40: Lightbar And Light Fixture Adjustment-Vertical

    OPERATION With the light bar park pin released, the light bar is designed to be manually rotated with enough resistance so that the bar will stay in the desired position once the operator has directed the lights on the work zone. If the light bar rotates too easily or does not stay in position, remove the cap plug from the center of the light bar cover and tighten the nut...

  • Page 41: Lightbar And Light Fixture Adjustment-Laydown

    OPERATION The light bar and light fixtures must be stowed Light Bar and Light Fixture properly for trailering or transporting. See Adjustment-Laydown Tower Lights– Stowage for trailering-Laydown on page 17. Lights– Work Site Adjustment Raising and Lowering the Vertical The light bar and light fixtures must be adjusted to the desired work angle before raising the Tower light tower.

  • Page 42: Raising And Lowering The Light Tower-Manual Laydown

    OPERATION 1. Before raising the light tower, adjust the Raising and Lowering the Manual tower lights to the desired work position; see Winch Light Tower– Laydown Light Bar and Light Fixture Adjustment- Manual Winch Light Tower Vertical on page 37. NOTE: 2.

  • Page 43: Raising And Lowering The Light Tower-Elecric Laydown

    OPERATION 3. Release the pin that secures the mast to the Raising and Lowering the Electric rear mast support. Winch Light Tower– Laydown 4. Operate the hand crank on the left side of Electric Winch Light Tower the trailer to raise the mast from horizontal to vertical.

  • Page 44: Electric Winch Auxillary Handle

    OPERATION 5. Push toggle switch in the UP position to lessen slack in the cable. 6. Turn lower black knob counterclockwise and lift to release the latch pin from the strike plate. Retighten the lower knob with the latch disengaged from the strike plate. 7.

  • Page 45: Light Control Panel

    OPERATION Light Control Panel SHUTDOWN PROCEDURE The tower light control panel consist of the Shutdown - Short period breaker switches. When shutting down the light tower for a short The four light fixtures are controlled and period, perform the following procedures. protected by four breaker switches located on 1.

  • Page 46: Maintenance

    OPERATION 1. Disconnect the load from the outlet. Before performing any maintenance proce- dures, read Safety on page 8. 2. Turn off the tower lights (if used). Scheduled maintenance prevents unexpected 3. Correct the excessive load problem and wait downtime, reduces the number of accidents 10 minutes, to allow the generator to cool due to poor equipment performance and helps down before reconnecting the load.

  • Page 47: Electrical System

    The panels can be accessed by opening the right and left door. Each ballast contains two tower light lamp ballast and two capacitors. For additional wiring information, see schematics or contact Allmand Bros. or your Allmand dealer. LAMP BALLAST HYDRAULIC PUMP...

  • Page 48: Adding Hydraulic Oil

    MAINTENANCE Adding Hydraulic Oil LIGHT TOWER AND LAMPS Fill the reservoir with aviation hydraulic fluid or Changing Lamps any clean hydraulic fluid having a viscosity index that is suitable for the climate conditions in which the unit will be operated. Standard units are supplied with automatic transmission fluid (ATF), and arctic units are supplied with aviation hydraulic fluid.

  • Page 49: Tower Corner Guide Block Adjustment-7 Section Vert. Tower

    MAINTENANCE 4. Remove the silicone gasket and lens. 5. Remove the support clip screws and support clip. 6. Carefully remove the old lamp and install the correct replacement lamp. 7. Clean reflector and lens. 8. Install support clip and screws. 9.

  • Page 50: Grease Points

    MAINTENANCE 6. Inspect the safety chains for wear, corrosion INNER BEARING or damage; replace as needed. WHEEL HUB Grease Points GREASE SEAL Use N.G.L.I. consistency #2 high-temperature COTTER PIN anti- friction bearing lubricating grease for all trailer mechanical pivot points. Trailer Wheels and Tires OUTER WASHER...

  • Page 51: Trailer Lighting

    MAINTENANCE  Always replace bearings and races as a set. For trailer light wiring schematic information, Never mix bearings and races. Bearing part See Tail lamp wiring schematic on page 63. numbers are sometimes found on the LONG TERM STORAGE bearing races;...

  • Page 52: Cleaning

    Engine Operator’s Manual and The generator and light assemblies to operate at Generator Operator’s Manual or contact excessively high temperatures. Allmand Bros. Service Department or your Use the following guidelines: Allmand dealer.  Use caution when using compressed air or water/steam pressure washers.

  • Page 53: Troubleshooting

    TROUBLESHOOTING...

  • Page 54: Maintenance Record

    MAINTENANCE RECORD DATE SERVICE DESCRIPTION SERVICED BY...

  • Page 55: Wire Schematics

    SCHEMATIC ISUZU 4LE1 ENGINE...

  • Page 56: Cat 1.1 Engine

    SCHEMATIC...

  • Page 57: Cat 2.2 Engine

    SCHEMATIC...

  • Page 58: Kubota Keyed Switch

    SCHEMATIC KUBOTA KEYED SWITCH...

  • Page 59: Kubota Keyed Switch With E-Stop

    SCHEMATIC KUBOTA KEYED SWITCH WITH E-STOP...

  • Page 60: Kubota D1105 With Deep Sea Panel & E-Stop

    SCHEMATIC KUBOTA D1105 WITH DEEP SEA PANEL & E-STOP...

  • Page 61: Marathon Generator

    SCHEMATIC...

  • Page 62: Marathon Generator 4-Lead Single Phase

    SCHEMATIC MARATHON GENERATOR 4 LEAD SINGLE PHASE...

  • Page 63: 240V 3-Phase Generator High Delta

    SCHEMATIC 240 3-PHASE GENERATOR HIGH DELTA...

  • Page 64: Hydraulic Pump

    SCHEMATIC HYDRAULIC PUMP...

  • Page 65: Hydraulic Pump With Relays

    SCHEMATIC...

  • Page 66: 4-Light Ballast

    SCHEMATIC 4-LIGHT BALLAST CSA...

  • Page 67: 6-Light Ballast Csa (Option)

    TAILLIGHT WIRING SCHEMATIC 6 LIGHT BALLAST ASSEMBLY CSA...

  • Page 68: 4-Light Ballast/Lamp Socket

    4 LIGHT BALLAST COMPARTMENT/LAMP SOCKET...

  • Page 69: Electric Winch (Option)

    WIRING SCHEMATIC ELECTRIC WINCH...

  • Page 70: Tail Lights/Marker Lights Csa

    TAILLIGHTS WITH MARKER LIGHTS CSA...

  • Page 71: 240V 3-Phase Electric Winch 4 Light

    SCHEMATIC 240V 3 PHASE ELECTRIC WINCH 4 LIGHT...

  • Page 72: 240V 3-Phase Electric Winch 6-Light

    WIRING SCHEMATIC 240V 3 PHASE ELECTRIC WINCH 6 LIGHT BALLAST PANEL...

  • Page 73: 240V Single Phase Rear Outlet Panel

    WIRING SCHEMATIC 240V REAR OUTLET PANEL SINGLE PHASE...

  • Page 74: 240V 3-Phase Electric Winch Light Bar 6-Light

    WIRING SCHEMATIC 240V 3 PHASE ELECTRIC WINCH 6 LIGHT LIGHT BAR...

  • Page 75: 208V 3-Phase Rear Outlet Panel

    SCHEMATIC 208V 3 PHASE REAR OUTLET PANEL...

  • Page 76: 208V 3-Phase Manual Winch Ballast Panel

    WIRING SCHEMATIC 208V 3 PHASE 4 LIGHT MANUAL WINCH BALLAST PANEL...

  • Page 77: 4-Light Fixture Light Bar 1000W Hid

    WIRING SCHEMATIC 4 LIGHT FIXTURE LIGHT BAR 1000W HID...

  • Page 78: 208V 3-Phase 6-Light Manual Winch Ballast Panel

    WIRING SCHEMATIC 208V 3 PHASE 6 LIGHT MANUAL WINCH BALLAST PANEL...

  • Page 79: 6-Light Fixture Light Bar 1000W Hid

    WIRING SCHEMATIC 6 LIGHT LIGHT BAR 1000W HID...

  • Page 80: Warranty

    WARRANTY...
  • Page 81 Fax 308-995-5887 / www.allmand.com LIGHTING SYSTEMS LIMITED WARRANTY ADDENDUM THIS IS AN ADDENDUM TO THE BASIC ALLMAND LIMITED WARRANTY OF TWO (2) YEARS AFTER DELIVERY TO THE ORIGINAL PURCHASER. The following manufacturers limited warranty policy warrants their components to be free from defects in material and workmanship from date of manufacture as follows (see specific manufacturer’s warranty for details):...
