Operator's Manual
en
Night-Lite™ E-Series
Portable Light Tower
Copyright © 2018 Allmand Bros., Inc.
Holdrege, NE, USA. All rights reserved.
Part No.: 112170USCN
Revision: B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Night-Lite E Series and is the answer not in the manual?

Questions and answers

Related Manuals for Allmand Night-Lite E Series

Summary of Contents for Allmand Night-Lite E Series

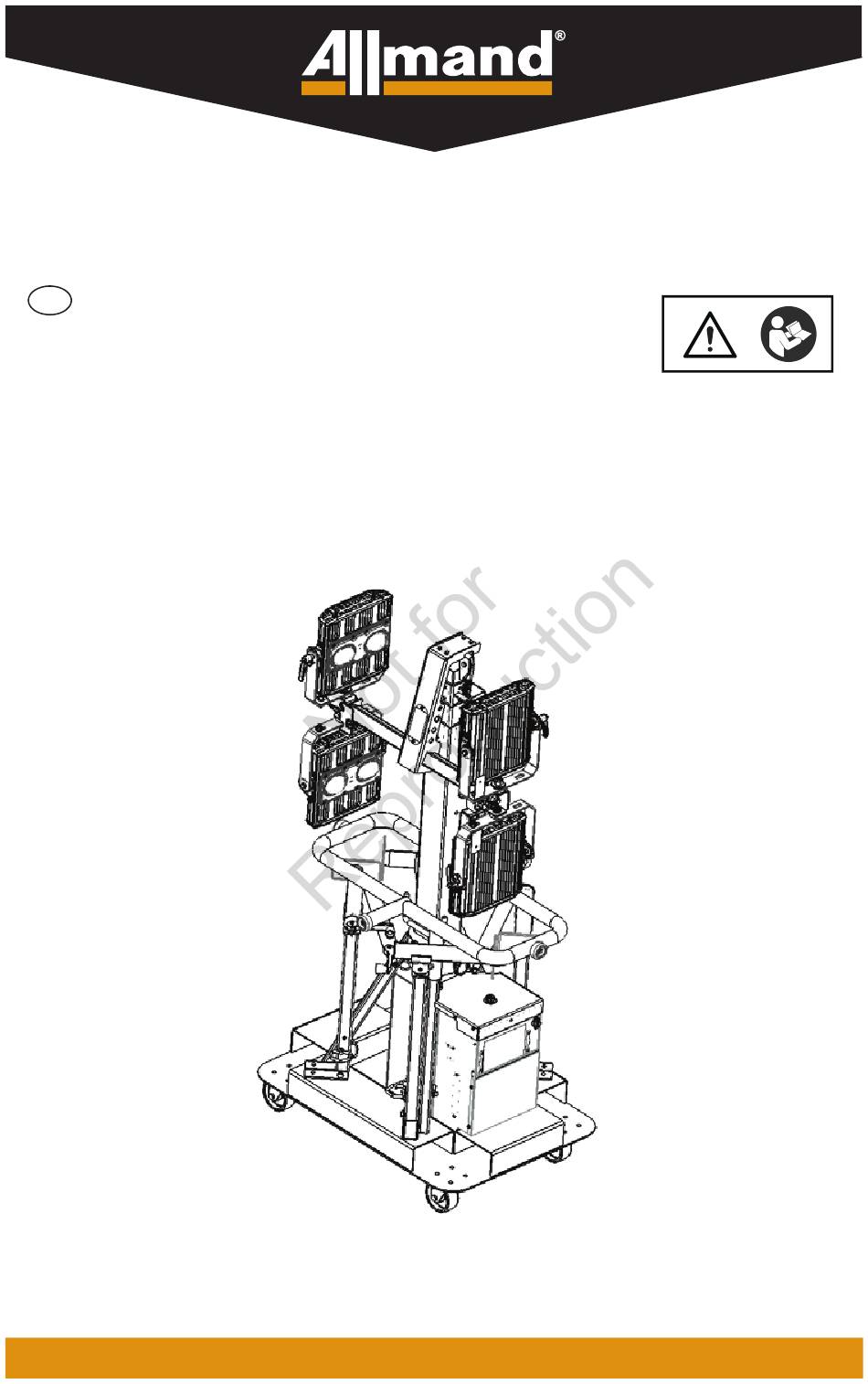

  • Page 1 Operator’s Manual Night-Lite™ E-Series Portable Light Tower Copyright © 2018 Allmand Bros., Inc. Part No.: 112170USCN Holdrege, NE, USA. All rights reserved. Revision: B...

  • Page 2: Table Of Contents

    The information found in this manual is WARNING in effect at the time of printing. Allmand Indicates a hazardous situation which, Bros Inc. may change contents without if not avoided, could result in death or notice and without incurring obligation.
  • Page 3 Safety Precautions WARNING The following section contains general Fall Hazard safety precautions and guidelines that • Never carry riders on the equipment. must be followed to reduce risk to per- sonal safety. Special safety precautions are listed in specific procedures. Read WARNING and understand all of the safety precau- Modification Hazard...
  • Page 4 • The use of authorized replacement Compare Figure 1 with the table Allmand parts is encouraged. The following. warranty does not cover damage or performance problems caused by the use of parts that are not authorized replacement parts.
  • Page 5 A DANGER - Shut down equipment before entering electrical compart- ment. Part No. 109011 Location: Light Bar Qty: 1 B WARNING - Keep bystanders away WARNING from light tower during lowering and raising operations. WARNING WARNING Part No. 112148-1 Standing under light tower mast and Keep bystanders away from light Location: Light Tower Mast fixtures during lowering operation...
  • Page 6 WARNING Contact your authorized dealer from power lines when raising light or visit Entering electrical compartment tower. while equipment is in operation www.allmand.com will result in death or serious injury. or call Part No. 112153-2 Keep light tower far 1-800-562-1373 Shut down equipment before lines.

  • Page 7: Features And Controls

    Main Circuit Breaker Figure 2 Features and Controls Ref Description LED Fixture (4 qty) The Allmand ® Night-Lite™ E-Series is Light Tower Mast intended for use as a stationary lighting Bumper Assembly device to illuminate large areas. Outrigger & Jack (4 qty)

  • Page 8: Preparing The Portable Light Tower For Use

    NOTICE The use of authorized replacement Allmand parts is encouraged. The war- ranty does not cover damage or perfor- mance problems caused by the use of parts that are not authorized replace- ment parts. 1. Check that a copy of the Operator’s...
  • Page 9 3. Align the light tower mast tab with the WARNING indicator decal on the right side of the unit. Tighten the light tower mast lock Standing or walking under elevated knob securely. See Rotating the equipment could result in death or Light Tower Mast.

  • Page 10: Operation

    • Always follow the rules or regula- tions for your worksite, and state, province and national electric code 50mph (80km/h) max for maintaining a safe distance from overhead wires. www.allmand.com...
  • Page 11 WARNING Tipover Hazard Operating with the light tower mast raised in winds exceeding 50 mph (80 km/h) could cause the unit to tip over, resulting in death or serious injury. Do not operate with the light tower mast raised in winds exceeding 50 mph (80 Figure 6 km/h).
  • Page 12 5. Remove the hair pin cotter and outrig- ger locking pin. Raise the outrigger into the transport position, and lock in the transport position with the outrig- www.allmand.com...
  • Page 13 Rotating The Light Tower Mast WARNING CAUTION Burn Hazard Rotating the light tower mast will cause • The light fixtures become extremely the light fixtures to swing, and could hot during use. result in minor to moderate injury. Be • Always use caution and heat–resis- careful to rotate the tower slowly, and tant glove when handling the lights be aware of the light fixtures while...
  • Page 14 Raising the Light Tower Mast 1. Before raising the light tower mast, adjust the tower lights to the desired work position. See Adjusting The Lights. Figure 12 www.allmand.com...
  • Page 15 Lowering the Light Tower 2. Turn the main circuit breaker (A, Figure 14) to the ON position. 1. Shut down the lights. See Operating The Tower Lights. 3. Select the preferred mode of opera- tion: Timer / Manual or Photocell. 2.
  • Page 16 Timer Off: 6. Adjust the light fixtures to the trans- • Press the Timer button (B, Figure port position. See Adjusting The 14) again. OFF will appear to the Lights. left of the display. 7. Store the remote tower control. www.allmand.com...

  • Page 17: Maintenance

    8. Close and latch the control panel 4. Inspect the outrigger bars, stabilizer door. jacks and locking pins for proper operation, and for wear, damage or 9. Disconnect the power cord from the corrosion. Replace as needed. 120-volt power source and the power outlet on the side of the unit.

  • Page 18: Specifications

    Light position. Turn hot during use. working switch to Tower position. • Always use caution and heat–resis- Unit not Unit malfunction. Contact tant glove when handling the lights working authorized dealer. or allow the lights to sufficiency cool down before handling. www.allmand.com...
