WHITECROFT LIGHTING Aerial Industry Installation Instructions

PRODUCT DATA

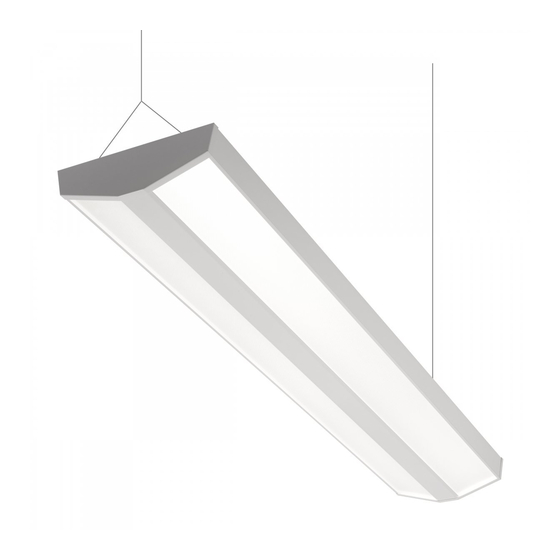

Aerial Industry/Sport is a high output, high efficiency high bay luminaire for general applications.
The luminaire is constructed from sheet steel, polycarbonate and acrylic materials.
Aerial Industry/Sport incorporates the latest high efficiency LED light engines and drivers for
optimum efficiency and luminaire life.
The luminaire range includes a Quadraprism (medium beam), Opal diffuser (wide beam), and
High Rack optic to suit most applications. Polycarbonate option for sports application.
Aerial Industry/Sport can be wire suspended or surface / trunking / drop rod mounted by utilizing
one of the optional suspension kits available.
The luminaire is supplied complete with external plug and socket cable terminations for speed
and ease of wiring.
PRODUCT SPECIFICATION
Finish: Body
Materials: Body Assembly
Rear Backplate
Diffuser Options
End cap
Control Gear: DALI addressable or Fixed output LED Drivers.
Emergency: 3 hr integral emergency pack (Refer to website for options)
4000k high output LED's
Light Source:
Op. Temp: -20 to +25 °C (Medium and wide beam)
-20 to +35 °C (High rack and sport)
Minium 0 °C for all emergency options.
Power: Please refer to website for latest Wattage
IP Rating: IP40 front & rear
IK Rating: IK09 for Aerial Sport
Connection: Plug & Socket - 2.5mm
Suspension: Wire / Trunking / Surface / Drop Rod
TECHNICAL SUPPORT
Telephone: 0161 331 5700
Supply: 240V AC, 50Hz
E-mail: technical@whitecroftlight.com
Connection: 1.5mm SQ Panel mount plug & sockets on rear face
http://www.whitecroftlighting.com
IP Rating: IP20
- White high reflective paint
- Sheet Metal
- 0.9mm mild steel
- 2.5mm Quad Prism Acrylic(medium beam)
- 2mm Opal Satine Acrylic(wide beam)
- 3mm Polycarbonate(sport)
- 15 degree lens with clear diffuser(high rack)
- Injection moulded white Polycarbonate.
2
maximum cable
Aerial Industry
Aerial Sport
HIGH BAY LUMINAIRE
INSTALLATION INSTRUCTIONS
PK/LEAFAERIND
