GENERAL INFORMATION
1. A qualified electrician, in
accordance with IEE wiring
regulations, should carry out
connection to mains wiring.
2. Ensure mains power is
turned off during
maintenance.
3. Ensure that the rated voltage
and frequency requirements
are compatible with the
available mains supply.
4. This unit must be
EARTHED.
5. Cleaning of reflectors and
lenses should be carried out
using clean, soft and lint free
cloths and anti-static
cleaning fluid.
6. Do not carry out high voltage
insulation test, i.e.
500/1000v this may damage
internal components.
7. Replacing the light source
within this luminaire shall
only be carried out by the
manufacturer,
service agent or a
similar qualified
person.
PLEASE NOTE: In
freezer applications
product must be
Variant Length Cable Entry
mounted a minimum
of 1M from any
ventilation including
0.6m
the freezer door.
1.2m
All measurements in
mm unless stated
1.5m
otherwise, see website
TECHNICAL SUPPORT Tel: 0161 331 5700
for product codes and
lumen outputs
e-mail:
SPECIFICATION
Lamp type:
LED 4000°K
Control Gear:
Fixed Output / DALI
Body Material:
Light Grey PC
Diffuser
Opal High Impact PC with
material:
internal prisms
Supply:
220-240V AC, 50Hz
Operating
Standard -20°C to 25°C
temp:
Emergency -5°C to 25°C
2
Conductor:
2.5mm
max
Rating:
IP66 / IK08
Weight:
1283mm
Std 2.75 kg Em. 3.25 kg
1578mm
Std 3.4 kg Em. 3.9 kg
FURTHER INFORMATION
In common with all IP66 rated fittings the ACL
Industry luminaire is protected against ingress of
dust and water projected from a nozzle. However
care must be taken in the siting of these
luminaires. They can be mounted outdoors under
a canopy or covered environment but should not
be in direct sunlight or open areas exposed to
adverse weather conditions. In particular they
should not be installed in an environment liable to
produce standing water on the fitting or IP glands.

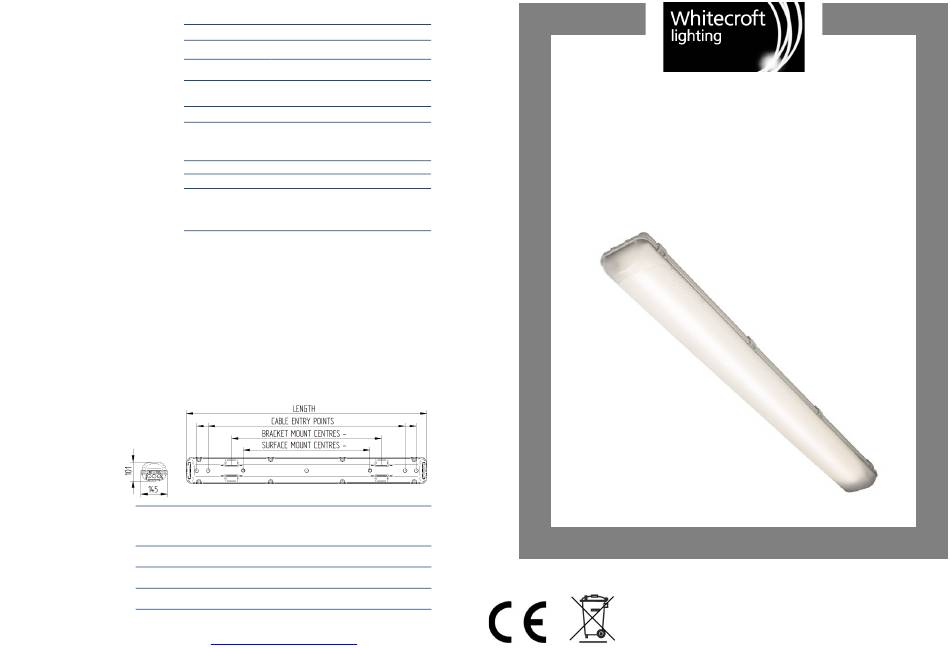

Mount Bracket
Surface Mount
Points
Centres
Centres
663
530
390
266
1283
1050/1170
800
676
1578
1345/1170
1100
976
technical@whitecroftlight.com
ACL INDUSTRY
Installation Leaflet
PK/LEAFLETACLLED
Whitecroft Lighting Limited
Burlington Street, Ashton-under-Lyne, Lancashire OL7 0AX
Telephone +44 (0)870 5 087 087
Registered No. 3848973 England
Feb 2019 - Rev G
Facsimile: +44 (0)870 5 084 210
As above
Registered Office:
