GENERAL INFORMATION
1) A qualified electrician, in accordance with IEE wiring regulations, should carry out connection
to mains wiring.
2) Ensure that the rated voltage and frequency requirements are compatible with the available
mains supply.
3) Cleaning of reflectors and lenses should be carried out using clean, soft and lint free cloths
and anti-static cleaning fluid
4) Do not carry out high voltage insulation test, i.e. 500/1000v this may damage internal
components.
5) Make sure product is isolated before installation.
6) We recommend use of a high temperature Copper Paste on all screws that need to be
accessed during maintenance process, this will prolong the life of the fixings and reduce the
force required to remove the screws.
7) Some luminaires installed in outdoor environments may experience a build-up of internal
condensation. This is due to a difference in temperature between inside and outside the
luminaire which is quite common and acceptable under BSEN60598.
GENERAL MAINTENANCE
To access the inside of the luminaire you will need to remove the 3 size 4 allen key
screws located on the top of the luminaire. Undo the screws at bottom of reflector and
remove to gain access to the gear tray. Then reverse the process to put cover back.
-
TECHNICAL SUPPORT
Tel: 0161 331 5700
E-mail:
technical@whitecroftlight.com
www.whitecroftlighting.com

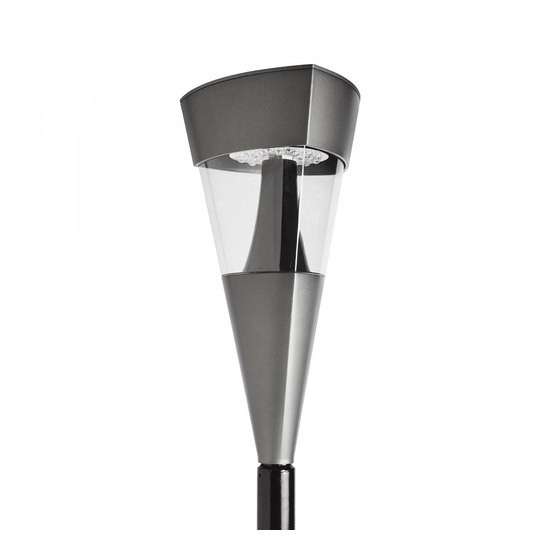

Cygnus SX
Installation Leaflet
PK/LEAF/CYGNSX
Whitecroft Lighting Limited
Burlington Street, Ashton-under-Lyne, Lancashire OL7 0AX
Telephone +44 (0)870 5 087 087
Registered No. 3848973 England
June 2014 - Rev B
Facsimile: +44 (0)870 5 084 210
As above
Registered Office:
Advertisement
Table of Contents
Related Manuals for WHITECROFT LIGHTING Cygnus SX
Summary of Contents for WHITECROFT LIGHTING Cygnus SX
- Page 1 GENERAL INFORMATION Cygnus SX 1) A qualified electrician, in accordance with IEE wiring regulations, should carry out connection Installation Leaflet to mains wiring. 2) Ensure that the rated voltage and frequency requirements are compatible with the available mains supply. 3) Cleaning of reflectors and lenses should be carried out using clean, soft and lint free cloths and anti-static cleaning fluid 4) Do not carry out high voltage insulation test, i.e.
- Page 2 (fig. 5). 8. Slot the head of the luminaire on the The Cygnus SX is a IP65 exterior lighting product. top of the post making sure that it fits with a maximum width of the post top being 60mm, (fig.5).
