SPECIFICATION
Materials
Polycarbonate Diffuser
Polycarbonate Optic Pods (White RAL 9003 or Black)
Aluminium Extrusion (Textured Paint - Metallic Silver, White RAL 9003 or
Black)
Supply
240V
Operating temp
Power
Refer to Whitecroft Lighting Website for full list of power information.
Connection
Terminal block 0.75mm² to 2.5mm²
Ingress protection
IP20
Installation
2m, 3m and corner fittings require 2 people to install.

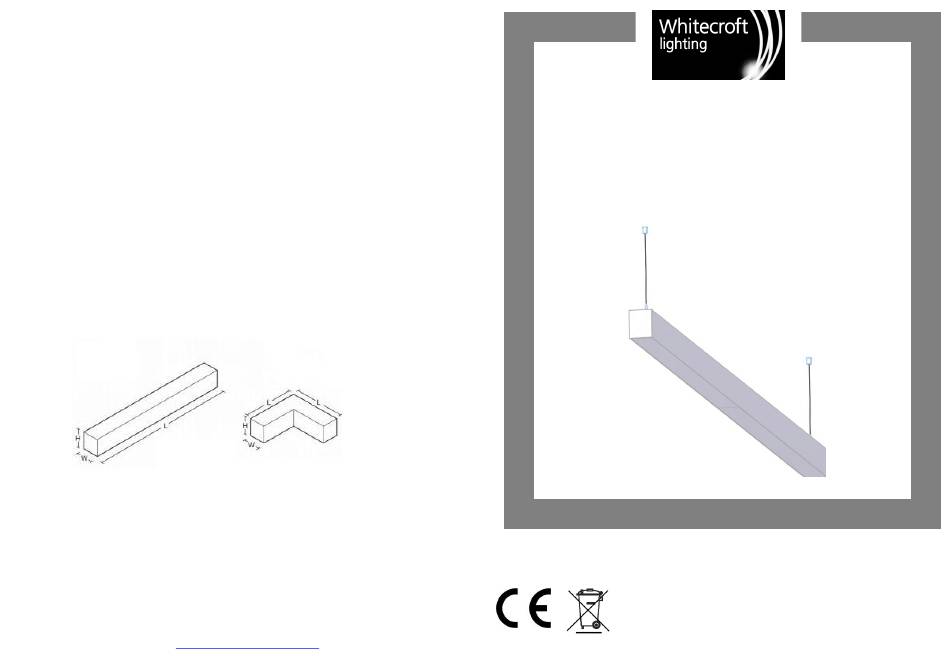

DIMENSIONS
Version
L
H
1000mm
1000
100
1250mm
1250
100
1500mm
1500
100
2000mm
2000
100
3000mm
3000
100
2
Corner
520
100
GENERAL INFORMATION
1) A qualified electrician, in accordance with IEE wiring regulations should carry out
connection to mains wiring.
2) Ensure that the rated voltage and frequency requirements are compatible with the
available mains supply.
3) Do not carry out high voltage insulation test, i.e. 500/1000v this may damage internal
components.
4) Access for connection of the emergency batteries is done by lowering the geartray and
connecting the batteries to the inverter. This is to be done when a power supply is
connected.
TECHNICAL SUPPORT
Telephone: 0161 331 5700
E-mail:
technical@whitecroftlight.com
http://www.whitecroftlighting.com/
8
-5˚c to 25˚c
W
KG
KG (EM)
INFILL
80
3.5
4.0
3.0
80
4.5
5.0
3.5
80
5.0
5.5
4.5
80
7.0
7.5
6.0
80
10.0
10.5
N/A
80
4.0
N/A
3.0
Avenue Metro
Suspended and Surface
Installation Instructions
PK/AVMET-INSTSUS
Whitecroft Lighting Limited
Burlington Street, Ashton-under-Lyne, Lancashire OL7 0AX
Telephone
+44 (0)161 330 6811
Registered No. 3848973 England
Revision 4
AUG 2019
Facsimile:
+44 (0)161 331 5855
www.whitecroftlighting.com
As above
Registered Office:
Advertisement
Table of Contents
Related Manuals for WHITECROFT LIGHTING Avenue Metro Suspended
Summary of Contents for WHITECROFT LIGHTING Avenue Metro Suspended
- Page 1 Avenue Metro -5˚c to 25˚c Supply 240V Operating temp Suspended and Surface Power Refer to Whitecroft Lighting Website for full list of power information. Connection Terminal block 0.75mm² to 2.5mm² Installation Instructions Ingress protection IP20 Installation 2m, 3m and corner fittings require 2 people to install.
- Page 2 4. Surface Mounting Option part code AOSMOKIT (supplied as a separate item) Suspended/Surface Pod Optic, Prism/Diff & Infills for Straight and Corner sections a. Fix surface bracket to ceiling using below guide (screws not supplied), two brackets required for straight fittings and one for a corner fitting. 1.
- Page 3 For Corner Sections use the alignment bracket and screws supplied with the continuous kit AOCMOKIT. Discard the CAM. With the gear tray of the 7. Electrical Connection (incoming) adjacent fittings dropped, slide the alignment bracket into one of the adjacent fittings and secure using two of the screws supplied. Slide the other alignment bracket into the other adjacent fitting but do not secure with screws.
- Page 4 9. Through Cable Connection. Continue… 11. Replacement of the diffuser, pods and infills can now be done. Diffuser – On longer continuous runs the last diffuser may have to be trimmed. Continuous Straight Options. For continuous options remove the two blank terminal blocks from the end of the The cut end will go into the space within the endcap.
