Manual Not For Use
in USA and Canada!
G 4000 OH
9.801-642.0 08/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G 4000 OH and is the answer not in the manual?

Questions and answers

Related Manuals for Kärcher G 4000 OH

Summary of Contents for Kärcher G 4000 OH

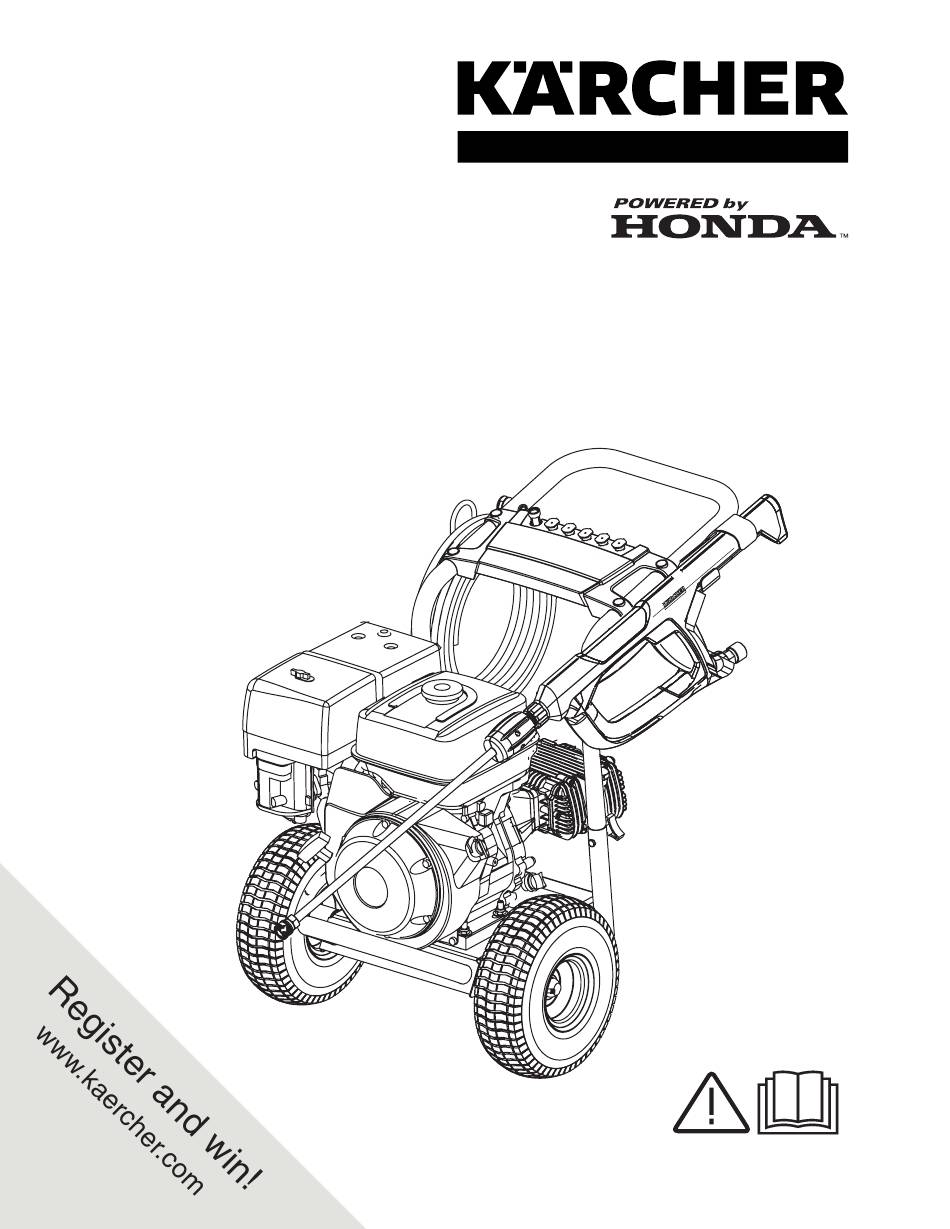

  • Page 1 Manual Not For Use in USA and Canada! G 4000 OH 9.801-642.0 08/18...

  • Page 2: Table Of Contents

    Please dispose your old appliances Specifications using appropriate collection systems. Notes About the ingredients (REACH) G 4000 OH Servo Press You will find current information about the Operating Pressure 4000 PSI ingredientents at: Water Volume 13.6 LPM...
  • Page 3 HIGH PRESSURE WASHER OPERATOR MANUAL Symbols on the machine Safety Alert Symbols DANGER The high pressure jet may not Indicates an imminently hazardous situation be directed at persons, animals, which, if not avoided, will result in death or live electrical equipment or at the serious injury.

  • Page 4: Model Overview

    MODEL OVERVIEW 1 Handle 9 High pressure outlet 2 Trigger gun 10 Detergent suction tube with filter 3 Trigger gun safety lock 11 Quick connect nozzles 12 Spark plug 4 High pressure hose 13 Water inlet filter 5 Gas tank 14 Remote Pressure Control 6 Spray wand 15 Tap Adaptor...

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING n Read the operating instructions of the engine manufacturer before start-up and Risk Of Explosion –Do not spray flam- follow the safety instructions carefully. mable liquids. Operate only where open flame or torch is permitted. WARNING n Do not use acids, solvents, or any alka- When using this product, basic precau- line or flammable material in this product.

  • Page 6: Assembly Instructions

    IMPORTANT SAFETY INSTRUCTIONS n Do not leave machine running unattended. n Avoid tipping machine on its side. SAVE THESE INSTRUCTIONS WATER SUPPLY (Cold Water Only) CAUTION n Flow rate of water supply must not fall below 15 L/Min. (Liters per minute) When connecting to water sup- n Flow rate can be determined by running ply mains, local regulations of...
  • Page 7 Hardware (included) Description Purpose Illustration Quick Connect Nozzles Kit Nozzle Kit Assembly Wand Wand Assembly Hose Holder Assembly Washer Hose Holder Assembly Tap Adaptor Quick Connection Assembling STEP 1: STEP 3: Attach the handle to the frame of the Mount the hose holder to the handle and pressure washer.

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS STEP 1: STEP 3: Pull the spring-loaded collar of the wand Lock the safety lock. back to insert your choice of quick connect nozzle. STEP 4: Adjust working pressure and water vol- ume by turning the Remote Pressure Control either direction.

  • Page 9: Using The Accessories

    OPERATING INSTRUCTIONS STEP 11: STEP 8: Open fuel valve. Pull the choke rod to the Connect garden hose to unit`s water inlet. ON position (on a warm engine, leave the choke rod in the OFF position). STEP 12: Move the engine stop switch to the ON STEP 9: position.

  • Page 10: Working With Detergents

    WORKING WITH DETERGENTS Detergents can only be applied with the STEP 4 black detergent nozzle. With the engine running, pull trigger to STEP 1: operate unit. Install the black detergent nozzle for de- Liquid detergent is drawn into the unit and tergent application at low pressure.

  • Page 11: Shutting Down & Clean-Up

    SHUTTING DOWN & CLEAN-UP STEP 1: STEP 5: Release trigger and engage gun safety If detergents have been used, remove lock. detergent suction tube from container and insert into 3.78 liters of fresh water. Siphon water at low pressure for one minute to clear the line of residual deter- gent.

  • Page 12: Cleaning Tips

    CLEANING TIPS Deck Cleaning Cement Patios, Brick and Stone (with or without detergent). Pre-rinse deck (with or without detergent). Pre-rinse and surrounding area with fresh water. If us- cleaning surface with fresh water. If using ing Kärcher Deck Wash, apply to surface at Kärcher Pressure Wash or Degreaser, apply low pressure.

  • Page 13: Troubleshooting

    CLEANING TIPS Recommendations Optional Accessories n Before cleaning any surface an incon- Optional accessories are available to further spicuous area should be cleaned to test enhance your cleaning capabilities. These spray pattern and distance for maximum accessories are accurate as of the printing cleaning results.
  • Page 14 TROUBLESHOOTING Symptom Cause Solution OUTPUT PRES- Spray nozzle is obstructed Blow out or remove debris with a fine SURE needle VARIES HIGH Calcified gun, hose or spray Run distilled vinegar through detergent AND LOW wand suction tube. NO DETER- Detergent suction tube not Check connection GENT properly connected to the...
  • Page 15 WARRANTY INFORMATION High Pressure Washers Limited warranty Cold water gasoline pressure washers This Kärcher product is warranted by Kärcher to be free of defects in workmanship and materials under normal use. Specific warranty applies to: • Kärcher KPS and KXS series engines are warranted for three (3) years on parts and labor. •...
  • Page 16 INFORMATIONS DE GARANTIE • Mécanismes ou accessoires non distribués ou approuvés par Kärcher. • L'utilisation de ces mécanismes ou accessoires annulera la garantie. • Les réparations effectuées par l'utilisateur ou tout autre centre de service non autorisé par Kärcher. De plus, toute tentative pour fixer l'équipement ou les accessoires Kärcher, annulera la garantie en question.
  • Page 17 Alfred Kärcher Ges.m.b.H. Kärcher OY Kärcher AS Karcher Asia Pacific Pte. Ltd. Lichtblaustraße 7 Yrittäjäntie 17 Stanseveien 31 5 Toh Guan Road East 1220 Wien 01800 Klaukkala 0976 Oslo #01-00 Freight Links  (01) 250 600  0207 413 600 ...
