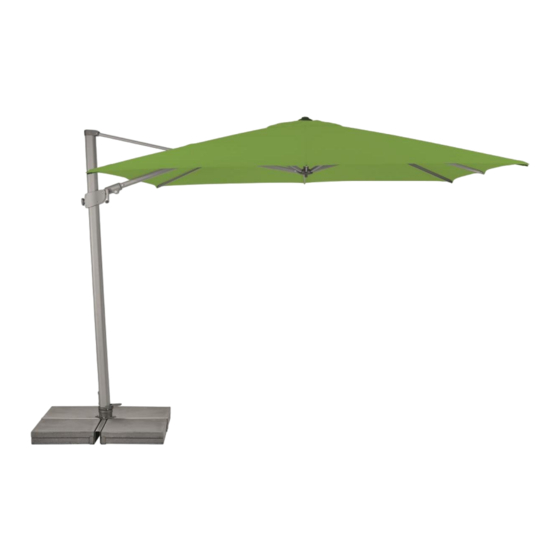

Glatz Sun Comfort Varioflex LED Service Manual

Sunshade
Hide thumbs Also See for Sun Comfort Varioflex LED:

Advertisement

Quick Links

Download this manual
Sunshade
Varioflex LED
Varioflex LED
Technical alterations reserved.
© Glatz AG 04/2019
Service
Manual

Advertisement

loading

Related Manuals for Glatz Sun Comfort Varioflex LED

Summary of Contents for Glatz Sun Comfort Varioflex LED

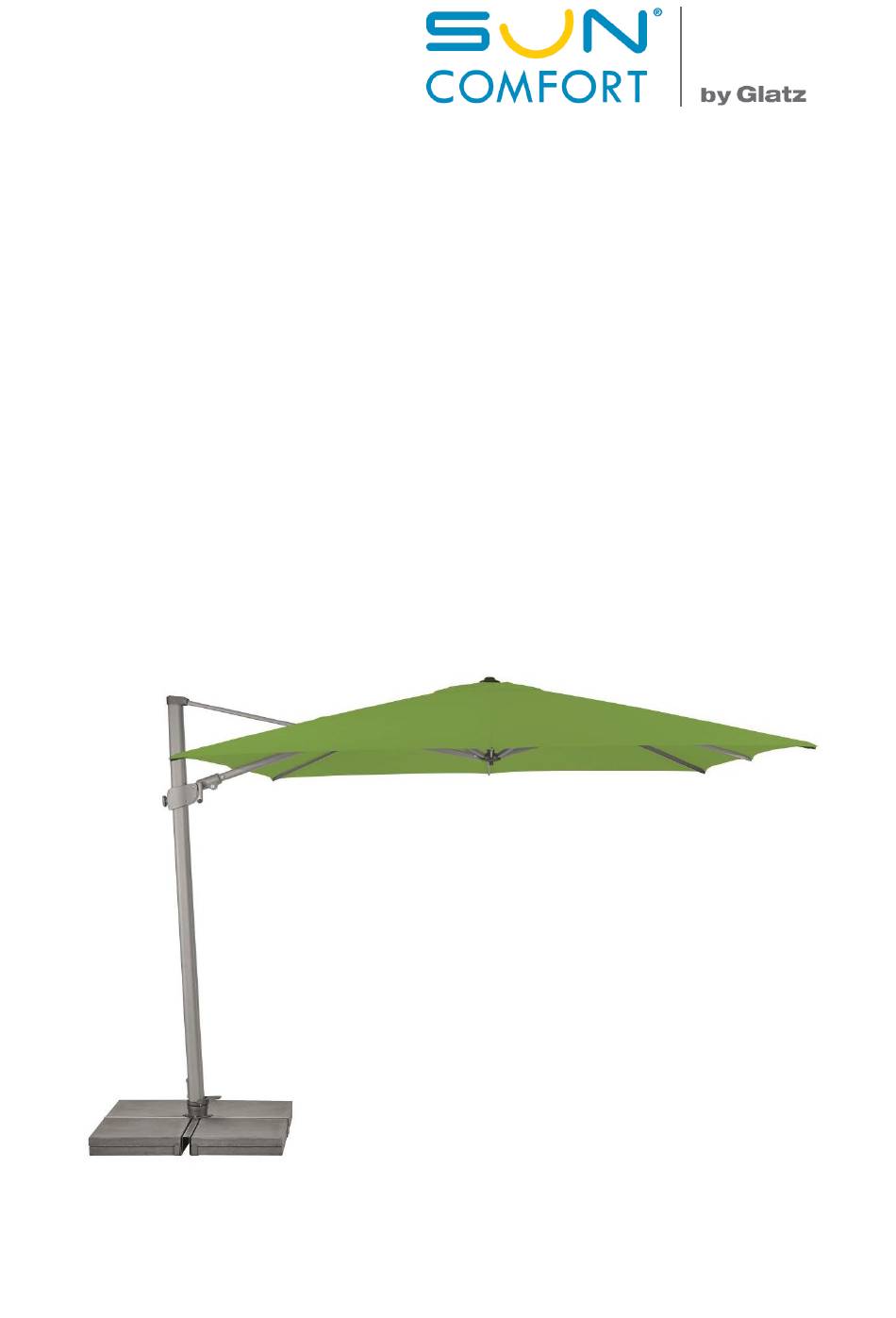

  • Page 1 Sunshade Varioflex LED Service Manual Varioflex LED Technical alterations reserved. © Glatz AG 04/2019...

  • Page 2: Table Of Contents

    This service manual describes the following operations: Disassemble cover .................... 3 1.1 Disassembly and assembly ................3 Change of carriage/rope/gear ................5 2.1 Disassembly and assembly ................5 General information ..................10 Glatz AG 2019_Servicemanual_VarioflexLED_en Path: Q:\Marketing-Kommunikation\Drucksachen\Service manual\Suncomfort\2019_Servicemanual_VarioflexLED_en.doc Created: Edina Hamzic/03.04.2019 Updated:...

  • Page 3: Disassemble Cover

    To also remove the fabric from the supporting arm, first release the lock on the carriage, then move the carriage upward until the supporting arm is slightly lowered. The fixing screw can then be easily released. Glatz AG 2019_Servicemanual_VarioflexLED_en Path: Q:\Marketing-Kommunikation\Drucksachen\Service manual\Suncomfort\2019_Servicemanual_VarioflexLED_en.doc Created: Edina Hamzic/03.04.2019...
  • Page 4 Loosen the Velcro fastening along the supporting arm and return the carriage to the starting position. Using a ladder, remove the LED with a ¼ turn, remove the top cap from the sunshade in vertical position, then carefully pull the cover over the sunshade frame. Glatz AG 2019_Servicemanual_VarioflexLED_en Path: Q:\Marketing-Kommunikation\Drucksachen\Service manual\Suncomfort\2019_Servicemanual_VarioflexLED_en.doc Created: Edina Hamzic/03.04.2019...

  • Page 5: Change Of Carriage/Rope/Gear

    Pull the rod(s) outward to reduce the tension of the rope. This way, you can reach the end of the rope. Loosen the knot and remove the reel. Now slowly lower the rod(s) again. Glatz AG 2019_Servicemanual_VarioflexLED_en Path: Q:\Marketing-Kommunikation\Drucksachen\Service manual\Suncomfort\2019_Servicemanual_VarioflexLED_en.doc Created: Edina Hamzic/03.04.2019...
  • Page 6 Loosen the cylinder head screws to the rear of the pole, so that the sunshade can be lifted from the ground attachment. For repair, the sunshade should be positioned on a clean, flat surface. To replace the carriage, the side with the hex profile must point downward. Glatz AG 2019_Servicemanual_VarioflexLED_en Path: Q:\Marketing-Kommunikation\Drucksachen\Service manual\Suncomfort\2019_Servicemanual_VarioflexLED_en.doc Created: Edina Hamzic/03.04.2019...
  • Page 7 Sunshade Varioflex LED Loosen the top cylinder head screw. The carriage can then be loosened with the screw knob and pulled downward. Glatz AG 2019_Servicemanual_VarioflexLED_en Path: Q:\Marketing-Kommunikation\Drucksachen\Service manual\Suncomfort\2019_Servicemanual_VarioflexLED_en.doc Created: Edina Hamzic/03.04.2019 Updated:...
  • Page 8 After removing the carriage, the 3 hexagon socket screws at the bottom of the supporting arm can be loosened. The top shell can now be loosened and removed. You need to remove (drive out) the pin. Glatz AG 2019_Servicemanual_VarioflexLED_en Path: Q:\Marketing-Kommunikation\Drucksachen\Service manual\Suncomfort\2019_Servicemanual_VarioflexLED_en.doc Created: Edina Hamzic/03.04.2019...
  • Page 9 Varioflex LED To ensure that the new rope is inserted correctly, you can attach the old, loose rope end to the new rope (with duct tape). Then carefully reinsert the rope over the castors. Glatz AG 2019_Servicemanual_VarioflexLED_en Path: Q:\Marketing-Kommunikation\Drucksachen\Service manual\Suncomfort\2019_Servicemanual_VarioflexLED_en.doc Created: Edina Hamzic/03.04.2019...

  • Page 10: General Information

    During reassembly of the gear, observe the castor, as it may slip. Gear assembly Rope coil winding 3. General information · Re-assemble in reverse order to disassembly as described above. · Check for proper function after completing any repair. Glatz AG 2019_Servicemanual_VarioflexLED_en Path: Q:\Marketing-Kommunikation\Drucksachen\Service manual\Suncomfort\2019_Servicemanual_VarioflexLED_en.doc Created: Edina Hamzic/03.04.2019 Updated:...
