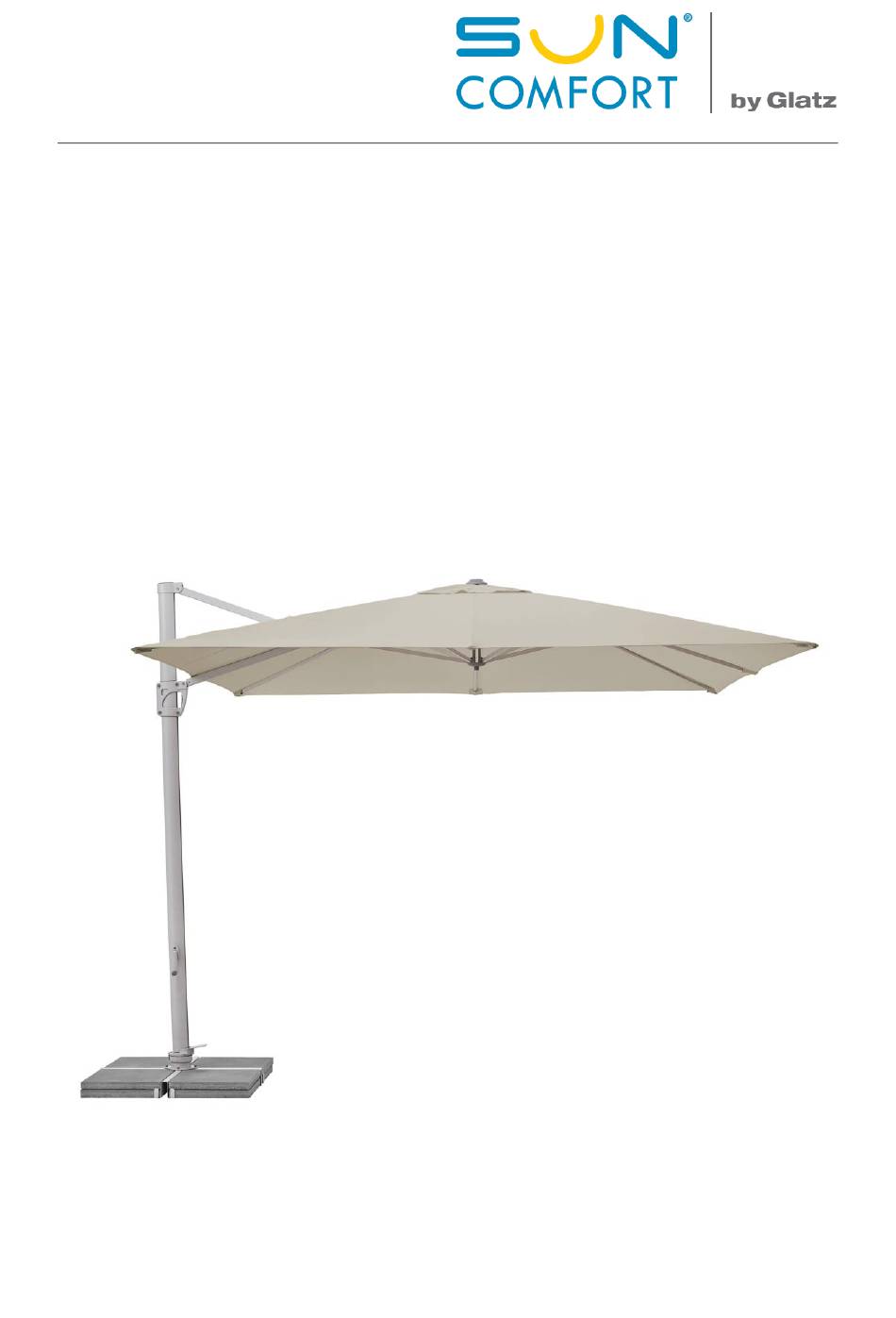

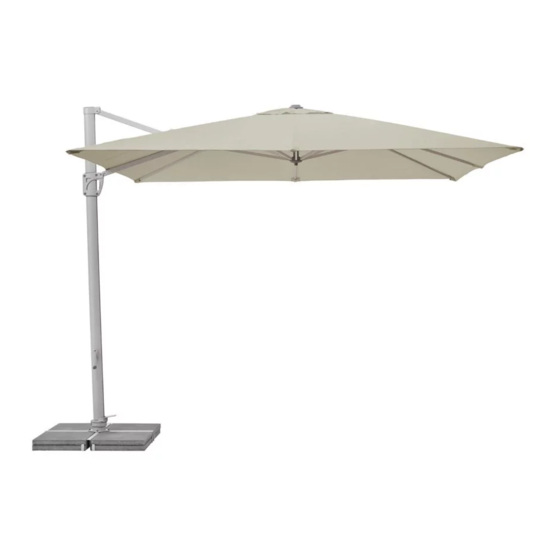

- Page 1 Sunflex Sunshade Sunflex Service Manual Technical alterations reserved. © Glatz AG 11/2015...
-
Page 2: Table Of Contents
Sunflex Sunshade In this service manual the following operations are described: Disassemble cover .................... 3 1.1 Disassembly and assembly ................3 Change of gear/rope ..................5 2.1 Disassembly and assembly ................5 General ....................... 9 latz AG 116191_en_2016_Servicemanual_Sunflex_de_Englisch Path: K:\Marketing\Drucksachen\Service Manual\Suncomfort\2016_Servicemanual_Sunflex_de.doc Created: Franziska Breitenmoser/30.03.2016 Updated: Released: Hans Heierli/04.04.2016... -
Page 3: Disassemble Cover
Sunflex Sunshade Preparation: Provide a clean surface on which to lay the sunshade Tools: Cordless drill (hex bits) or cross-head screwdriver, stepladder With the sunshade standing upright, proceed as follows: 1. Disassemble cover Disassembly and assembly Pull out all the rods from the fabric pockets on the closed sunshade. To also remove the fabric from the carrier arm, first release the lock on the slide, then pull the slide upwards until the carrier arm is slightly lowered. - Page 4 Sunflex Sunshade Loosen the Velcro fastening along the carrier arm and return the slide to the starting position. Use a ladder to remove the top cap on the sunshade standing upright and subsequently pull the cover carefully over the sunshade frame. latz AG 116191_en_2016_Servicemanual_Sunflex_de_Englisch Pfad: K:\Marketing\Drucksachen\Service Manual\Suncomfort\2016_Servicemanual_Sunflex_de.doc...
-
Page 5: Change Of Gear/Rope
Sunflex Sunshade 2. Change of gear/rope Disassembly and assembly Loosen the sliding cap on the closed sunshade and pull it down from the sliding collar. Then loosen both cross-head screws. Pull the rod(s) out to reduce the tension of the rope. Once reaching the end of the rope, loosen the knot and remove the reel. - Page 6 Sunflex Sunshade To replace the rope and the gear, the sunshade must first be lifted from the ground attachment and placed on a clean surface. Connect the old, loose end of the rope with the new rope (duct tape) and then reinsert this carefully over the castors.
- Page 7 Sunflex Sunshade Press the lock on the slide to pull the top of the pole out more easily. Then remove the pin at the upper end of the pole and extract the pulley case and the pulley. latz AG 116191_en_2016_Servicemanual_Sunflex_de_Englisch Pfad: K:\Marketing\Drucksachen\Service Manual\Suncomfort\2016_Servicemanual_Sunflex_de.doc Created: Franziska Breitenmoser/30.03.2016 Updated:...
- Page 8 Sunflex Sunshade Carefully loosen the crankcase and remove. Warning: when removing the case please ensure the small spring does not get lost. Pull the crank axle out of the crankcase. latz AG 116191_en_2016_Servicemanual_Sunflex_de_Englisch Pfad: K:\Marketing\Drucksachen\Service Manual\Suncomfort\2016_Servicemanual_Sunflex_de.doc Created: Franziska Breitenmoser/30.03.2016 Updated: Released: Hans Heierli/04.04.2016...
-
Page 9: General
Sunflex Sunshade Pull the rope coil attached to the rope out of the pole, loosen the old rope and, as pictured below, insert the new one. 3. General Re-assemble in reverse order. Check performance after completing any repair. latz AG 116191_en_2016_Servicemanual_Sunflex_de_Englisch Pfad: K:\Marketing\Drucksachen\Service Manual\Suncomfort\2016_Servicemanual_Sunflex_de.doc...
