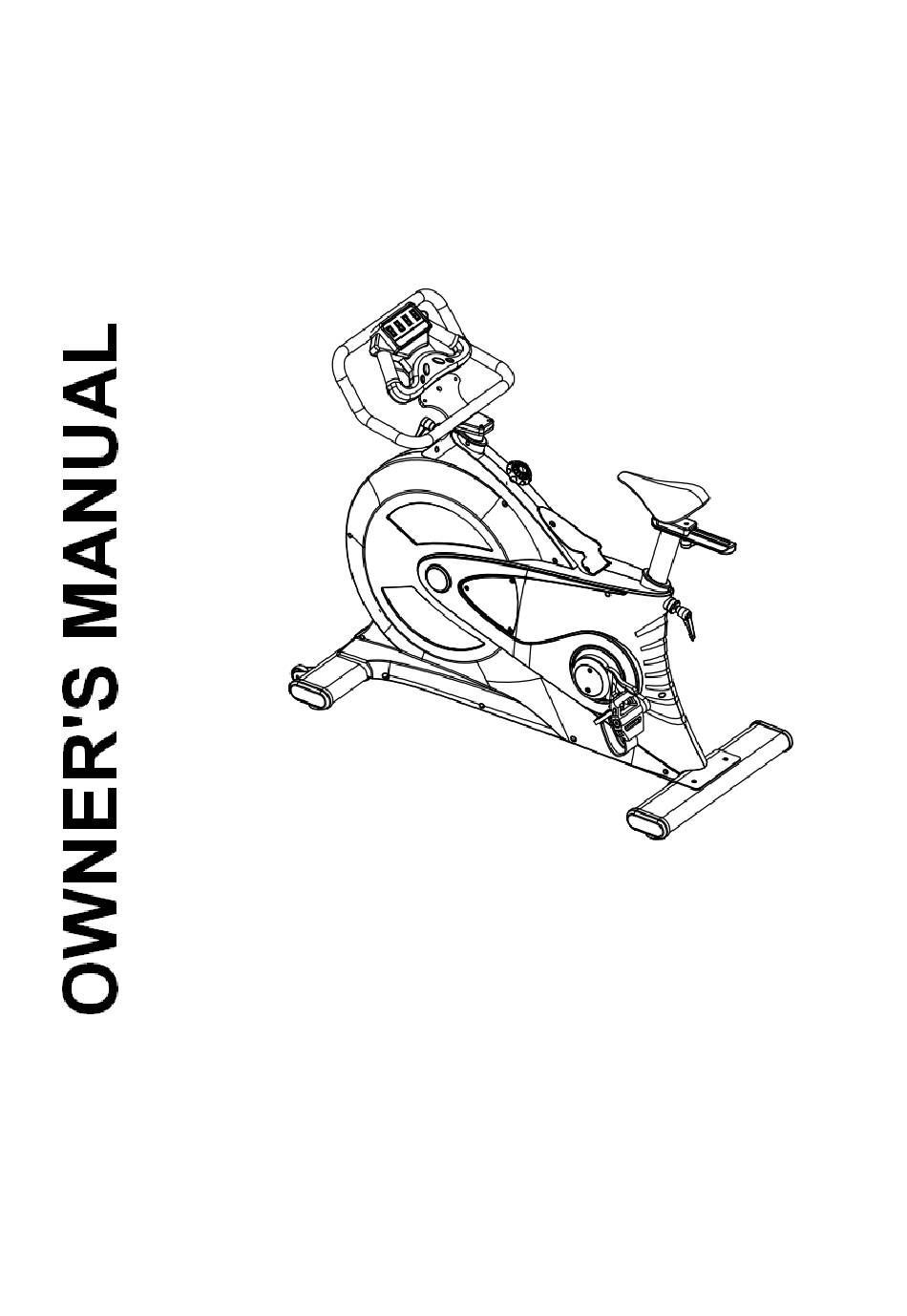

- Page 1 REVO-220 GROUP CYCLING BIKE Note: The series and model number is subject to the confirmation of the order. The training equipment is in compliance with EN957-10 class S (S=studio)
- Page 2 Safety instruction Warning this Manual includes important safety information, please always read the safety instruction carefully before using the equipment. This training equipment is only intended for using in training areas of organizations such as sport associations, educational establishments, hotels, clubs and studios, where access and control is specifically regulated by the owner (person who has the legal responsibility).
- Page 3 REVO-220 GROUP CYCLING BIKE . ASSEMBLY SPECIFICATIONS 1、Assembly drawing Figure 1 1、Assembly Parts List Name Part No. Quantity 0100 Front Feet Components 0200 Back Feet Components 0300 Handlebar Components 0400 Cushion Components...
- Page 4 0500 Foot Pedal 0600 Main Frame Components 0700 Front Adjustable Components 0800 Back Adjustable Components ∅10 Flat Washer M 10*25 Half Round hexagon screw M10*25 Cylinder head hexagon screw M10 Hex Nuts ∅30 Screw Cap “7”Shape Pin 2. Assembly Steps Connecting 9.11.13 to 0100 Front Feet Components, then to 0600 Main Frame Components Connecting 9.11.12.13 to 0200 Back Feet Components, then to 0600 Main Frame Components Connecting 9.10 to 0700 Front Adjustable Components, lock the 0300 Handlebar components, then...
- Page 5 B、Specifications of use 1、Adjustment of Braking Knob Adjust to a proper position according to user’s bearing capability before use. Note：On the Braking Knob,“+”means Increase resistance，“—”means Decrease Resistance, Pressing it down means Emergency stop. 2、Adjustment of Handlebar and saddle Adjust the position of the handlebar and Saddle according to the user’s height before use.
- Page 6 REVO-220 GROUP CYCLING BIKE height of the saddle to the top of the hip see figure 4. 2) Adjust the height of the handlebar so the lowest part is the same height as the saddle ,see figure 3) To adjust the saddle horizontally, place the pedal pointing forward. Adjust the saddle in order for...
- Page 7 REVO-220 GROUP CYCLING BIKE 4 、 Precautions during use Teach the young people about good behaviour on the cycles. E.g. always keep hands on handlebar when cycling in upright position. see figure 11. 5、Way of stop As there’s a big force of inertia of the wheel, DON’T get off the bike when the crank is still working.
- Page 8 Figure 3 REVO-220 GROUP CYCLING BIKE...
