ICP G9MAC Series Installation Instructions Manual page 14

Figure 10 − continued
Rotate elbow to
desired position and
torque clamp on inlet
15 lb.−in.
Slide relief tube in
stand−offs to adjust
length.
Attach condensate
trap to collector box
with screw.
Align trap over middle
and right−hand port on
collector box.

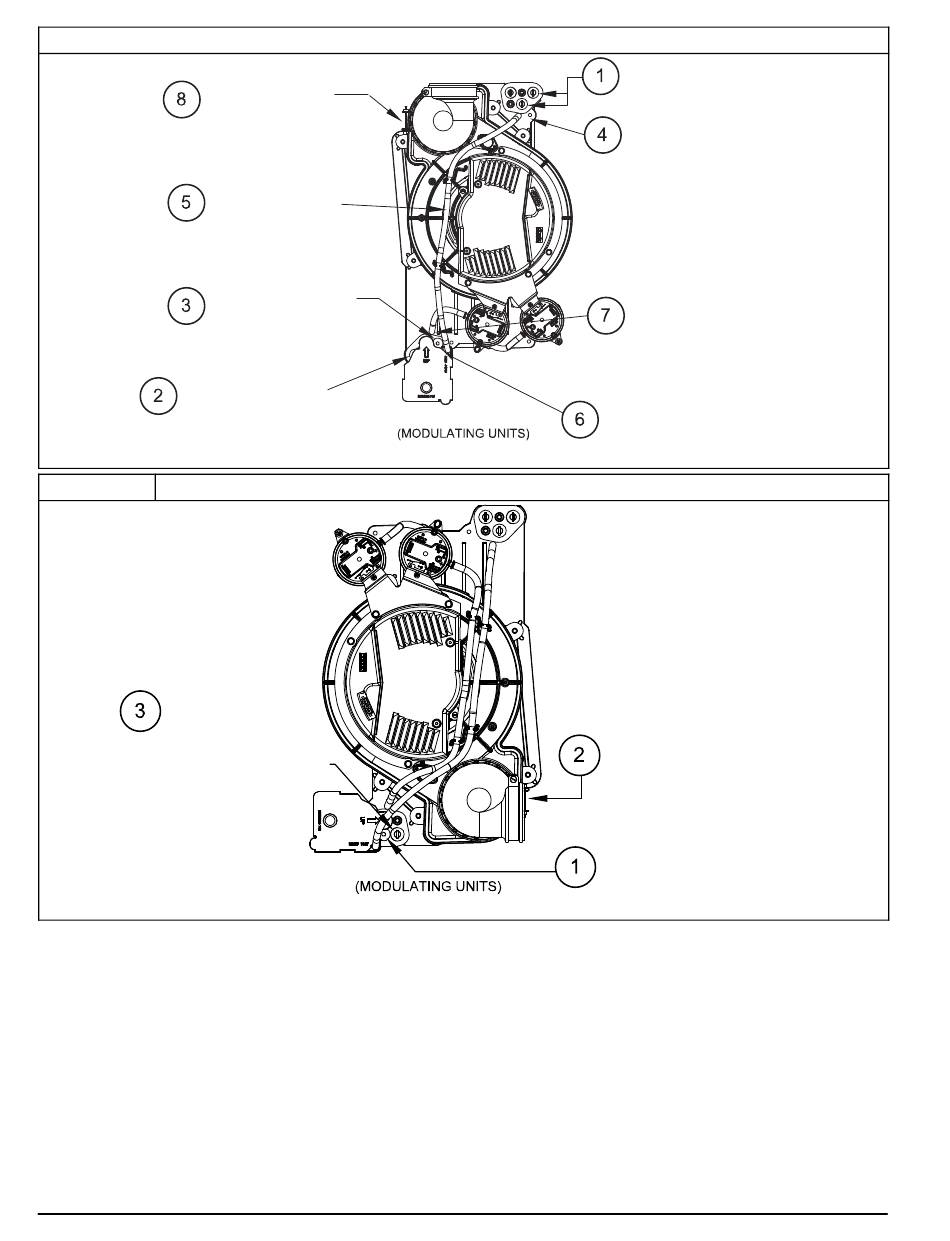

Figure 11 Unconverted Factory Configuration as viewed in the Horizontal Right Orientation
Remove plug from
collector box.
DO NOT DISCARD.
14
Horizontal Left Trap Configuration
Representative drawing only, some models may vary in appearance.
Representative drawing only, some models may vary in appearance.
Specifications subject to change without notice.
Install plugs in open
ports on collector box.
Connect relief tube to
port on collector box.
Trim excess tube.
Route pressure switch tube
underneath relief tube and
connect to port on collector box.
Connect relief tube to
relief port on condensate
trap.
If alternate vent position
is required, loosen clamp
on inlet of vent elbow.
Remove trap from
collector box.
440 01 4201 03
A11586B
