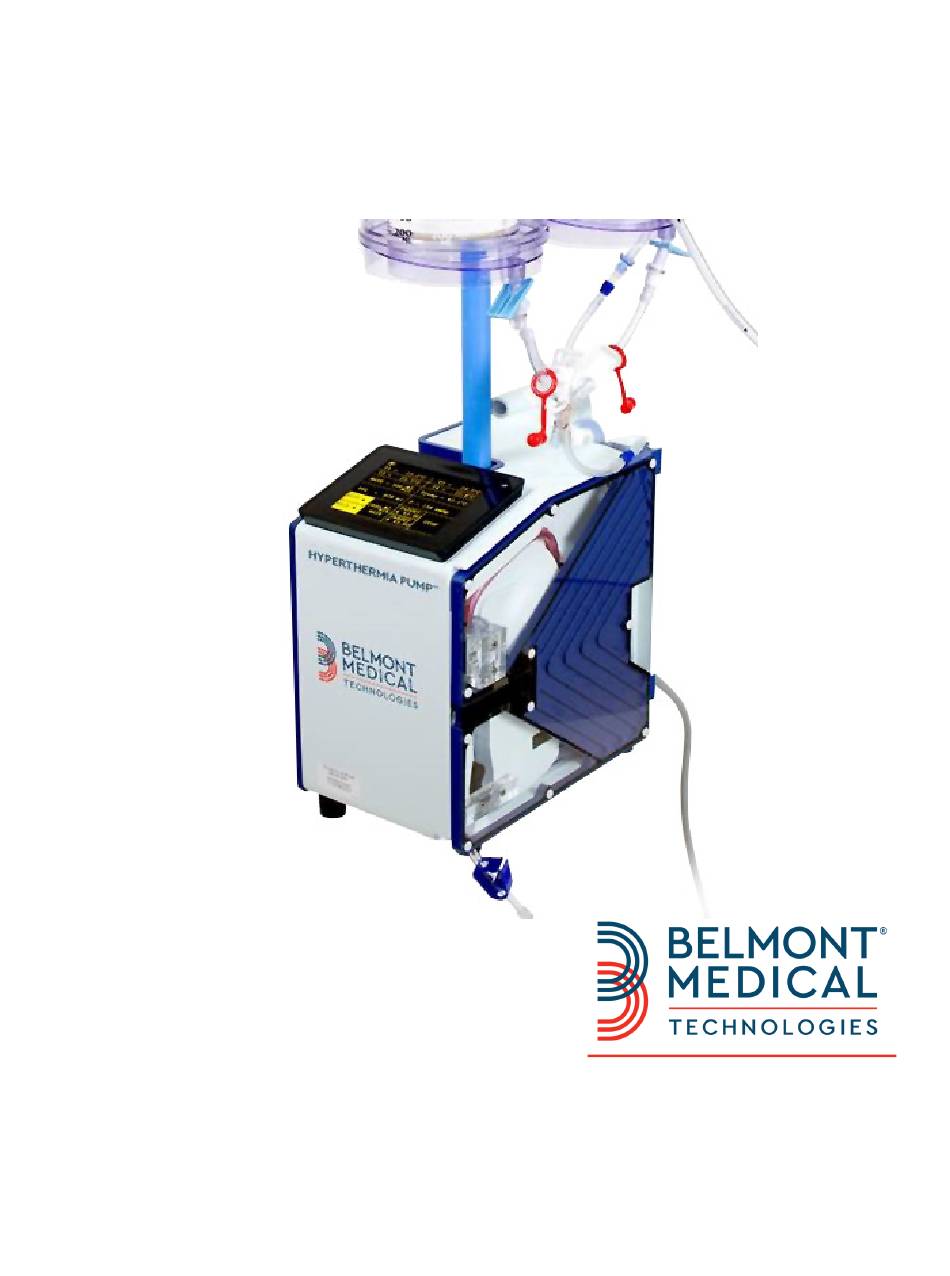

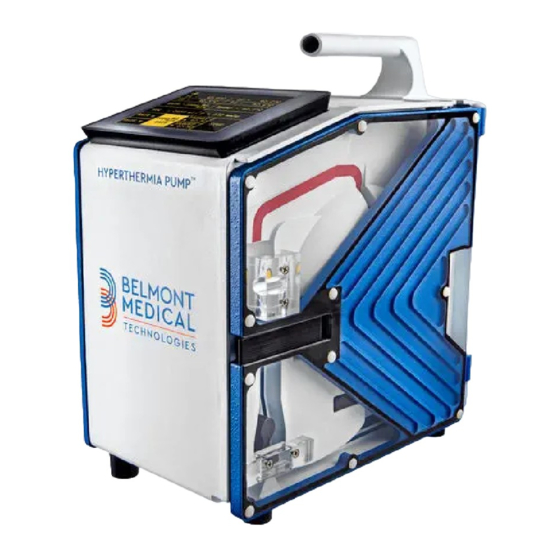

- Page 1 Hyperthermia Pump™ OPERATIONAL CHECK OUT MANUAL 780 BOSTON ROAD BILLERICA, MA 01821, USA T: 866.663.0212 F: 978.663.0214 TECHNICAL SUPPORT USA: 855.397.4547 WORLDWIDE: +1.978.663.0212 TECHSUPPORT@BELMONTMEDTECH.COM WWW.BELMONTMEDTECH.COM...
- Page 2 Hyperthermia Pump™ OPERATIONAL CHECK OUT MANUAL Belmont Medical Technologies 780 Boston Road Billerica, MA 01821, USA Emergo Europe BV Prinsessegracht 20 2514 AP The Hague The Netherlands +31 (0) 70 345 8570 All service calls & questions should be directed to USA: 855.397.4547...
-
Page 3: Table Of Contents
Hyperthermia Pump: Parameters Setting and Preventive Maintenance Hyperthermia Pump Operational Check Out Manual Table of Contents ........................Page No Parameters Setting, Service, and Preventive Maintenance ..............2 System Setup ........................3 Date/Time ......................4 Alarm Volume ......................5 Display Brightness ....................5 Key Rate .......................5 Pressure Limit .......................5 Service and Preventive Maintenance Schedule ..............6 Schedule 1 ...........................6... -
Page 4: Parameters Setting, Service, And Preventive Maintenance
Hyperthermia Pump: Parameters Setting and Preventive Maintenance PARAMETERS SETTING, SERVICE, AND PREVENTIVE MAINTENANCE Hyperthermia Pump requires minimal service and care. Preventive maintenance should be performed regularly to optimize performance and reduce the likelihood of downtime. Listed below are routine maintenance (as needed), periodic maintenance (at least once a year), and parameters setting. The instrument does not need regular calibration. -
Page 5: System Setup
Hyperthermia Pump: Parameters Setting and Preventive Maintenance SYSTEM SETUP Changes in system setup can be made to: Date and time: Set the real time clock and date Audible alarm volume: Set the audible alarm volume level Display brightness: Change the display brightness ... -
Page 6: Date/Time
Hyperthermia Pump: Parameters Setting and Preventive Maintenance Date/Time Press DATE TIME in the CALIBRATION/SET-UP screen to set the time and date. Press either the TIME or DATE key. Screen after pressing DATE TIME key A numerical keypad will be displayed. Enter the appropriate time or date information. Enter the appropriate time in 24-hour clock format (i.e. -
Page 7: Alarm Volume
Hyperthermia Pump: Parameters Setting and Preventive Maintenance Alarm Volume ALARM VOL SET is used to set the volume level of the audible alarm. There are seven levels of alarm volume. Each time the key is pressed, a tone will sound to indicate the present alarm volume level. -
Page 8: Service And Preventive Maintenance Schedule
Hyperthermia Pump: Parameters Setting and Preventive Maintenance SERVICE AND PREVENTIVE MAINTENANCE SCHEDULE Schedule 1 To be performed by either the Clinical User or a Biomedical Technician (BMET). Interval Routine Maintenance Before or After Every Every 6 Each Use Month Months Clean and/or Disinfect Exterior, if necessary. -
Page 9: Routine Maintenance
Hyperthermia Pump: Parameters Setting and Preventive Maintenance ROUTINE MAINTENANCE Clean and/or Disinfect Exterior Clean the outside surfaces of the system and inside the door after each use. Turn the pump to STANDBY and unplug the power cord. Wipe the surface with a cloth moistened with water or isopropyl alcohol. Note: Avoid the use of acetone or other solvents that might damage the surface. -
Page 10: Seals
Hyperthermia Pump: Parameters Setting and Preventive Maintenance Seals Inspect the seal around the unit to make certain it is in good condition. Check also the seal around the touch screen and ceramic disks. Use Dow Corning 732 multipurpose RTV sealant or equivalent if needed to maintain fluid resistance. -
Page 11: Testing The System And Operational Check-Out
Hyperthermia Pump: Parameters Setting and Preventive Maintenance TEST/SYSTEM OPERATIONAL CHECK- The device should be serviced periodically, in accordance to schedule 1 and 2, by a qualified technician. Material Required: 3-Spike Disposable Set, REF 903-00006 Bio-Tek Safety Analyzer or equivalent ... -
Page 12: System Operational Checkout
Hyperthermia Pump: Parameters Setting and Preventive Maintenance System Operational Check-Out Install 3-Spike Disposable set, REF 903-00006. Turn power switch ON and agree to accept full responsibility at start-up sequence. Wait for PRIME screen to appear. Close bag clamps. Hang and spike fluid bag. Open bag clamp(s). -
Page 13: Electrical Safety Test - Leakage Current
Hyperthermia Pump: Parameters Setting and Preventive Maintenance Electrical Safety Test - Leakage Current Equipment required: Fluke Safety Analyzer, Model 505 or equivalent 2 Liters of room temperature saline Hyperthermia Pump Setup: Plug the into AC outlet on the panel of the Safety Analyzer. - Page 14 Hyperthermia Pump: Parameters Setting and Preventive Maintenance Patient Leakage Current: Install the disposable set and prime with saline and proceed to the Infuse screen. Attach 12 to 16 gauge stainless steel cannula or hypodermic needle tip to the end of patient line and attach the Safety Analyzer large clamp to the cannula or needle tip.
-
Page 15: Hardware Verification
Hyperthermia Pump: Parameters Setting and Preventive Maintenance Hardware Verification Properly install and prime the 3-Spike disposable set, REF 903-00006, before beginning the Hardware Verification process. Hardware mode verifies: Valve operation Fluid Out and Air Detectors Battery voltage. Flow Rate (Pump speed) Input and Output Temperature Probes, and Pressure sensor. - Page 16 Hyperthermia Pump: Parameters Setting and Preventive Maintenance Hardware Status Screen Status Line Reading Pump Speed 0, 10, 100, 500, 750 and 1000 ml/min Input Temperature Temperature in ⁰C, probe ambient reference in parentheses Output Temperature Temperature in ⁰C, probe ambient reference in parentheses Pressure Pressure in mmHg Fluid Out Detector Status...
- Page 17 Hyperthermia Pump: Parameters Setting and Preventive Maintenance Hardware Verification: Valve Press LEFT VALVE, confirm that the valve wand (valve pincher) moves to the left. Press OPEN VALVE, confirm that valve wand moves to the middle position. iii. Press RIGHT VALVE, confirm that the valve wand moves to the right. Leave the valve in the LEFT VALVE position before continuing to the next step.
- Page 18 Hyperthermia Pump: Parameters Setting and Preventive Maintenance Measure by using a tachometer: Close the door. Set the pump speed to 10 ml/min. Use a tachometer to measure the rotational speed of the pump head. The accepted tolerance is 1.95 rpm ± 25%. Press PUMP SPEED again to change the pump speed to 100 ml/min.
- Page 19 Hyperthermia Pump: Parameters Setting and Preventive Maintenance Pressure Transducer WARNING! Do not apply excessive pressure to the pressure chamber or pressure transducer. The pressure transducer is a precision electromechanical device and can be damaged with excessive force. Do not use the system if the pressure transducer is damaged. Inspect the pressure transducer for damage.
-
Page 20: Clean The Pump Head
Hyperthermia Pump: Parameters Setting and Preventive Maintenance Clean Pump Head Roller Pump Retaining Screw The pump head can be removed and cleaned if needed. Turn the pump to STANDBY and unplug the power cord. Unscrew the retaining screw that holds the pump head. Remove the pump head and clean with water and soap. -
Page 21: Checklist
Hyperthermia Pump: Parameters Setting and Preventive Maintenance CHECKLIST Hyperthermia Pump Tested By: Date: S/N: Equipment Safety Analyzer S/N: Cal Due Date: Used: Pressure Source S/N: Cal Due Date: Thermometer S/N: Cal Due Date: Tachometer S/N: Cal Due Date: Results Visual Inspection: √... - Page 22 Hyperthermia Pump: Parameters Setting and Preventive Maintenance Electrical Safety Test - Leakage Current Results Sheet Earth Leakage Currents (all measurements are in μA) Polarity - N; Polarity - R; Polarity - R; Polarity - N; Ground - N Ground - N Ground - O Ground - O Unit in STANDBY...
