Installation
6. Drive four supplied mounting screws through the four mounting holes located on the inside surface of the
fireplace chassis, into wall studs. (Figure 5)
7. Complete the wiring according to instructions in the Electrical Installation section (pages 12–13).
8. Complete the installation using the instructions in the following sections: Mirrored Glass Installation (page 15),
Arranging Media (page 15), Front Glass Installation (page 16).

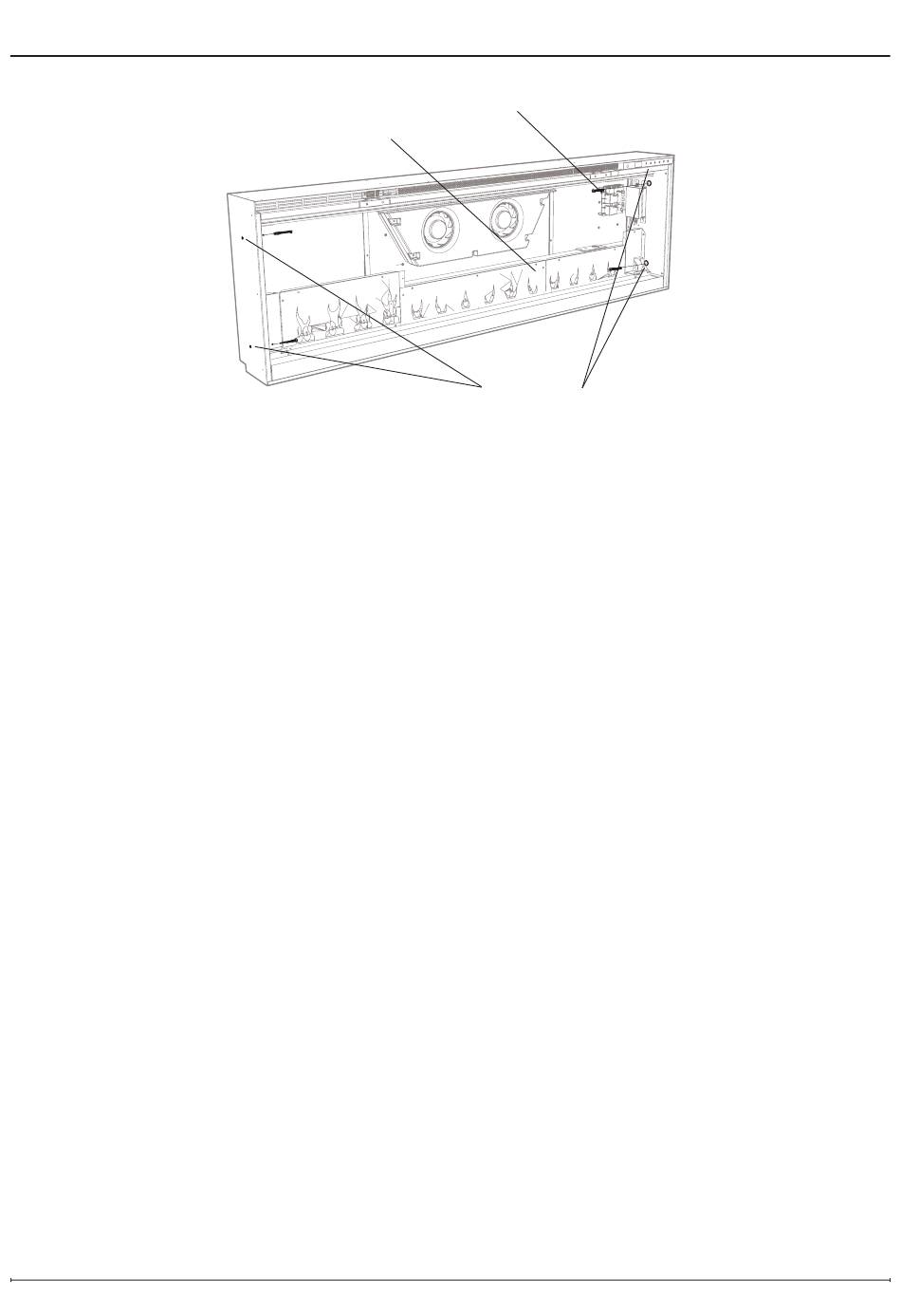

Figure 5
Flame Panel
Main Control Board
Mounting Holes
