Krups XP2070 Manual

English

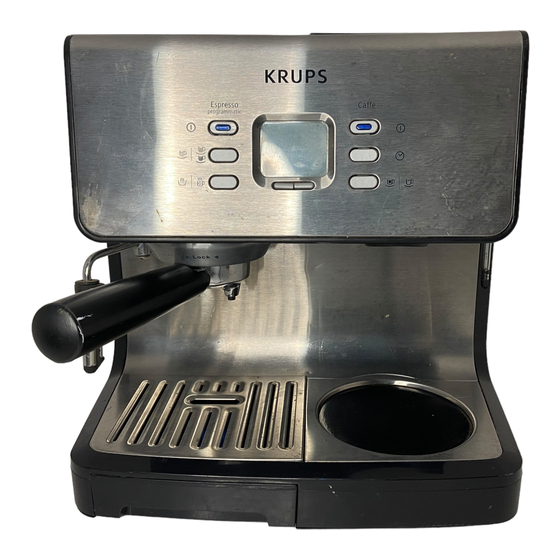

Description
Espresso:
A : Espresso lid with filter storage
B : Removable espresso tank
C : Cup warming plate
D : Brewing head
E : Steam nozzle
F : Cappuccino accessory for frothing milk
G : Drip tray grid
H : Drip tray
I : Filter holder
J : 1 & 2 cup loose espresso filters
K : Espresso filter for ESE pods (Easy Serving
Espresso)
L : "CLARIS" water filter -Aqua
Filter System F088 (accessory not provided)
M : Loose coffee measuring spoon
N : Start / Stop switch for espresso with
temperature control light (blue)
O : 1 and 2 cup espresso selection button
and access to the programmed quantity
per cup: /
P : Steam hot water and selection button:
and
S : Blue lit central display
S1 : Scroll button for setting the time and
choosing the automatic mode for the
coffee maker:
S2 : OK button:
Coffee:
a : Coffee maker lid – access to the tank and
filter holder
b : Coffee maker tank
c : Filter-holder housing
d : Filter holder with carrying handle
e : Calibrated water level indicator for the
coffee maker tank
f : Hinged lid of filter coffee jug
g : Filter coffee jug
h : Coffee warming plate
i : "Duo Filter XS 1000" water filter
(accessory not provided)
j : Start/stop filter coffee switch with blue
operating indicator
XP2070 anglais.P65
and
and
21
k : Selection button for programmable mode
and end-of-cycle sound signal:
l : Selection button for strong or normal
coffee strength: or
Safety recommendations
• Please read these instructions carefully
before first using your espresso.The
appliance must only be connected to the
mains via an earthed plug. Check that the
voltage shown on the appliance's indicator
plate corresponds to that of your electricity
supply. It complies with the requirements of
the EEC Directive (89/336/EEC) and (72/23/
EEC).
• Never put your espresso on a hot surface
(electric warming plate, for example) or close
to a flame. Place on a flat, stable heat-
resistant surface.
• Never remove the filter holder containing
the coffee grounds while water is being
passed through, since the appliance is under
pressure at this time.
• Never use the appliance if the drip tray and
the drip tray grid are not in position.
• Disconnect the electricity if there is any
problem while the coffee is brewing or prior
to cleaning your appliance.
• Never unplug the appliance by pulling on
the cord and never lay the cord across a
sharp edge or the corner of an item of
furniture.
• Do not allow the cord or your hands to
come into contact with the hot parts of the
appliance (cup warming plate, filter holder,
steam nozzle, cappuccino accessory).
• Never immerse the appliance in water.
• Keep away from children and do not allow
the cord to hang down.
• Follow the instructions given for descaling.
• Never start the machine if it is damaged or
not operating correctly or if the cord is in
poor condition.
• If the cord or any other specific part
becomes defective, these can only be
replaced by a Krups approved service centre.
You must never, under any circumstances,
open the appliance yourself, in order to
avoid any danger.
