Summary of Contents for MINN KOTA TERROVA 55

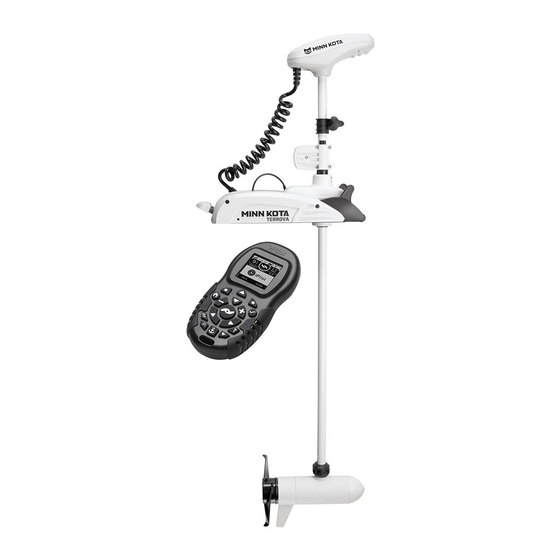

- Page 1 "N" serial numbers TERROVA 55 55 LBS THRUST 2-year warranty 12 VOLT 50 AMPS 45”, 48” OR 54” SHAFT...

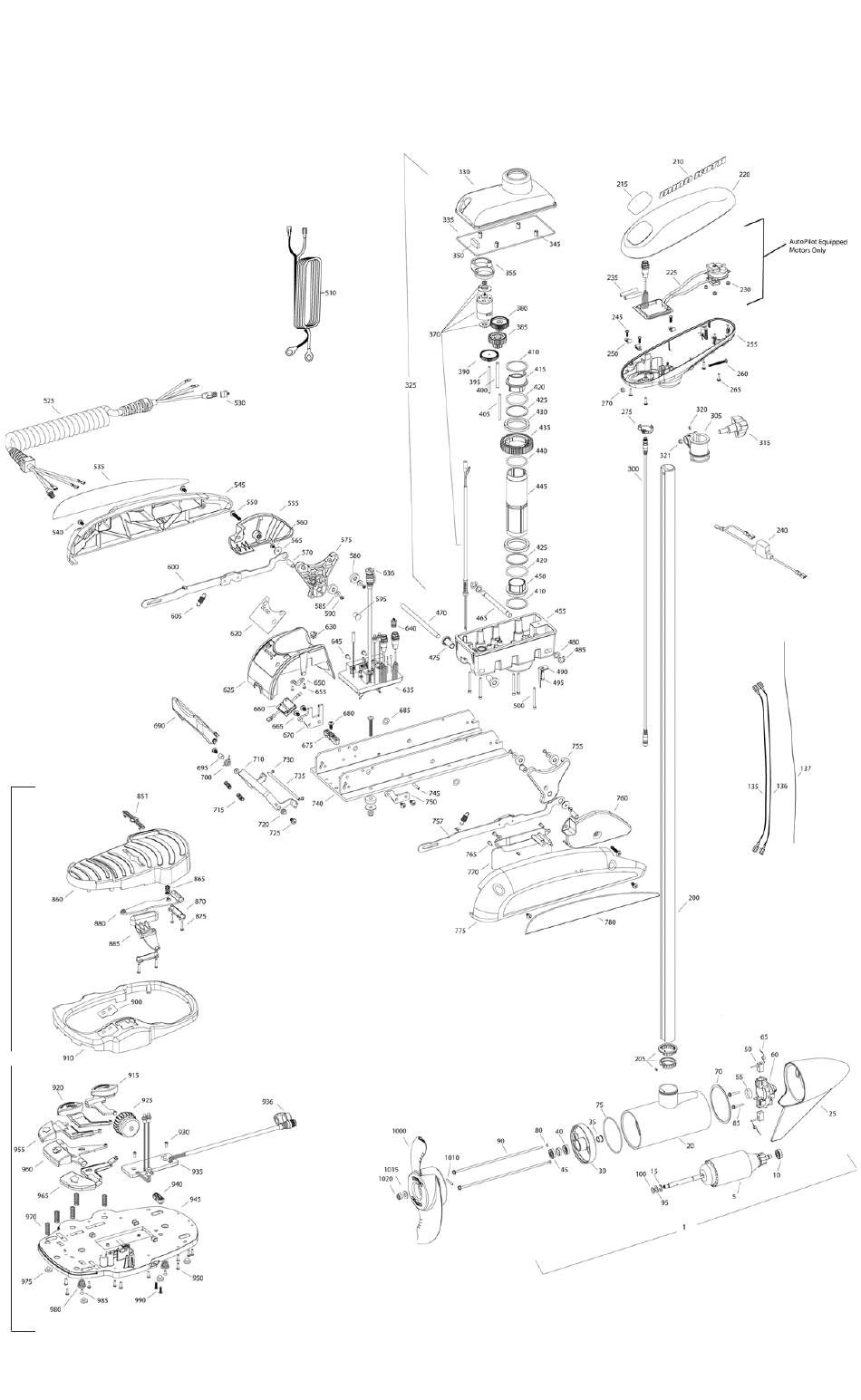

- Page 2 Item Description Item Description Item Description Item Description 2779021 12V Motor 54” FW 2323102 Nut (included in #305) 2325650 Decal, speed control 2323700 Button, steer, left 2779020 12V Motor 48” FW 2997050 Steering housing 2320210 Cover, speed control 2323705 Button, momentary 2779023 12V Motor US2 54”...
- Page 3 Wiring diagram for board p/n 2324016 (see next page for 2324018) THIS IS A UNIVERSAL MULTI-VOLTAGE DIAGRAM. DOUBLE CHECK YOUR MOTORS VOLTAGE FOR PROPER CONNECTIONS. Terrova 55 is 12-volt only! ACCESSORY PLUG STEERING MOTOR/ PRISE D’ACCESSOIRE BATTERY GAUGE/ RED/ROUGE MOTEUR DE DIRECTION VOLTMéTRE...
- Page 4 Wiring diagram for board p/n 2324018 (see prior page for 2324016) THIS IS A UNIVERSAL MULTI-VOLTAGE DIAGRAM. DOUBLE CHECK YOUR MOTORS VOLTAGE FOR PROPER CONNECTIONS Terrova 55 is 12-volt only! CONTROL BOARD/ CARTE DE COMMANDE ACCESSORY PLUG STEERING MOTOR BATTERY GAUGE...
- Page 5 TERROVA 80 for use with "N" serial numbers 80 LBS THRUST 2-year warranty 24 VOLT 45”, 54” OR 60” SHAFT...
- Page 6 Item Description Item Description Item Description Item Description 2777002 24V Motor 60” FW 2224702 Plug, ctrl box 2325115 Pad, rubber rest 2320100 Knob, speed, foot pedal 2777001 24V Motor 54” FW 2211415 Universal sonar 2 extension cable 2321706 Washer, #8 2332103 Screw, 6-20 x .375 2777000...
- Page 7 Wiring diagram for board p/n 2324017 (see next page for 2324019) THIS IS A UNIVERSAL MULTI-VOLTAGE DIAGRAM. DOUBLE CHECK YOUR MOTORS VOLTAGE FOR PROPER CONNECTIONS. Terrova 80 is 24-volt only! ACCESSORY PLUG STEERING MOTOR/ PRISE D’ACCESSOIRE BATTERY GAUGE/ RED/ROUGE MOTEUR DE DIRECTION VOLTMéTRE WHITE/BLANC BLACK/NOIR...
- Page 8 Wiring diagram for board p/n 2324019 (see prior page for 2324017) THIS IS A UNIVERSAL MULTI-VOLTAGE DIAGRAM. DOUBLE CHECK YOUR MOTORS VOLTAGE FOR PROPER CONNECTIONS Terrova 80 is 24-volt only! CONTROL BOARD/ CARTE DE COMMANDE ACCESSORY PLUG STEERING MOTOR BATTERY GAUGE WHITE BLACK COMPASS...
