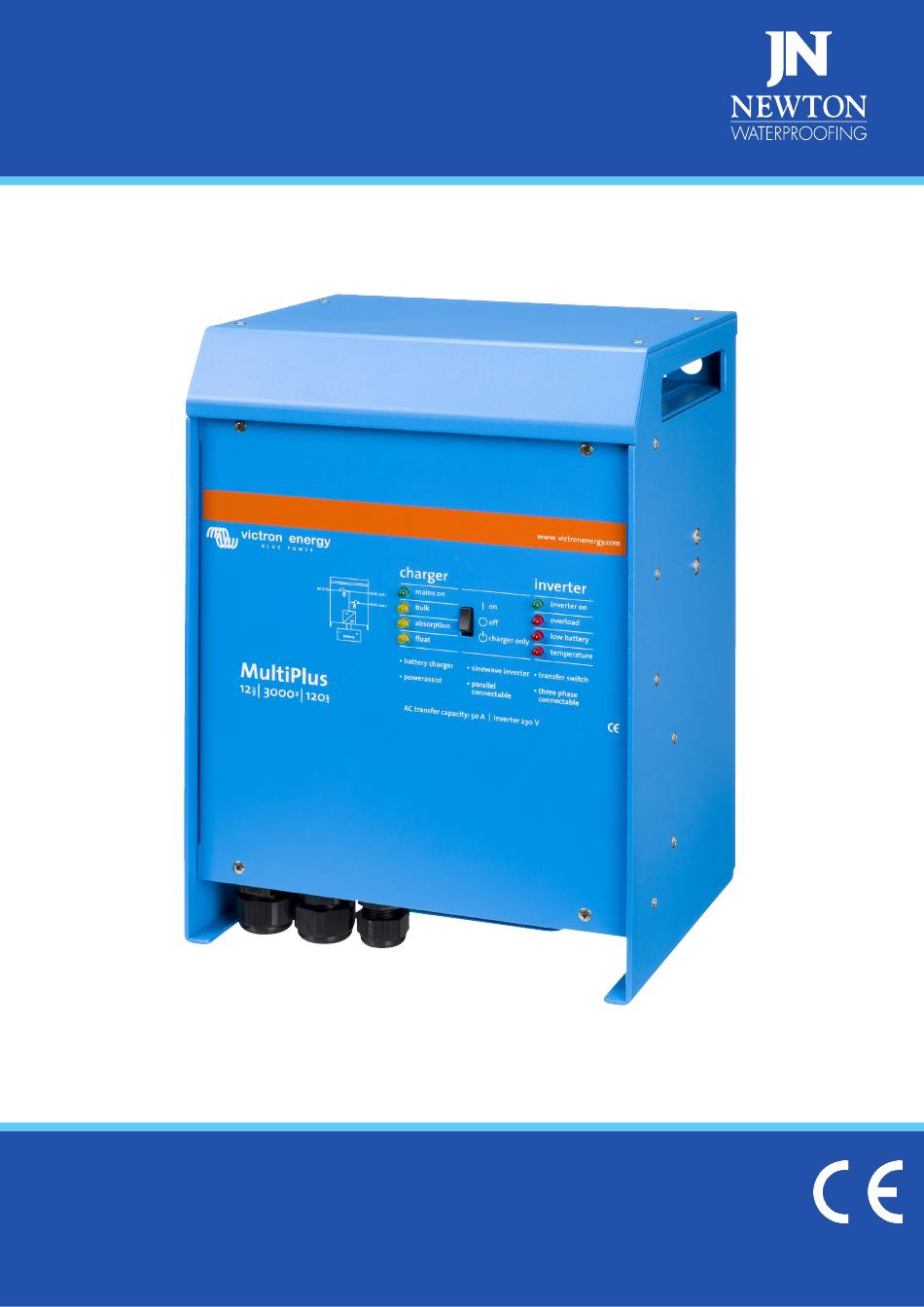

- Page 1 ® System Sump and Pump VICTRON MULTIPLUS 12/3000/120 - Advanced Battery Backup System NEWTON SYSTEM 500 Operational Manual Rev 2.1 - 12 October 2017 © Newton Waterproofing Systems...
-
Page 2: Table Of Contents
12V DC power from a battery (or multiple batteries) to INFORMATION clean and efficient 230V power. The MultiPlus is an extremely powerful pure sine wave inverter, a sophisticated battery charger and automatic switch in a compact casing that features adaptive charge technology and a high-speed AC transfer switch. DIMENSIONS... -
Page 3: Information
If a control panel is not used, the pumps will be automatic versions and each pump will have just one cable coming up from the conduit. Connect pump 1 directly to the mains and pump 2 to the MultiPlus. -
Page 4: Installation
Please refer to product data sheets before installation of our products. Newton Waterproofing Systems reserves the right to update drawings. • Do not place the battery directly below the Victron MultiPlus NEWTON INSTALLATION ®... -
Page 5: Quick Install Guide
Complete the fix by screwing the bottom of the MultiPlus to the wall via the bottom 2 holes using the screws provided. Carefully mark out the hole centres, then take the MultiPlus off the wall to drill the holes. -
Page 6: Optional Connections
On delivery, the MultiPlus is set to standard factory values ready for use as part of a Newton Pumping System with charging voltages set for the three batteries supplied by Newton Waterproofing Systems for use within Power is interrupted. Pumps are powered by the batteries through Power is interrupted. -
Page 7: Technical Data
The battery is not Poor battery connection Check the battery connections completely charged The charger does not MultiPlus is in “Bulk protection” mode, Check your batteries. operate. thus, the maximum bulk charging time NOTE: You can reset the error mode by of 10 hours is exceeded.
