mWing
Installation and assembly
2
1

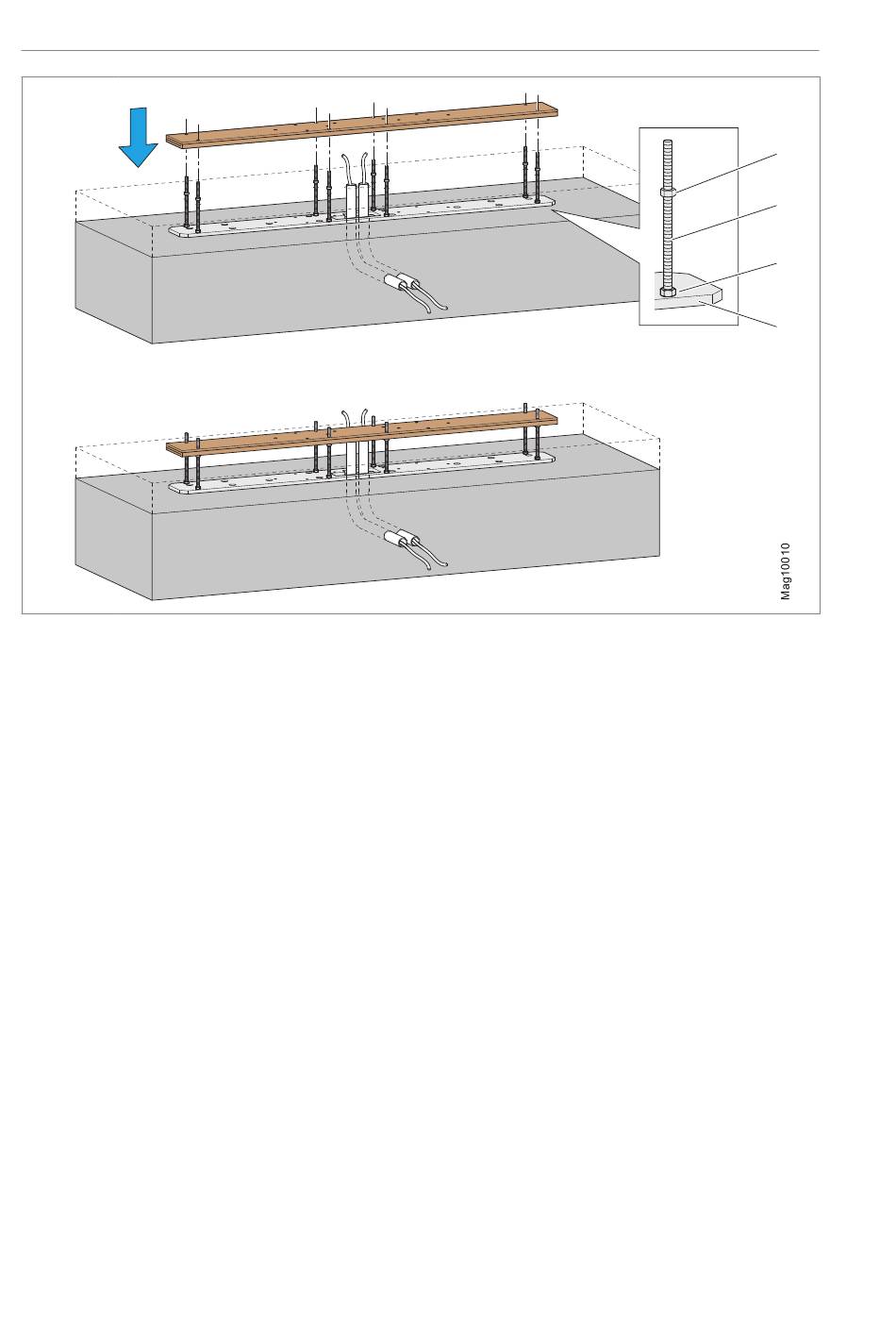

Fig. 16:
1 Foundation / raw floor
2 Planned finished floor
3 Drilling template
4 Nut M8, slightly above the planned finished floor
5 Threaded rods M8 x 210, stainless steel
6 Nut M8
7 Base plate
46
3
Mounting and preparing the base plate
4
5
6
7
