mWing
Installation and assembly

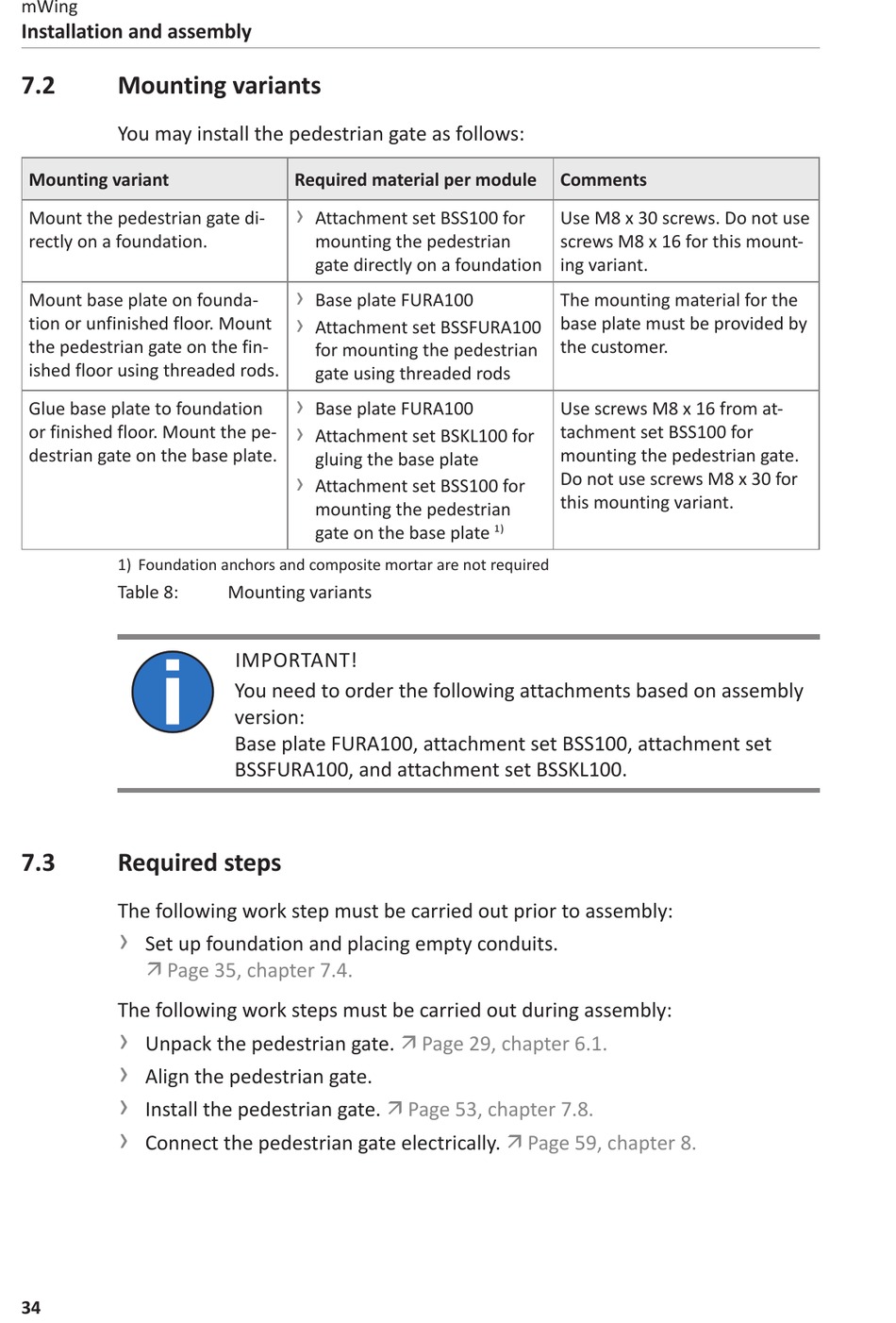

7.2
Mounting variants
You may install the pedestrian gate as follows:
Mounting variant
Mount the pedestrian gate di-
rectly on a foundation.
Mount base plate on founda-
tion or unfinished floor. Mount
the pedestrian gate on the fin-
ished floor using threaded rods.
Glue base plate to foundation
or finished floor. Mount the pe-
destrian gate on the base plate.
1) Foundation anchors and composite mortar are not required
Table 8:
7.3
Required steps
The following work step must be carried out prior to assembly:
›
Set up foundation and placing empty conduits.
ä Page 35, chapter 7.4.
The following work steps must be carried out during assembly:
›
Unpack the pedestrian gate.
›
Align the pedestrian gate.
›
Install the pedestrian gate.
›
Connect the pedestrian gate electrically.
34
Required material per module
›
Attachment set BSS100 for
mounting the pedestrian
gate directly on a foundation
›
Base plate FURA100
›
Attachment set BSSFURA100
for mounting the pedestrian
gate using threaded rods
›
Base plate FURA100
›
Attachment set BSKL100 for
gluing the base plate
›
Attachment set BSS100 for
mounting the pedestrian
gate on the base plate
Mounting variants
IMPORTANT!
You need to order the following attachments based on assembly
version:
Base plate FURA100, attachment set BSS100, attachment set
BSSFURA100, and attachment set BSSKL100.
ä Page 53, chapter 7.8.
Comments
Use M8 x 30 screws. Do not use
screws M8 x 16 for this mount-
ing variant.
The mounting material for the
base plate must be provided by
the customer.
Use screws M8 x 16 from at-
tachment set BSS100 for
mounting the pedestrian gate.
Do not use screws M8 x 30 for
this mounting variant.
1)
ä Page 29, chapter 6.1.
ä Page 59, chapter 8.
