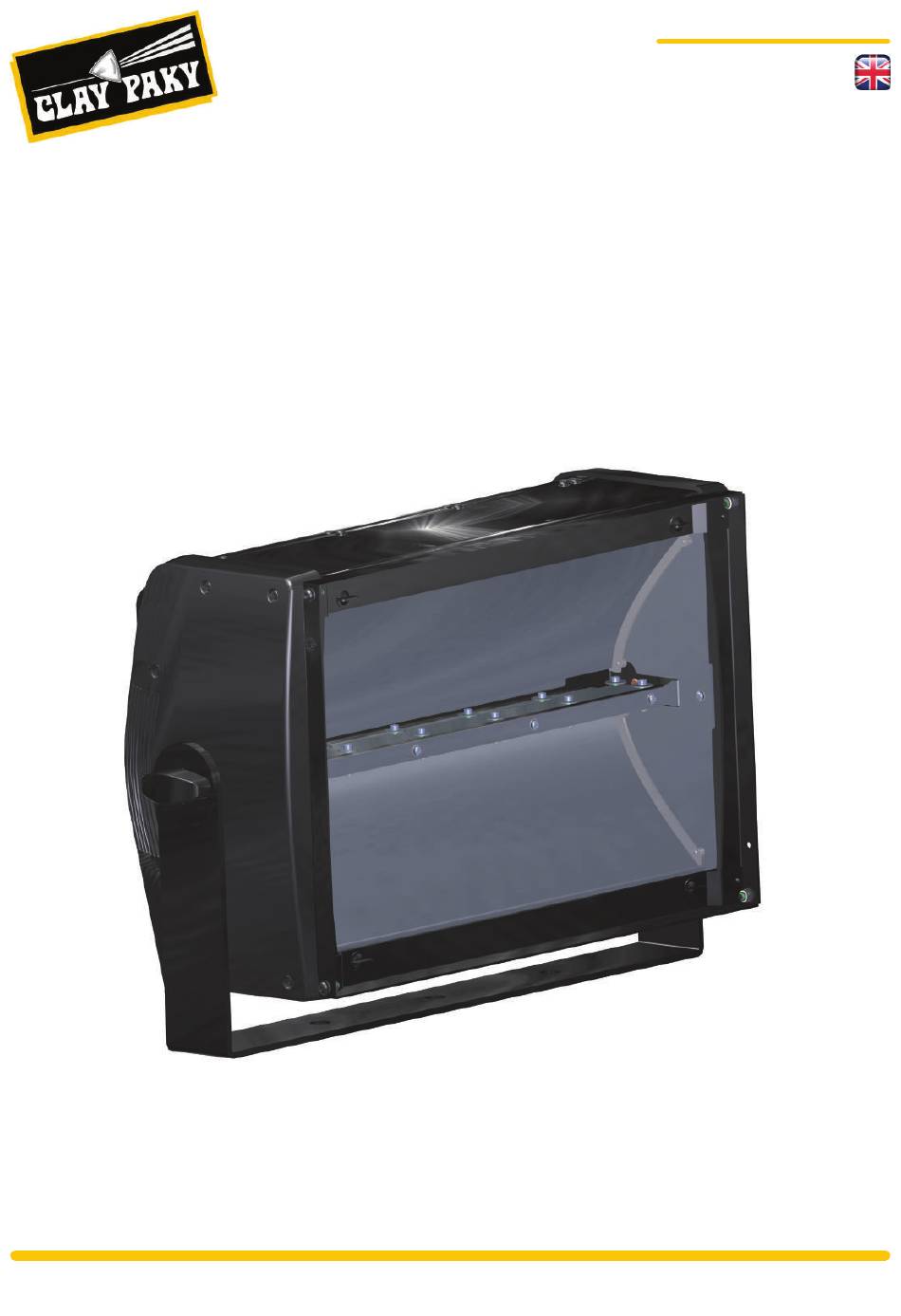

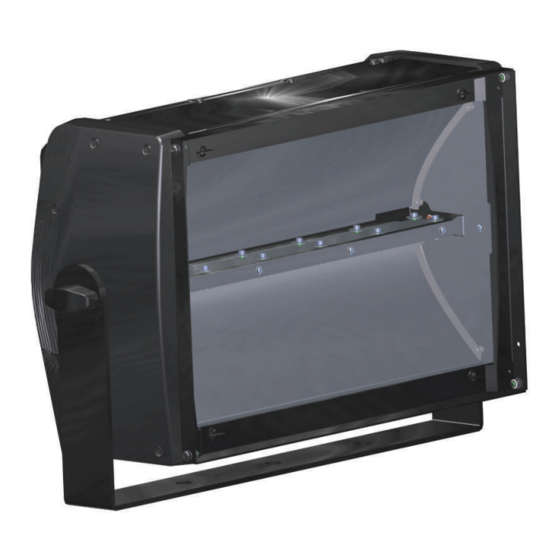

- Page 1 INSTRUCTION MANUAL STORMY AN OSRAM BUSINESS STORMY CC The latest LED technology meets the charm of a classic strobe STORMY C71090 STORMY CC C71091 www.claypaky.it...
-
Page 2: Informazioni Sulla Sicurezza
PRELIMINARY AN OSRAM BUSINESS STORMY STORMY CC The latest LED technology meets the charm of a classic strobe Congratulations on choosing a Clay Paky product! We thank you for your choice. Please note that this product and all the others... -
Page 3: Table Of Contents
CONTENT AN OSRAM BUSINESS STORMY STORMY CC The latest LED technology meets the charm of a classic strobe CONTENTS Pag. 1. Safety Information 1. Informazioni sulla sicurezza 1. Infomations sur la sécurité 1. Informationen zur sicherheit 1. Información sobre la seguridad 2. -
Page 4: Safety Information
STORMY C71090 STORMY CC C71091 SAFETY INFORMATION 1. SAFETY INFORMATION • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secu- red to the framework, so that, if the primary support system fails, the fitting falls as little as possible. -
Page 5: Información Sobre La Seguridad
STORMY C71090 STORMY CC C71091 SAFETY INFORMATION How to get your SAFETY INSTRUCTIONS in multilingual version You may always download the multilingual Safety Instruction manual for this Clay Paky product from: http://www.claypaky.it/en/download Ref: [FIS00N – Safety Information Stormy / Stormy CC] Come ottenere le INFORMAZIONI DI SICUREZZA nella versione multilingue Puoi sempre scaricare la versione multilingue delle Informazioni di Sicurezza per questo prodotto Clay Paky al seguente link:... -
Page 6: Unpacking And Preparation
STORMY C71090 UNPACKING AND STORMY CC C71091 PREPARATION 2. UNPACKING AND PREPARATION Fig. 1 - Packing content... - Page 7 STORMY C71090 INSTALLATION AND STORMY CC C71091 START-UP 3. INSTALLATION AND START-UP Fig. 2 - Projector installation WARNING: the safety lable upon request). This must be secured to the projector support structure and then ho- Continued...
-
Page 8: Installation And Start-Up
STORMY C71090 INSTALLATION AND STORMY CC C71091 START-UP 3. INSTALLATION AND START-UP Fig. 3, 4 - Connecting and disconnecting the power cord... -
Page 9: Control Panel
STORMY C71090 STORMY CC C71091 CONTROL PANEL 4. CONTROL PANEL Power Supply DMX 512 DMX 512 5 PIN Fig. 5 - Connection to the power mains Fig. 6 - Connections to the control signal line (DMX) impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteri- male connectors. - Page 10 STORMY C71090 STORMY CC C71091 CONTROL PANEL 4. CONTROL PANEL STORMY Clay Paky Adress xxx Software release xxx Menu settings status If no button is pressed after a wait period (about 60 seconds) the display automatically returns to idle sta- tus.
-
Page 11: Menu Setting
STORMY C71090 STORMY CC C71091 5. MENU SETTING Main Menu Level 1 Level 2 Level 3 Choices / Values DMX Address 001-512 Standard Xenon SET UP Channel Mod Idependent Extended Fixture ID 001-255 Curve 1 Dimmer Curve Curve 2 Minimum Ton Value 000-255 LED mode (Stormy CC only) -
Page 12: Set Up Menu
STORMY C71090 STORMY CC C71091 5.1 SET-UP MENU SET UP - DMX ADDRESS It allows to set DMX address to be assigned to the projector, it’s possible to select a DMX address between 1 and 512. > NOTE SET UP - CHANNEL MODE It allows to set the operation mode of the projector selecting from the following: •... -
Page 13: Information Menu
STORMY C71090 STORMY CC C71091 OPTIONS - DISPLAY The enabled DISPLAY option (ON) allows to reduce the display backlight on the machine, after a 30 seconds in standby mode. To restart is enough to press any key. Select OFF to disable this option. OPTIONS - SETTING It allows to save in the machine memory 3 different settings of the options menu items and its submenus: •... -
Page 14: Manual Control Menu
STORMY C71090 STORMY CC C71091 INFORMATION MENU - DRIVER DIAGNOSTIC - LED CHANNEL It displays the diagnostics from the driver card: for each of the 4 channels a SYSTEM information and a ERROR information is reported (the decoding is specifed in the driver’s specifcations). INFORMATION MENU - DMX MONITOR It allows to visualize the DMX input level (in bits or as a percentage) of each channel of the projector (value Between 0 and 255 bit or between 0 and 100%). -
Page 15: Maintenance
STORMY C71090 STORMY CC C71091 MAINTENANCE 6. MAINTENANCE 2 Fusibili 6.3 x 32 mm 12AT (p/n FUS001) Fig. 8 - Fuses replacing Each product has 2 fuses associated with the main power cord connection. Continued... - Page 16 STORMY C71090 STORMY CC C71091 MAINTENANCE 6. MAINTENANCE Parts requiring frequent cleaning. Fig. 9 - Periodic cleaning To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The frequency with which the following operations are to be carried out depends on various factors such as wear and the work environment quality (air humidity, dust, salinity, etc.).
-
Page 17: Accessories
STORMY C71090 STORMY CC C71091 ACCESSORIES 7. ACCESSORIES Fig. 10 - Barn-doors - C71116... -
Page 18: Technical Data
TOTAL LUMEN OUTPUT Max 40.000 lm 36x6W (peak power) LED - Type: OSRAM OSLON SIGNAL 120 - RED - LJ CKBP-JXKZ-27-1 36x7W (peak power) LED - Type: OSRAM OSLON SIGNAL 120 - GREEN - LT CQBP-KYLX-36-1 36x8W (peak power) LED - Type: OSRAM OSLON SQUARE LED - BLUE - LD CQAR-APAR-24-1 LIGHT SOURCE 36x8W (peak power) LED - Type: OSRAM OSLON SQUARE LED –... - Page 19 STORMY C71090 STORMY CC C71091 TECHNICAL DATA 7 channels DMX 512 Standard mode CHANNELS 15 channels DMX 512 Extended mode 14 channels DMX 512 Independent mode (to come) CONTROL INPUTS DMX 512 WEIGHT 7,5 Kg (15,87 lbs) IP20 IP RATING Protected against the entry of solid bodies larger than 12mm (0,47”) No protection against the entry of liquids Automatic shut-down in case of power supply overcurrent...
-
Page 20: Channels
STORMY C71090 CHANNELS STORMY - CHANNEL LIST CHANNEL MODE CHANNEL STANDARD XENON INTENSITY INTENSITY DURATION DURATION RATE RATE MACRO STORMY - CHANNEL FUNCTION Channel Mode Function Value Standard Xenon INTENSITY 0 - 5 Light OFF Light output linearly increase from minimum to maximum bright- 6 - 255 ness DURATION... -
Page 21: B Channel List Stormy Cc
STORMY C71091 CHANNELS STORMY CC - CHANNEL LIST CHANNEL MODE CHANNEL STANDARD INDEPENDENT EXTENDED RED INTENSITY RED INTENSITY RED FOREGROUND GREEN INTENSITY RED DURATION GREEN FOREGROUND BLUE INTENSITY RED RATE BLUE FOREGROUND WHITE INTENSITY GREEN INTENSITY WHITE FOREGROUND MASTER INTENSITY GREEN DURATION DIMMER FOREGROUND MASTER DURATION... - Page 22 STORMY CC C71091 CHANNELS STORMY CC - “INDIPENDENT” CHANNEL FUNCTION Channel Mode Function Value Independent RED INTENSITY 0 - 255 Red colour linearly increase from no-light to maximum intensity RED DURATION Light time (versus dark time) linearly increases from shorter time (2.5msec) to longer time (650msec) See details in a following dedicated table.
- Page 23 STORMY CC C71091 CHANNELS Channel Mode Function Value Independent WHITE INTENSITY 0 - 255 White colour linearly increase from no-light to maximum intensity WHITE DURATION Light time (versus dark time) linearly increases from shorter time (2.5msec) to longer time (650msec) See details in a following dedicated table.
- Page 24 STORMY CC C71091 CHANNELS STORMY CC - “EXTENDED” CHANNEL FUNCTION Channel Mode Function Value Extended RED FOREGROUND Red Foreground Colour linearly increase from no-light to maximum 0 - 255 intensity GREEN FOREGROUND Green Foreground Colour linearly increase from no-light to maxi- 0 - 255 mum intensity BLUE FOREGROUND...
- Page 25 STORMY CC C71091 CHANNELS Channel Mode Function Value Extended BLUE BACKGROUND Blue Background Colour linearly increase from no-light to maximum 0 - 255 intensity WHITE BACKGROUND White Background Colour linearly increase from no-light to maxi- 0 - 255 mum intensity DIMMER BACKGROUND 0 - 5 No Light output...
-
Page 26: Duration Channels Details
STORMY C71090 STORMY CC C71091 CHANNELS 9.3 DURATION CHANNEL DETAILS Time Time Time Time Time Time level [msec] level [msec] level [msec] level [msec] level [msec] level [msec] 2.50 111.7 220.8 330.0 439.2 548.4 5.00 114.2 223.4 332.6 441.7 550.9 7.60 116.7 225.9... -
Page 27: Rete Channels Details
STORMY C71090 STORMY CC C71091 CHANNELS 9.4 RATE CHANNEL DETAILS Time Frequency Time Frequency Time Frequency level [msec] level [msec] level [msec] 350.0 2.86 168.0 5.95 336.0 2.98 166.0 6.02 330.0 3.03 164.0 6.10 320.0 3.13 162.0 6.17 315.0 3.17 160.0 6.25 310.0... - Page 28 STORMY C71090 STORMY CC C71091 CHANNELS 9.4 RATE CHANNEL DETAILS Time Frequency Time Frequency Time Frequency level [msec] level [msec] level [msec] 109.0 9.17 81.5 12.27 65.1 15.36 110.0 9.09 81.0 12.35 64.8 15.43 109.5 9.13 80.5 12.42 64.5 15.50 9.17 80.0 12.50...
-
Page 29: Duration Time - Rate Time (Period) Relation
STORMY C71090 Duration Time STORMY CC C71091 Rate Time (Period) Relation 10. DURATION time - RATE time (PERIOD) relation Period (Rate time) Duration MAX CURRENT vs DUTY CYCLE Current CURRENT VALUES SUBMAX CONT RED: 2.0A RED: 1.5A RED: 1.0A GREEN: 2.0A GREEN: 1.5A GREEN: 1.0A BLUE: 2.4A...
