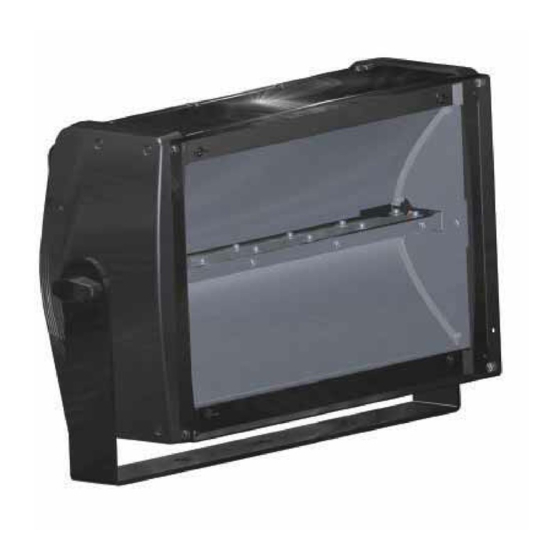

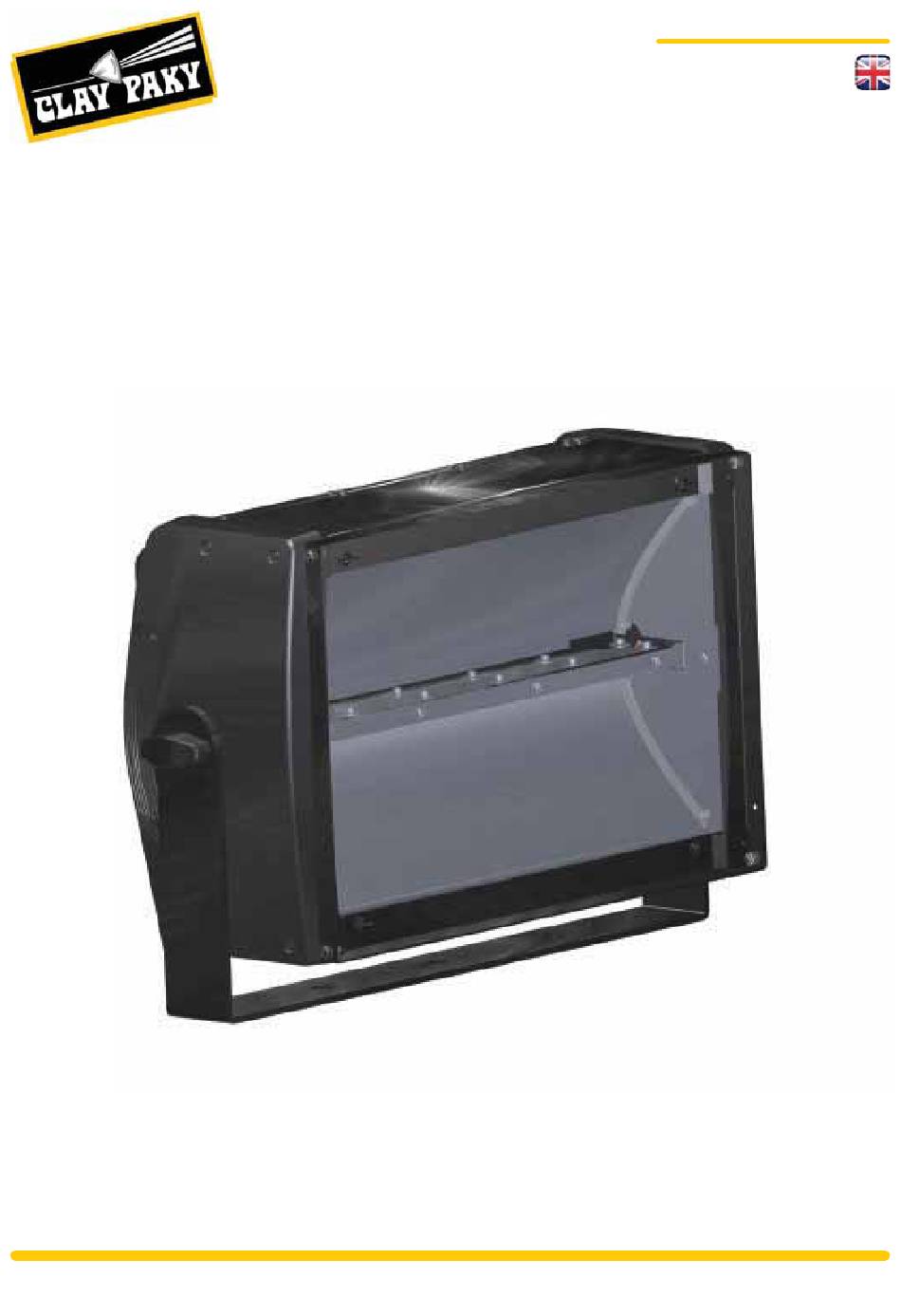

- Page 1 INSTRUCTION MANUAL STORMY AN OSRAM BUSINESS STORMY CC The latest LED technology meets the charm of a classic strobe STORMY C71090 STORMY CC C71091 www.claypaky.it...
-
Page 2: Informazioni Sulla Sicurezza
PRELIMINARY AN OSRAM BUSINESS STORMY STORMY CC The latest LED technology meets the charm of a classic strobe Congratulations on choosing a Clay Paky product! We thank you for your choice. Please note that this product and all the others... -
Page 3: Table Of Contents
CONTENT AN OSRAM BUSINESS STORMY STORMY CC The latest LED technology meets the charm of a classic strobe CONTENTS Pag. 1. Safety Information 1. Informazioni sulla sicurezza 1. Infomations sur la sécurité 1. Informationen zur sicherheit 1. Informaci n sobre la seguridad Ó... -
Page 4: Safety Information
STORMY C71090 STORMY CC C71091 SAFETY INFORMATION 1. SAFETY INFORMATION • Installation safety chain gets used, it needs to be replaced with a genuine spare. • Minimum distance of illuminated objects • Maximum ambient temperature • IP20 protection rating • Protection against electrical shock •... -
Page 5: Informaci Ó N Sobre La Seguridad
STORMY C71090 STORMY CC C71091 SAFETY INFORMATION How to get your SAFETY INSTRUCTIONS in multilingual version Come ottenere le INFORMAZIONI DI SICUREZZA nella versione multilingue So erhalten Sie Ihr INFORMATIONEN ZUR SICHERHEIT in der mehrsprachigen Version Cómo obtener tu INFORMACIONES DE SEGURIDAD en la versión multilingüe Paky en el siguiente enlace Comment obtenir votre CONSIGNES DE SÉCURITÉ... -
Page 6: Unpacking And Preparation
STORMY C71090 UNPACKING AND STORMY CC C71091 PREPARATION 2. UNPACKING AND PREPARATION Fig. 1 - Packing content... - Page 7 STORMY C71090 INSTALLATION AND STORMY CC C71091 START-UP 3. INSTALLATION AND START-UP Fig. 2 - Projector installation WARNING: the safety lable upon request). This must be secured to the projector support structure and then ho- Continued...
-
Page 8: Installation And Start-Up
STORMY C71090 INSTALLATION AND STORMY CC C71091 START-UP 3. INSTALLATION AND START-UP Fig. 3, 4 - Connecting and disconnecting the power cord... -
Page 9: Control Panel
STORMY C71090 STORMY CC C71091 CONTROL PANEL 4. CONTROL PANEL Power Supply DMX 512 DMX 512 5 PIN Fig. 5 - Connection to the power mains Fig. 6 - Connections to the control signal line (DMX) impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteri- IMPORTANT nectors. - Page 10 STORMY C71090 STORMY CC C71091 CONTROL PANEL 4. CONTROL PANEL STORMY Clay Paky Adress xxx Software release xxx Menu settings status tus. Button functions – Menu SET SELECT tings. DOWN key while holding down the DOWN key. DOWN key while holding down the UP key. ENTER next menu.
-
Page 11: Menu Setting
STORMY C71090 STORMY CC C71091 5. MENU SETTING Main Menu Level 1 Level 2 Level 3 DMX Address 001-512 Standard Xenon SET UP Channel Mod Idependent Extended Fixture ID 001-255 000-255 LED mode (Stormy CC only) Balance Standard Silent Mode Quiet OPTION Display... -
Page 12: Set Up Menu
STORMY C71090 STORMY CC C71091 5.1 SET-UP MENU SET UP - DMX ADDRESS 1 and 512. > NOTE SET UP - CHANNEL MODE • Standard: • Xenon • Independent • Extended SET UP - FIXTURE ID 5.2 OPTIONS MENU OPTION - DIMMER CURVE •... -
Page 13: Information Menu
STORMY C71090 STORMY CC C71091 OPTIONS - DISPLAY in standby mode. To restart is enough to press any key. Select OFF to disable this option. OPTIONS - SETTING • User preset 1 • User preset 2 • User preset 3 - Load preset 1, 2 o 3 - Save to preset 1, 2 o 3 •... -
Page 14: Manual Control Menu
STORMY C71090 STORMY CC C71091 LED CHANNEL INFORMATION MENU - DMX MONITOR INFORMATION MENU - FANS MONITOR RPM Speed Head = Power Supply fans. 5.4 MANUAL CONTROL MENU MANUAL CONTROL - RESET MANUAL CONTROL - CHANNEL 5.5 ADVANCED MENU To access to the Advanced menu (only recommended for experienced users), you need to set the access code 1234. -
Page 15: Maintenance
STORMY C71090 STORMY CC C71091 MAINTENANCE 6. MAINTENANCE 2 Fusibili 6.3 x 32 mm 12AT Fig. 8 - Fuses replacing Each product has 2 fuses associated with the main power cord connection. Continued... - Page 16 STORMY C71090 STORMY CC C71091 MAINTENANCE 6. MAINTENANCE Parts requiring frequent cleaning. Fig. 9 - Periodic cleaning To ensure optimal operation and performance for a long time it is essential to periodically clean the any liquid glass cleaning detergent. • General cleaning of internal parts. IMPORTANT: Cleaning transparent cover...
-
Page 17: Accessories
STORMY C71090 STORMY CC C71091 ACCESSORIES 7. ACCESSORIES Fig. 10 - Barn-doors - C71116... -
Page 18: Technical Data
STORMY C71090 STORMY CC C71091 TECHNICAL DATA 8.1/A TECHNICAL DATA _ STORMY POWER SUPPLIES Automatic power supply INPUT POWER TOTAL LUMEN OUTPUT Max 80.000 lm LIGHT SOURCE 3 channels DMX 512 Standard mode CHANNELS 4 channels DMX 512 Xenon mode CONTROL INPUTS DMX 512 WEIGHT... - Page 19 STORMY C71090 STORMY CC C71091 TECHNICAL DATA 7 channels DMX 512 Standard mode CHANNELS 15 channels DMX 512 Extended mode CONTROL INPUTS DMX 512 WEIGHT IP20 IP RATING No protection against the entry of liquids SAFETY DEVICES system COOLING Body extruded in black anodized aluminum BODY Any working position WORKING POSITION...
-
Page 20: Channels
STORMY C71090 CHANNELS STORMY - CHANNEL LIST CHANNEL MODE CHANNEL STANDARD XENON INTENSITY INTENSITY DURATION DURATION RATE RATE MACRO STORMY - CHANNEL FUNCTION Channel Mode Function Value Standard Xenon INTENSITY 0 - 5 Light OFF Light output linearly increase from minimum to maximum bright- 6 - 255 ness DURATION... -
Page 21: B Channel List Stormy Cc
STORMY CC C71091 CHANNELS STORMY CC - CHANNEL LIST CHANNEL MODE CHANNEL STANDARD INDEPENDENT EXTENDED RED INTENSITY RED INTENSITY RED FOREGROUND GREEN INTENSITY RED DURATION GREEN FOREGROUND BLUE INTENSITY RED RATE BLUE FOREGROUND GREEN INTENSITY MASTER INTENSITY GREEN DURATION DIMMER FOREGROUND MASTER DURATION GREEN RATE MASTER DURATION... - Page 22 STORMY CC C71091 CHANNELS STORMY CC - “INDIPENDENT” CHANNEL FUNCTION Channel Mode Function Value Independent RED INTENSITY 0 - 255 Red colour linearly increase from no-light to maximum intensity RED DURATION See details in a following dedicated table. 0 - 255 is continuously on.
- Page 23 STORMY CC C71091 CHANNELS Channel Mode Function Value Independent WHITE INTENSITY 0 - 255 White colour linearly increase from no-light to maximum intensity WHITE DURATION See details in a following dedicated table. 0 - 255 is continuously on WHITE RATE 0 - 5 6 - 255 See details in a following dedicated table.
- Page 24 STORMY CC C71091 CHANNELS STORMY CC - “EXTENDED” CHANNEL FUNCTION Channel Mode Function Value Extended RED FOREGROUND Red Foreground Colour linearly increase from no-light to maximum 0 - 255 intensity GREEN FOREGROUND Green Foreground Colour linearly increase from no-light to maxi- 0 - 255 mum intensity BLUE FOREGROUND...
- Page 25 STORMY CC C71091 CHANNELS Channel Mode Function Value Extended BLUE BACKGROUND Blue Background Colour linearly increase from no-light to maximum 0 - 255 intensity WHITE BACKGROUND White Background Colour linearly increase from no-light to maxi- 0 - 255 mum intensity DIMMER BACKGROUND 0 - 5 No Light output...
-
Page 26: Duration Channels Details
STORMY C71090 STORMY CC C71091 CHANNELS 9.3 DURATION CHANNEL DETAILS Time Time Time Time Time Time level msec level msec level msec level msec level msec level msec 2.50 111.7 220.8 330.0 439.2 548.4 5.00 114.2 223.4 332.6 441.7 550.9 7.60 116.7 225.9... -
Page 27: Rete Channels Details
STORMY C71090 STORMY CC C71091 CHANNELS 9.4 RATE CHANNEL DETAILS Time Frequency Time Frequency Time Frequency level msec level msec level msec 350.0 2.86 168.0 5.95 336.0 2.98 166.0 6.02 330.0 3.03 164.0 6.10 320.0 3.13 162.0 6.17 315.0 3.17 160.0 6.25 310.0... - Page 28 STORMY C71090 STORMY CC C71091 CHANNELS 9.4 RATE CHANNEL DETAILS Time Frequency Time Frequency Time Frequency level msec level msec level msec 109.0 9.17 81.5 12.27 65.1 15.36 110.0 9.09 81.0 12.35 64.8 15.43 109.5 9.13 80.5 12.42 64.5 15.50 9.17 80.0 12.50...
-
Page 29: Duration Time - Rate Time (Period) Relation
STORMY C71090 Duration Time STORMY CC C71091 Rate Time (Period) Relation 10. DURATION time - RATE time (PERIOD) relation Period Rate time Duration time Duration time < Period : Flashing Duration time >= Period : Light continuously ON MAX CURRENT vs DUTY CYCL E MAX CURRENT v s TIME ON Current Current...
