Vendor: S000145
ASSEMBLY INSTRUCTIONS

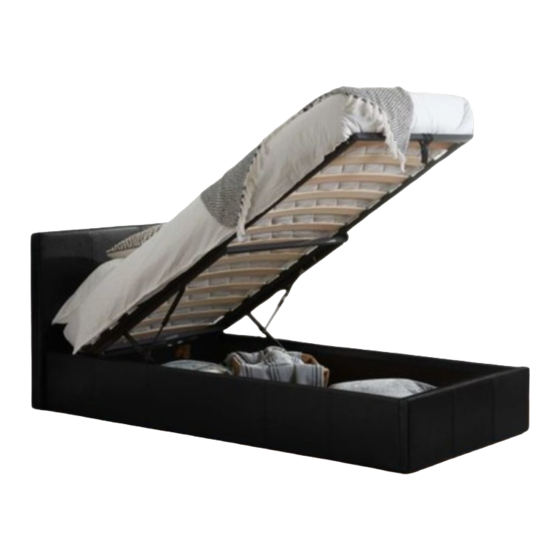

BERLIN OTTOMAN 3' BED
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR BERLIN
OTTOMAN 3' BED FRAME.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HEALTH & SAFETY:
DO NOT jump on this bed frame.
DO NOT use this bed frame if any parts are missing, damaged or worn.
DO NOT use this bed frame unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
WARNING: If this bed is placed on a non-carpeted floor you must place some protection under all legs to stop
the bed frame from moving. If this is not adhered to there is no guarantee if the bed frame collapses.
CARE & MAINTENANCE:
Assemble in the room of use.
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the bed frame as this will damage the legs.
Always lift the bed with two people to reposition.
Keep any sharp objects away from the frame.
www.birlea.com
Page 1 of 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Birlea BERLIN OTTOMAN 3' BED
Summary of Contents for Birlea BERLIN OTTOMAN 3' BED
- Page 1 Periodically check all screws & fixings to ensure they are secure. DO NOT push the bed frame as this will damage the legs. Always lift the bed with two people to reposition. Keep any sharp objects away from the frame. www.birlea.com Page 1 of 5...
- Page 2 Vendor: S000145 Parts List Hardware List (found in box 2) Part Description Part Description Footend M5 Allen Key Headend M8 x 30 mm Bolt Side Rail Left M8 Spring Washer Side Rail Right M8 x 22 mm Flat Washer Crossbar M8 x 14 mm Nut Corner Bracket M14 Spanner...
- Page 3 Vendor: S000145 Step 1: Fix the left side rail (4) and right side rail (5) to the headend (3) and footend (2) using hardware parts A, B, C and D. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Attach the corner brackets (7) using hardware part G and H.
- Page 4 Vendor: S000145 Step 3: Attach the metal frame (9) to the gas lifts pre-fixed to the side rails using hardware parts A, E, F and J. Insert the metal hook (11). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 4: To attach the pull strap (12) place it beneath the frame, then pull the strap on the inner side of the frame through the strap on the outer side to form a knot.
- Page 5 • If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. • Why don’t you send us photos of your assembled furniture to info@birlea.com...
